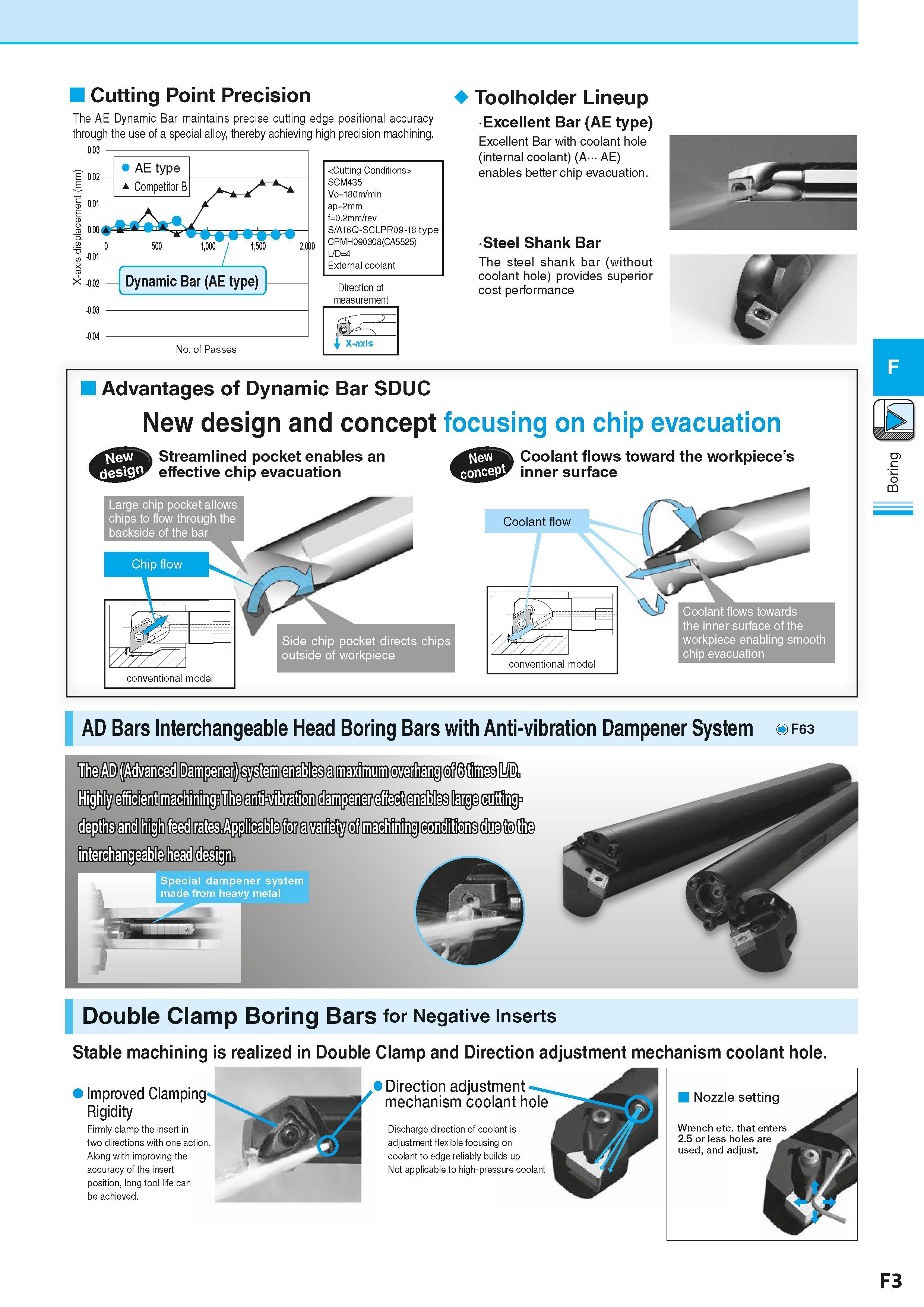

Cutting Point Precision The AE Dynamic Bar maintains precise cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining. 0.03 2,) )0 SCM435 Vc=180m/min ap=2mm f=0.2mm/rev S/A16Q-SCLPR09-18 type CPMH090308(CA5525) L/D=4 External coolant Direction of measurement Toolholder Lineup Excellent Bar (AE type) Excellent Bar with coolant hole (internal coolant) (A - AE) enables better chip evacuation. Steel Shank Bar The steel shank bar (without coolant hole) provides superior cost performance No. of Passes Advantages of Dynamic Bar SDUC New design and concept focusing on chip evacuation Streamlined pocket enables an effective chip evacuation Coolant flows toward the workpiece’s inner surface Large chip pocket allows chips to flow through the backside of the bar Chip flow \ r /VV7, conventional model Coolant flow Side chip pocket directs chips outside of workpiece Coolant flows towards the inner surface of the workpiece enabling smooth chip evacuation AD Bars Interchangeable Head Boring Bars with Anti-vibration Dampener System F63 I Double Clamp Boring Bars for Negative Inserts Stable machining is realized in Double Clamp and Direction adjustment mechanism coolant hole. Improved Clamping Rigidity Firmly clamp the insert in two directions with one action Along with improving the accuracy of the insert position, long tool life can be achieved. Direction adjustment mechanism coolant hole Discharge direction of coolant is adjustment flexible focusing on coolant to edge reliably builds up Not applicable to high-pressure coolant Nozzle setting Wrench etc. that enters 2.5 or less holes are used, and adjust. F3 Boring
