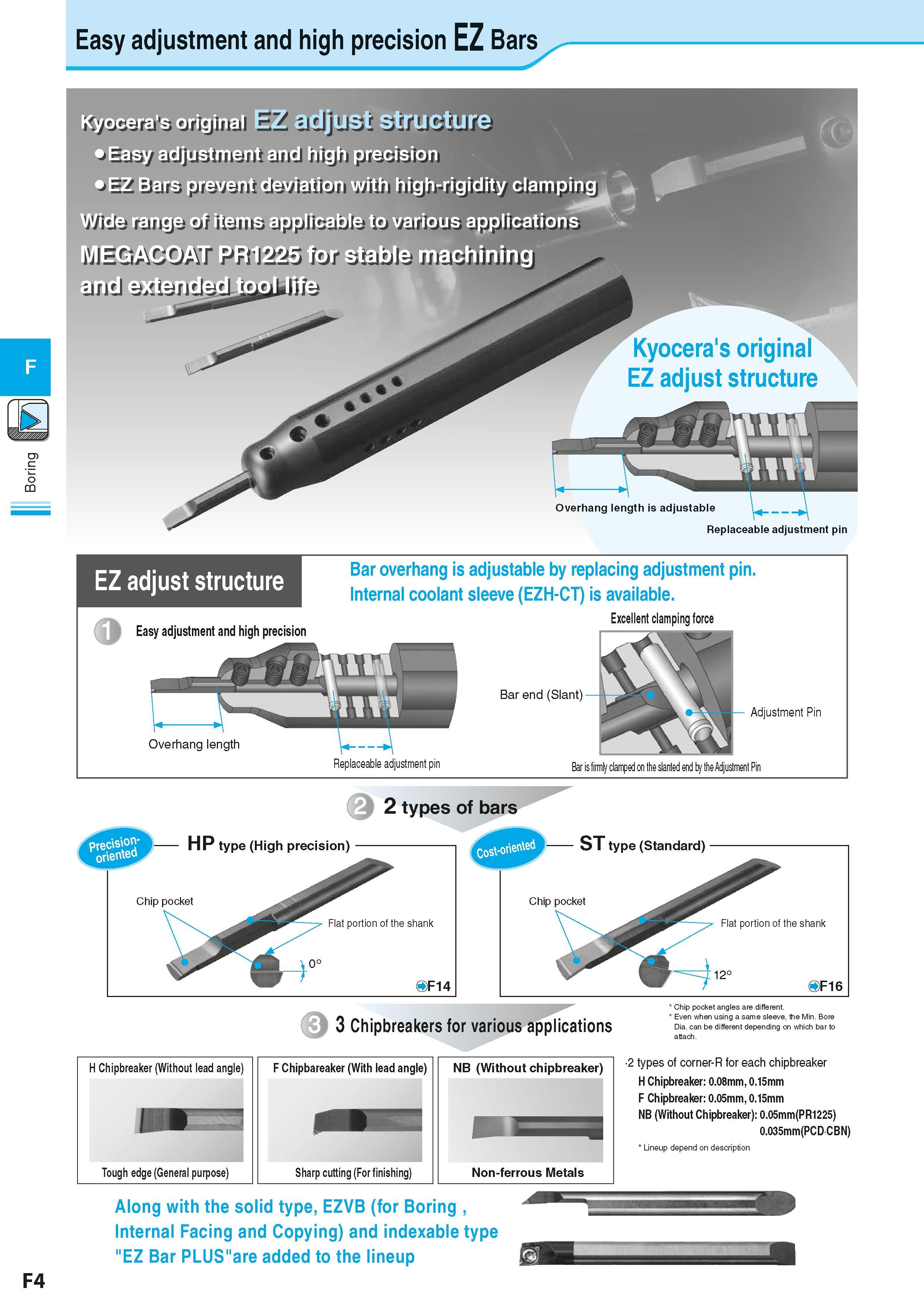

Boring Easy adjustment and high precision EZ Bars EZ adjust structure Easy adjustment and high precision Bar overhang is adjustable by replacing adjustment pin. Internal coolant sleeve (EZH-CT) is available. Excellent clamping force Overhang length Replaceable adjustment pin 2 types of bars HP type (High precision) Chip pocket Flat portion of the shank 3F14 3 Chipbreakers for various applications H Chipbreaker (Without lead angle) Tough edge (General purpose) F Chipbareaker (With lead angle) Sharp cutting (For finishing) NB (Without chipbreaker) Non-ferrous Metals Chip pocket angles are different. Even when using a same sleeve, the Min. Bore Dia. can be different depending on which bar to attach. 2 types of corner-R for each chipbreaker H Chipbreaker: 0.08mm, 0.15mm F Chipbreaker: 0.05mm, 0.15mm NB (Without Chipbreaker): 0.05mm(PR1225) 0.035mm(PCDCBN) Lineup depend on description Along with the solid type, EZVB (for Boring Internal Facing and Copying) and indexable type "EZ Bar PLUS"are added to the lineup F4
