262 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.E48

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. E48 0262 Lab2u

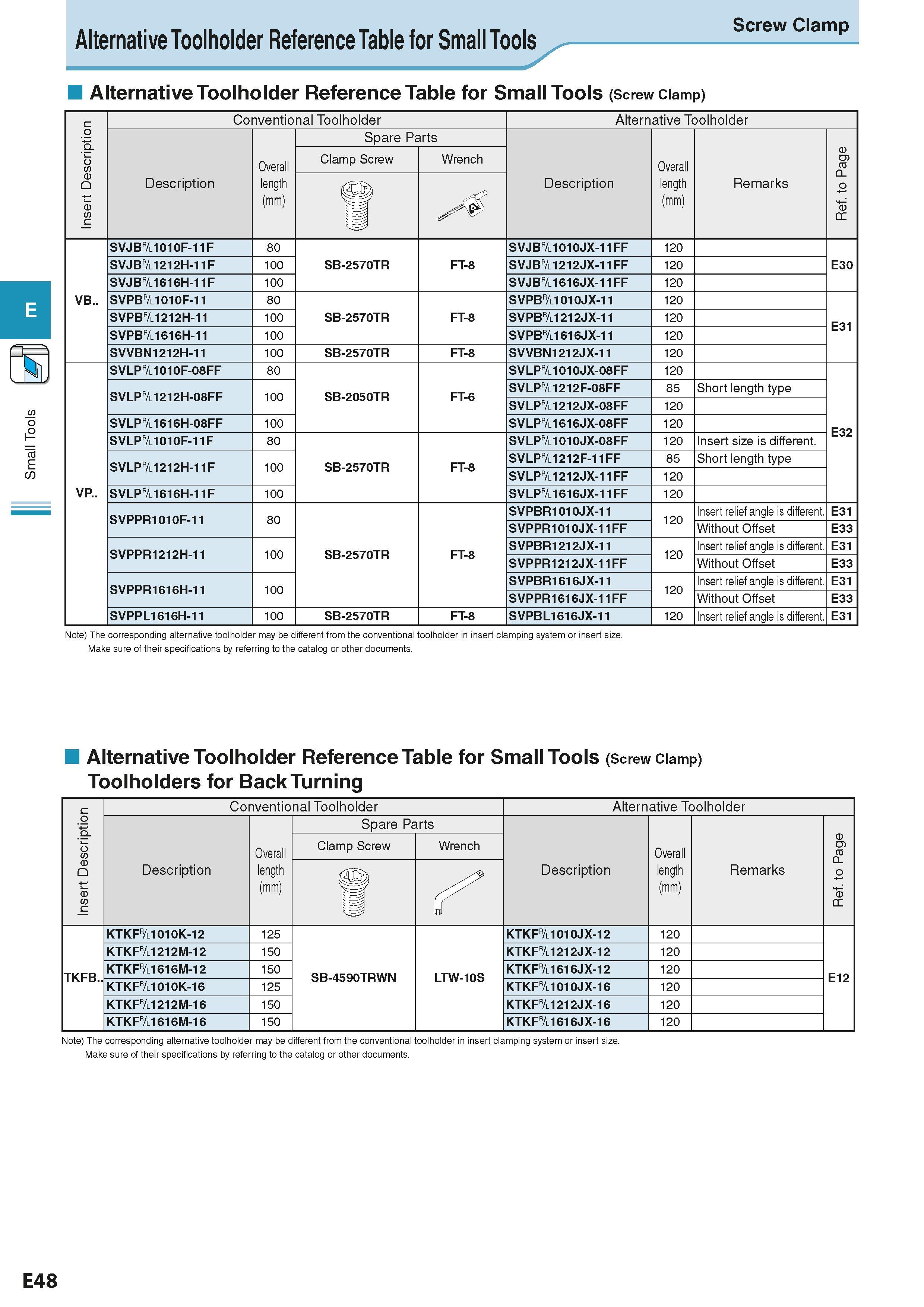

Small Tools Alternative Toolholder Reference Table for Small Tools Screw Clamp Alternative Toolholder Reference Table for Small Tools (Screw Clamp) Insert Description Conventional Toolholder Alternative Toolholder Spare Parts Overall Clamp Screw Wrench Overall Ref. to Page Description length (mm) Hi Description length (mm) Remarks SVJB&1010F-11F 80 SVJB&1010JX-11FF 120 SVJB&1212H-11F 100 SB-2570TR FT-8 SVJB&1212JX-11FF 120 E30 SVJB&1616H-11F 100 SVJB&1616JX-11FF 120 VB.. SVPB&1010F-11 80 SVPB&1010JX-11 120 SVPB&1212H-11 100 SB-2570TR FT-8 SVPB&1212JX-11 120 E31 SVPB&1616H-11 100 SVPB&1616JX-11 120 SVVBN1212H-11 100 SB-2570TR FT-8 SVVBN1212JX-11 120 SVLP&1010F-08FF 80 SVLP&1010JX-08FF 120 SVLP&1212H-08FF 100 SB-2050TR FT-6 SVLP&1212F-08FF 85 Short length type SVLP&1212JX-08FF 120 SVLP&1616H-08FF 100 SVLP&1616JX-08FF 120 E32 SVLP&1010F-11F 80 SVLP&1010JX-08FF 120 Insert size is different. SVLP&1212H-11F 100 SB-2570TR FT-8 SVLP&1212F-11FF 85 Short length type SVLP&1212JX-11FF 120 VP.. SVLP&1616H-11F 100 SVLP&1616JX-11FF 120 SVPPR1010F-11 80 SVPBR1010JX-11 120 Insert relief angle is different. E31 SVPPR1010JX-11FF Without Offset E33 SVPPR1212H-11 100 SB-2570TR FT-8 SVPBR1212JX-11 120 Insert relief angle is different. E31 SVPPR1212JX-11FF Without Offset E33 SVPPR1616H-11 100 SVPBR1616JX-11 120 Insert relief angle is different. E31 SVPPR1616JX-11FF Without Offset E33 SVPPL1616H-11 100 SB-2570TR FT-8 SVPBL1616JX-11 120 Insert relief angle is different. E31 Note) The corresponding alternative toolholder may be different from the conventional toolholder in insert clamping system or insert size. Make sure of their specifications by referring to the catalog or other documents. Alternative Toolholder Reference Table for Small Tools (Screw Clamp) Toolholders for Back Turning Insert Description Conventional Toolholder Alternative Toolholder Spare Parts Overall Clamp Screw Wrench Overall Ref. to Page Description length (mm) u Description length (mm) Remarks KTKF&1010K-12 125 KTKF&1010JX-12 120 KTKF&1212M-12 150 KTKF&1212JX-12 120 TKFB.. KTKF&1616M-12 150 SB-4590TRWN LTW-10S KTKF&1616JX-12 120 E12 KTKF&1010K-16 125 KTKF&1010JX-16 120 KTKF&1212M-16 150 KTKF&1212JX-16 120 KTKF&1616M-16 150 KTKF&1616JX-16 120 Note) The corresponding alternative toolholder may be different from the conventional toolholder in insert clamping system or insert size. Make sure of their specifications by referring to the catalog or other documents. E48
