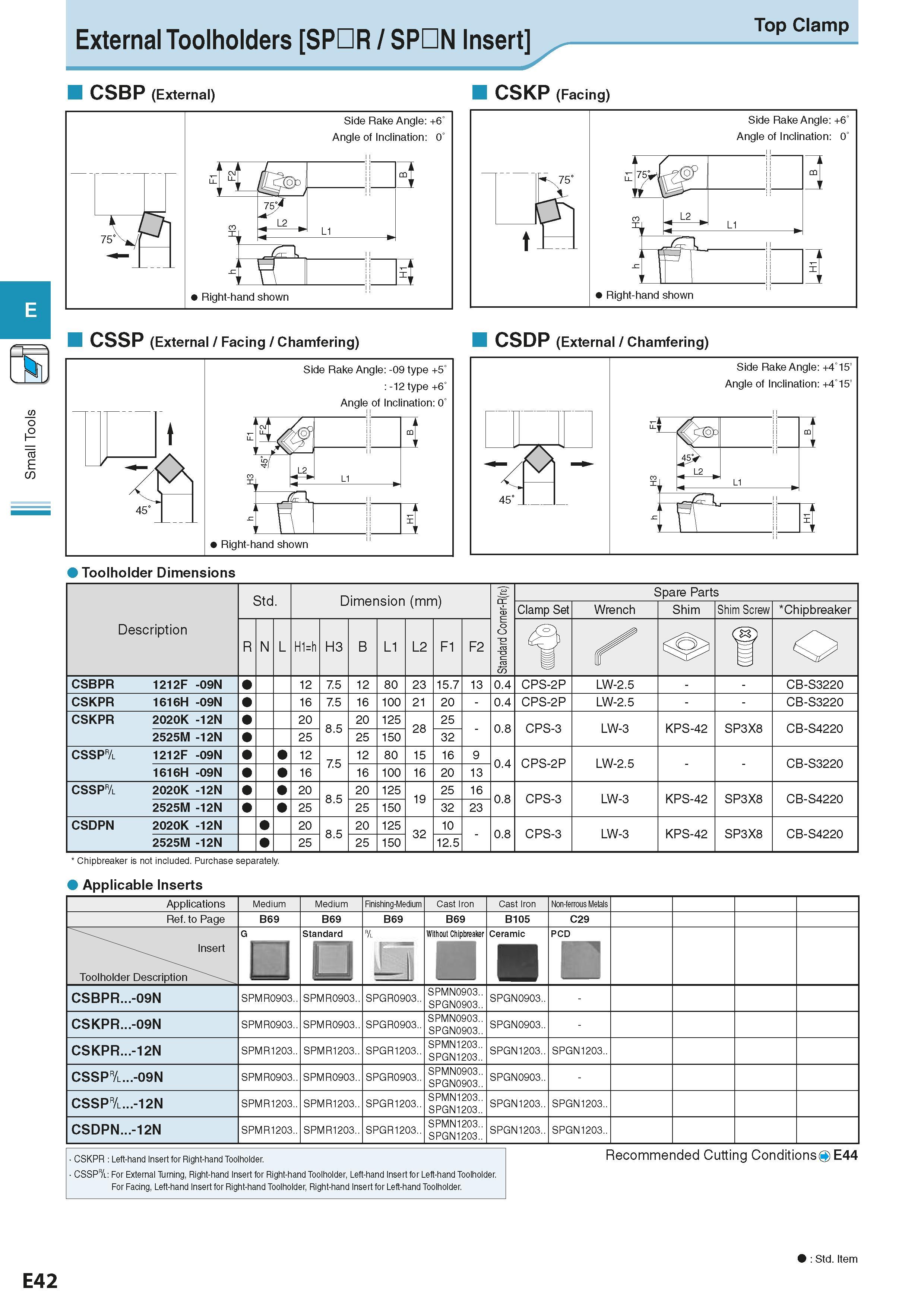

Small Tools External Toolholders SPDR / SPDN Insert Top Clamp CSBP (External) CSKP (Facing) CSSP (External / Facing / Chamfering) CSDP (External / Chamfering) Toolholder Dimensions Description Обозначение инструмента для заказа Std. Dimension (mm) Размеры инструмента указаны в мм Standard Corner-R(rs) Spare Parts Clamp Set Wrench Shim Shim Screw ‘Chipbreaker R N L H1=h H3 B L1 L2 F1 F2 f o CSBPR 1212F -09N 12 7.5 12 80 23 15.7 13 0.4 CPS-2P LW-2.5 CB-S3220 CSKPR 1616H -09N 16 7.5 16 100 21 20 - 0.4 CPS-2P LW-2.5 CB-S3220 CSKPR 2020K -12N 20 8.5 20 125 28 25 - 0.8 CPS-3 LW-3 KPS-42 SP3X8 CB-S4220 2525M -12N 25 25 150 32 CSSP& 1212F -09N 12 7.5 12 80 15 16 9 0.4 CPS-2P LW-2.5 CB-S3220 1616H -09N 16 16 100 16 20 13 CSSP& 2020K -12N 20 8.5 20 125 19 25 16 0.8 CPS-3 LW-3 KPS-42 SP3X8 CB-S4220 2525M -12N 25 25 150 32 23 CSDPN 2020K -12N 20 8.5 20 125 32 10 - 0.8 CPS-3 LW-3 KPS-42 SP3X8 CB-S4220 2525M -12N 25 25 150 12.5 Chipbreaker is not included. Purchase separately. Applicable Inserts Applications Medium Medium Finishing-Medium Cast Iron Cast Iron Non-ferrous Metals Ref. to Page B69 B69 B69 B69 B105 C29 Insert Toolholder Description G Standard & Without Chipbreaker Ceramic PCD u u 1 l CSBPR...-09N SPMR0903.. SPMR0903.. SPGR0903.. SPMN0903.. SPGN0903.. SPGN0903.. - CSKPR...-09N SPMR0903.. SPMR0903.. SPGR0903.. SPMN0903.. SPGN0903.. SPGN0903.. - CSKPR...-12N SPMR1203.. SPMR1203.. SPGR1203.. SPMN1203.. SPGN1203.. SPGN1203.. SPGN1203.. CSSP&...-09N SPMR0903.. SPMR0903.. SPGR0903.. SPMN0903.. SPGN0903.. SPGN0903.. - CSSP&...-12N SPMR1203.. SPMR1203.. SPGR1203.. SPMN1203.. SPGN1203.. SPGN1203.. SPGN1203.. CSDPN...-12N SPMR1203.. SPMR1203.. SPGR1203.. SPMN1203.. SPGN1203.. SPGN1203.. SPGN1203.. CSKPR Left-hand Insert for Right-hand Toolholder. CSSP&: For External Turning, Right-hand Insert for Right-hand Toolholder, Left-hand Insert for Left-hand Toolholder. For Facing, Left-hand Insert for Right-hand Toolholder, Right-hand Insert for Left-hand Toolholder. Recommended Cutting ConditionsO E44 E42 Std. Item
