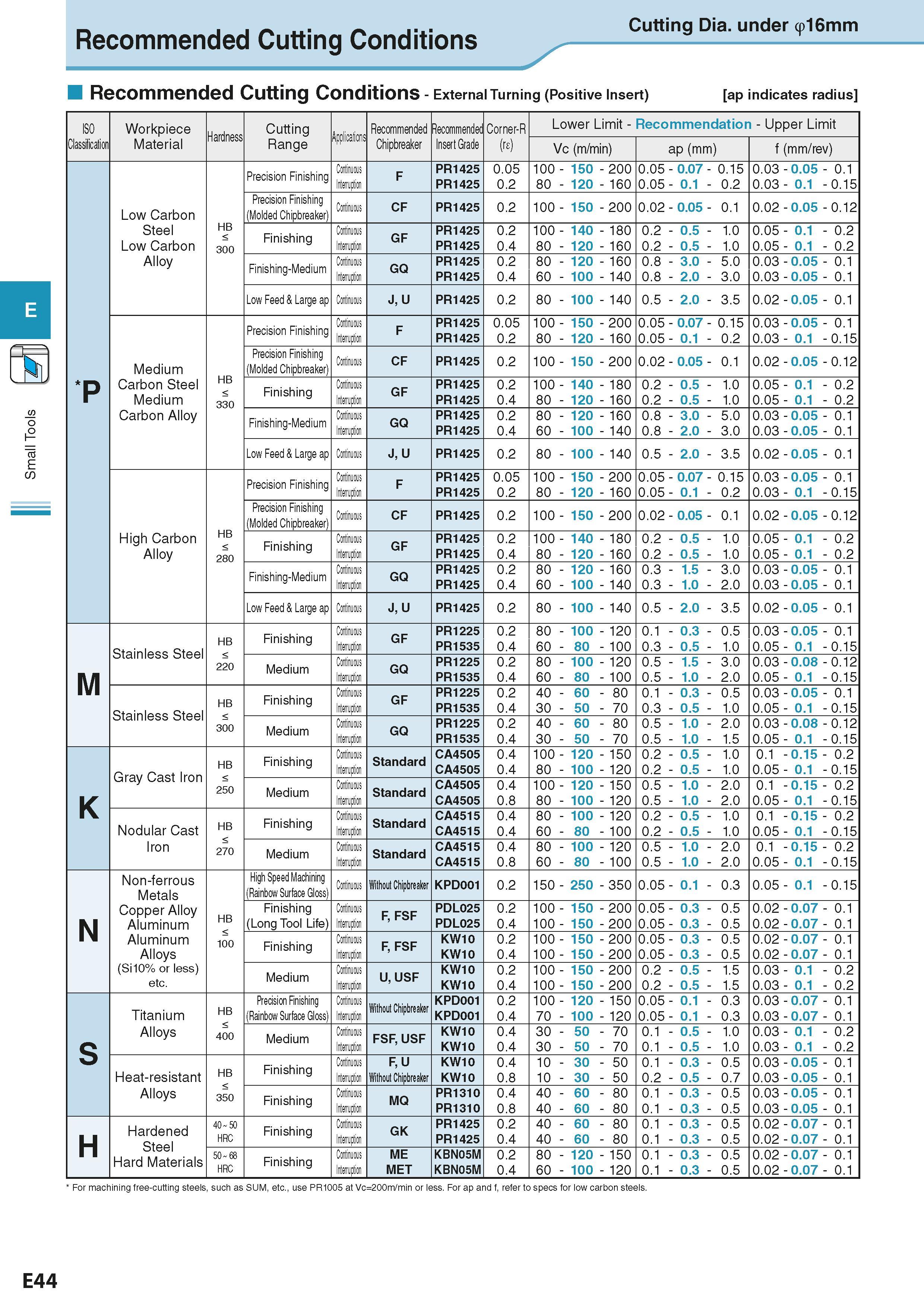

Small Tools n Cutting Dia. under rn16mm Recommended Cutting Conditions Recommended Cutting Conditions - External Turning (Positive Insert) ap indicates radius E ISO Classification Workpiece Material Hardness Cutting Range Applications Recommended Chipbreaker Recommendec Insert Grade Corner-R (re) Lower Limit - Recommendation - Upper Limit Vc (m/min) ap (mm) f (mm/rev) P Low Carbon Steel Low Carbon Alloy HB < 300 Precision Finishing Continuous Inteffuption F PR1425 PR1425 0.05 0.2 100 - 150 - 200 80 - 120 - 160 0.05- 0.07 - 0.15 0.05- 0.1 - 0.2 0.03 - 0.05 - 0.1 0.03- 0.1 -0.15 Precision Finishing (Molded Chipbreaker) Continuous CF PR1425 0.2 100 - 150 - 200 0.02- 0.05 - 0.1 0.02- 0.05 -0.12 Finishing Continuous Interruption GF PR1425 PR1425 0.2 0.4 100 - 140 - 180 80 - 120 - 160 0.2 - 0.5 - 1.0 0.2 - 0.5 - 1.0 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 Finishing-Medium Continuous Interruption GQ PR1425 PR1425 0.2 0.4 80 - 120 - 160 60 - 100 - 140 0.8 - 3.0 - 5.0 0.8 - 2.0 - 3.0 0.03 - 0.05 - 0.1 0.03 - 0.05 - 0.1 Low Feed & Large ap Continuous J, U PR1425 0.2 80 - 100 - 140 0.5 - 2.0 - 3.5 0.02 - 0.05 - 0.1 Medium Carbon Steel Medium Carbon Alloy HB < 330 Precision Finishing Continuous Interruption F PR1425 PR1425 0.05 0.2 100 - 150 - 200 80 - 120 - 160 0.05- 0.07 - 0.15 0.05- 0.1 - 0.2 0.03 - 0.05 - 0.1 0.03- 0.1 -0.15 Precision Finishing (Molded Chipbreaker) Continuous CF PR1425 0.2 100 - 150 - 200 0.02- 0.05 - 0.1 0.02- 0.05 -0.12 Finishing Continuous Interruption GF PR1425 PR1425 0.2 0.4 100 - 140 - 180 80 - 120 - 160 0.2 - 0.5 - 1.0 0.2 - 0.5 - 1.0 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 Finishing-Medium Continuous Interruption GQ PR1425 PR1425 0.2 0.4 80 - 120 - 160 60 - 100 - 140 0.8 - 3.0 - 5.0 0.8 - 2.0 - 3.0 0.03 - 0.05 - 0.1 0.03 - 0.05 - 0.1 Low Feed & Large ap Continuous J, U PR1425 0.2 80 - 100 - 140 0.5 - 2.0 - 3.5 0.02 - 0.05 - 0.1 High Carbon Alloy HB < 280 Precision Finishing Continuous Interruption F PR1425 PR1425 0.05 0.2 100 - 150 - 200 80 - 120 - 160 0.05- 0.07 - 0.15 0.05- 0.1 - 0.2 0.03 - 0.05 - 0.1 0.03- 0.1 -0.15 Precision Finishing (Molded Chipbreaker) Continuous CF PR1425 0.2 100 - 150 - 200 0.02- 0.05 - 0.1 0.02- 0.05 -0.12 Finishing Continuous Interruption GF PR1425 PR1425 0.2 0.4 100 - 140 - 180 80 - 120 - 160 0.2 - 0.5 - 1.0 0.2 - 0.5 - 1.0 0.05 - 0.1 - 0.2 0.05 - 0.1 - 0.2 Finishing-Medium Continuous Interruption GQ PR1425 PR1425 0.2 0.4 80 - 120 - 160 60 - 100 - 140 0.3 - 1.5 - 3.0 0.3 - 1.0 - 2.0 0.03 - 0.05 - 0.1 0.03 - 0.05 - 0.1 Low Feed & Large ap Continuous J, U PR1425 0.2 80 - 100 - 140 0.5 - 2.0 - 3.5 0.02 - 0.05 - 0.1 M Stainless Steel HB < 220 Finishing Continuous Interruption GF PR1225 PR1535 0.2 0.4 80 - 100 - 120 60 - 80 - 100 0.1 - 0.3 - 0.5 0.3 - 0.5 - 1.0 0.03 - 0.05 - 0.1 0.05- 0.1 -0.15 Medium Continuous Interruption GQ PR1225 PR1535 0.2 0.4 80 - 100 - 120 60 - 80 - 100 0.5 - 1.5 - 3.0 0.5 - 1.0 - 2.0 0.03- 0.08 -0.12 0.05- 0.1 -0.15 Stainless Steel HB < 300 Finishing Continuous Interruption GF PR1225 PR1535 0.2 0.4 40 - 60 - 80 30 - 50 - 70 0.1 - 0.3 - 0.5 0.3 - 0.5 - 1.0 0.03 - 0.05 - 0.1 0.05- 0.1 -0.15 Medium Continuous Interruption GQ PR1225 PR1535 0.2 0.4 40 - 60 - 80 30 - 50 - 70 0.5 - 1.0 - 2.0 0.5 - 1.0 - 1.5 0.03- 0.08 -0.12 0.05- 0.1 -0.15 K Gray Cast Iron HB < 250 Finishing Continuous Interruption Standard CA4505 CA4505 0.4 0.4 100 - 120 - 150 80 - 100 - 120 0.2 - 0.5 - 1.0 0.2 - 0.5 - 1.0 0.1 - 0.15 - 0.2 0.05- 0.1 -0.15 Medium Continuous Interruption Standard CA4505 CA4505 0.4 0.8 100 - 120 - 150 80 - 100 - 120 0.5 - 1.0 - 2.0 0.5 - 1.0 - 2.0 0.1 - 0.15 - 0.2 0.05- 0.1 -0.15 Nodular Cast Iron HB < 270 Finishing Continuous Interruption Standard CA4515 CA4515 0.4 0.4 80 - 100 - 120 60 - 80 - 100 0.2 - 0.5 - 1.0 0.2 - 0.5 - 1.0 0.1 - 0.15 - 0.2 0.05- 0.1 -0.15 Medium Continuous Interruption Standard CA4515 CA4515 0.4 0.8 80 - 100 - 120 60 - 80 - 100 0.5 - 1.0 - 2.0 0.5 - 1.0 - 2.0 0.1 - 0.15 - 0.2 0.05- 0.1 -0.15 N Non-ferrous Metals Copper Alloy Aluminum Aluminum Alloys (Si10% or less) etc. HB < 100 High Speed Machining (Rainbow Surface Gloss) Continuous Without Chipbreaker KPD001 0.2 150 - 250 - 350 0.05- 0.1 - 0.3 0.05- 0.1 -0.15 Finishing (Long Tool Life) Continuous Interruption F, FSF PDL025 PDL025 0.2 0.4 100 - 150 - 200 100 - 150 - 200 0.05- 0.3 - 0.5 0.05- 0.3 - 0.5 0.02 - 0.07 - 0.1 0.02 - 0.07 - 0.1 Finishing Continuous Interruption F, FSF KW10 KW10 0.2 0.4 100 - 150 - 200 100 - 150 - 200 0.05- 0.3 - 0.5 0.05- 0.3 - 0.5 0.02 - 0.07 - 0.1 0.02 - 0.07 - 0.1 Medium Continuous Interruption U, USF KW10 KW10 0.2 0.4 100 - 150 - 200 100 - 150 - 200 0.2 - 0.5 - 1.5 0.2 - 0.5 - 1.5 0.03 - 0.1 - 0.2 0.03 - 0.1 - 0.2 S Titanium Alloys HB < 400 Precision Finishing (Rainbow Surface Gloss) Continuous Interruption Without Chipbreaker KPD001 KPD001 0.2 0.4 100 - 120 - 150 70 - 100 - 120 0.05- 0.1 - 0.3 0.05- 0.1 - 0.3 0.03 - 0.07 - 0.1 0.03 - 0.07 - 0.1 Medium Continuous Interruption FSF, USF KW10 KW10 0.4 0.4 30 - 50 - 70 30 - 50 - 70 0.1 - 0.5 - 1.0 0.1 - 0.5 - 1.0 0.03 - 0.1 - 0.2 0.03 - 0.1 - 0.2 Heat-resistant Alloys HB < 350 Finishing Continuous Interruption F, U Without Chipbreaker KW10 KW10 0.4 0.8 10 - 30 - 50 10 - 30 - 50 0.1 - 0.3 - 0.5 0.2 - 0.5 - 0.7 0.03 - 0.05 - 0.1 0.03 - 0.05 - 0.1 Finishing Continuous Interruption MQ PR1310 PR1310 0.4 0.8 40 - 60 - 80 40 - 60 - 80 0.1 - 0.3 - 0.5 0.1 - 0.3 - 0.5 0.03 - 0.05 - 0.1 0.03 - 0.05 - 0.1 H Hardened Steel Hard Materials 40 50 HRC Finishing Continuous Interruption GK PR1425 PR1425 0.2 0.4 40 - 60 - 80 40 - 60 - 80 0.1 - 0.3 - 0.5 0.1 - 0.3 - 0.5 0.02 - 0.07 - 0.1 0.02 - 0.07 - 0.1 50 68 HRC Finishing Continuous Interruption ME MET KBN05M KBN05M 0.2 0.4 80 - 120 - 150 60 - 100 - 120 0.1 - 0.3 - 0.5 0.1 - 0.3 - 0.5 0.02 - 0.07 - 0.1 0.02 - 0.07 - 0.1 For machining free-cutting steels, such as SUM, etc., use PR1005 at Vc=200m/min or less. For ap and f, refer to specs for low carbon steels. E44
