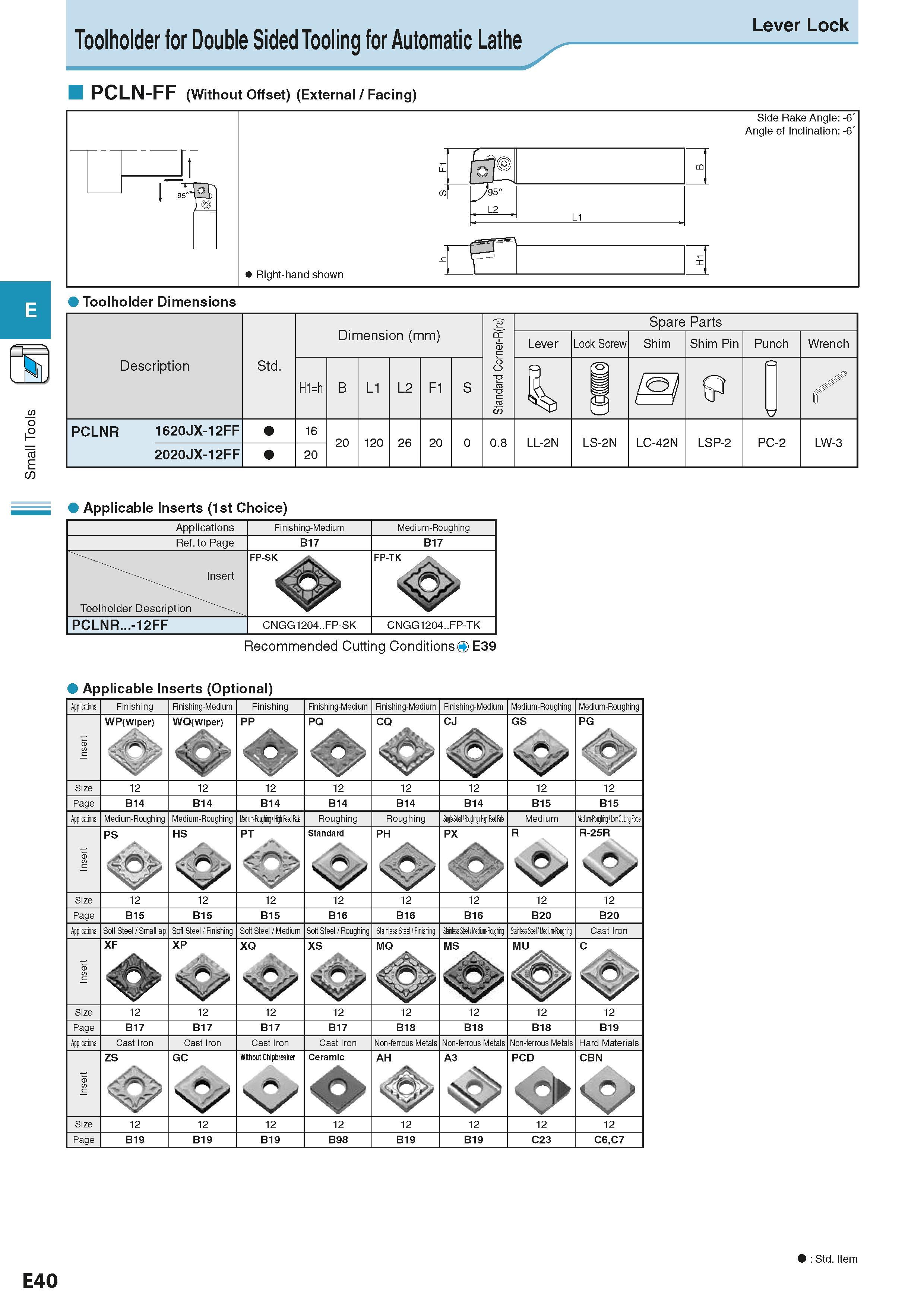

Toolholder for Double Sided Tooling for Automatic Lathe PCLN-FF (Without Offset) (External / Facing) Lever Lock Toolholder Dimensions Description Обозначение инструмента для заказа Std. Dimension (mm) Размеры инструмента указаны в мм H1=h L1 L2 F1 Lever Lock Screw Shim Shim Pin Punch Wrench Spare Parts X7 PCLNR 1620JX-12FF 2020JX-12FF 16 20 20 120 26 20 0.8 LL-2N LS-2N LC-42N LSP-2 PC-2 LW-3 Applicable Inserts (1st Choice) Applications Finishing-Medium Medium-Roughing Ref. to Page B17 B17 Insert Toolholder Description FP-TK PCLNR...-12FF CNGG1204..FP-SK CNGG1204..FP-TK Recommended Cutting ConditionsO E39 Applicable Inserts (Optional) Applications Finishing Finishing-Medium Finishing Finishing-Medium Finishing-Medium Finishing-Medium Medium-Roughing Medium-Roughing Insert WP(Wiper) % WQ(Wiper) < PP PQ CQ CJ GS PG Size 12 12 12 12 12 12 12 12 Page B14 B14 B14 B14 B14 B14 B15 B15 Applications Medium-Roughing Medium-Roughing Msdium-Fbughing / High Feed Fate Roughing Roughing Sngle Sded / fagling / High Feed Rate Medium Medium-Roughing / Low Cutting Force PS HS PT Standard PH PX R R-25R Insert s / ''S' Size 12 12 12 12 12 12 12 12 Page B15 B15 B15 B16 B16 B16 B20 B20 Applications Soft Steel / Small ap Soft Steel / Finishing Soft Steel / Medium Soft Steel Roughing Stainless Steel / Finishing Slainless Steel / Medium-Roughing Stainless Steel / Medium-RDughing Cast Iron XF XP XQ XS O MQ MS MU C Insert Size 12 12 12 12 12 12 12 12 Page B17 B17 B17 B17 B18 B18 B18 B19 Applications Cast Iron Cast Iron Cast Iron Cast Iron Non-ferrous Metals Non-ferrous Metals Non-ferrous Metals Hard Materials Insert ZS /O W GC Without Chipbreaker Ceramic o AH A3 PCD CBN Size 12 12 12 12 12 12 12 12 Page B19 B19 B19 B98 B19 B19 C23 C6,C7 E40 Std. Item E B S 0
