37 Каталог KYOCERA 2016 Инструмент режущий станочный Пластины Резцы Фрезы Сверла Стр.B7

Каталог KYOCERA 2016 Режущий инструмент для станков Стр. B7 0037 Lab2u

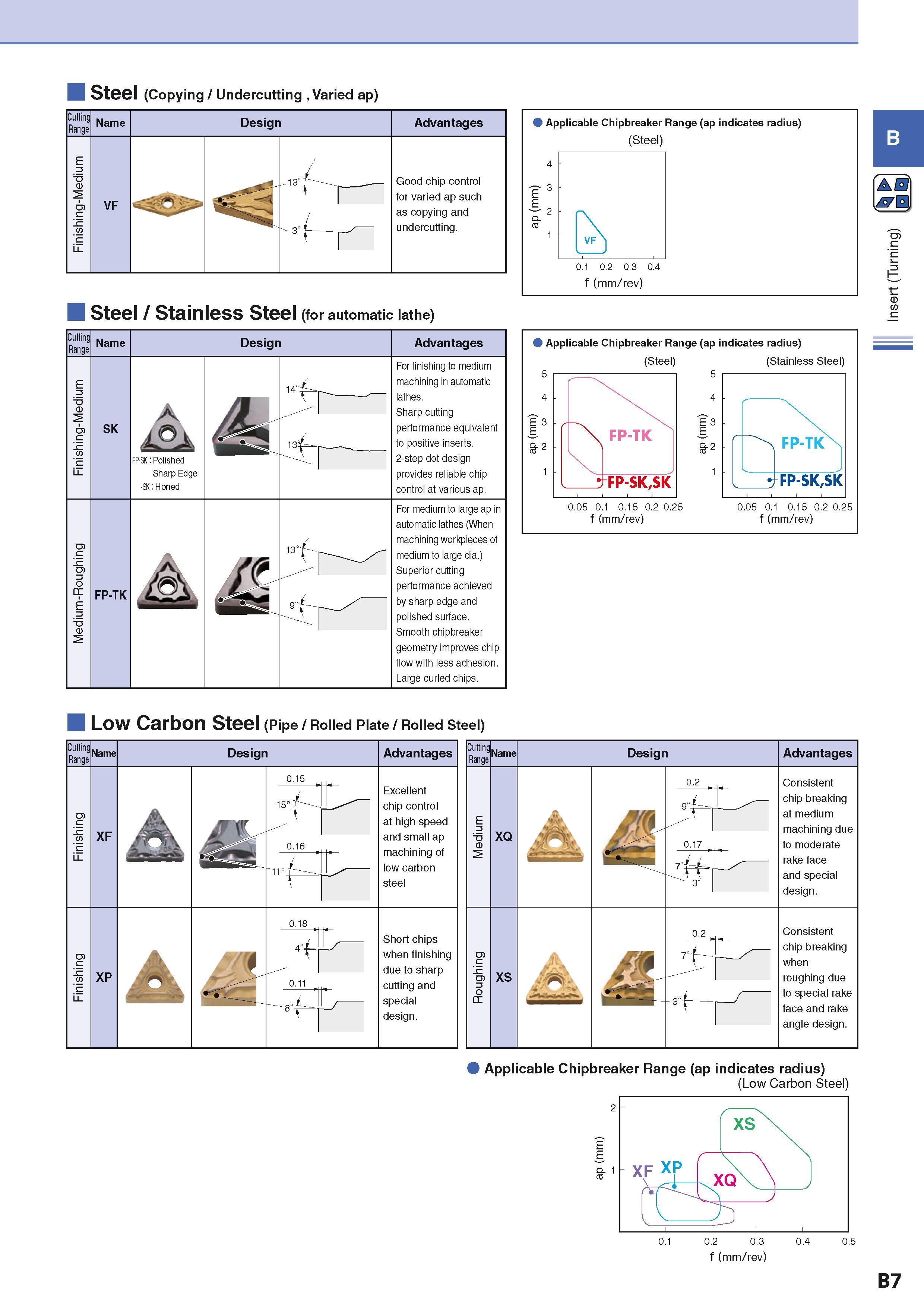

Steel (Copying / Undercutting Varied ap) Cutting Range Name Design Advantages Finishing-Medium VF - 13 ° Good chip control for varied ap such as copying and undercutting. \ Steel / Stainless Steel (for automatic lathe) Cutting Range Name Design Advantages SK A iP± FP-SK: Polished Sharp Edge -SK: Honed For finishing to medium machining in automatic lathes. Sharp cutting performance equivalent to positive inserts. 2-step dot design provides reliable chip control at various ap. FP-TK For medium to large ap in automatic lathes (When machining workpieces of medium to large dia.) Superior cutting performance achieved by sharp edge and polished surface. Smooth chipbreaker geometry improves chip flow with less adhesion. Large curled chips. Applicable Chipbreaker Range (ap indicates radius) (Steel) (Stainless Steel) f (mm/rev) f (mm/rev) AS JTU
