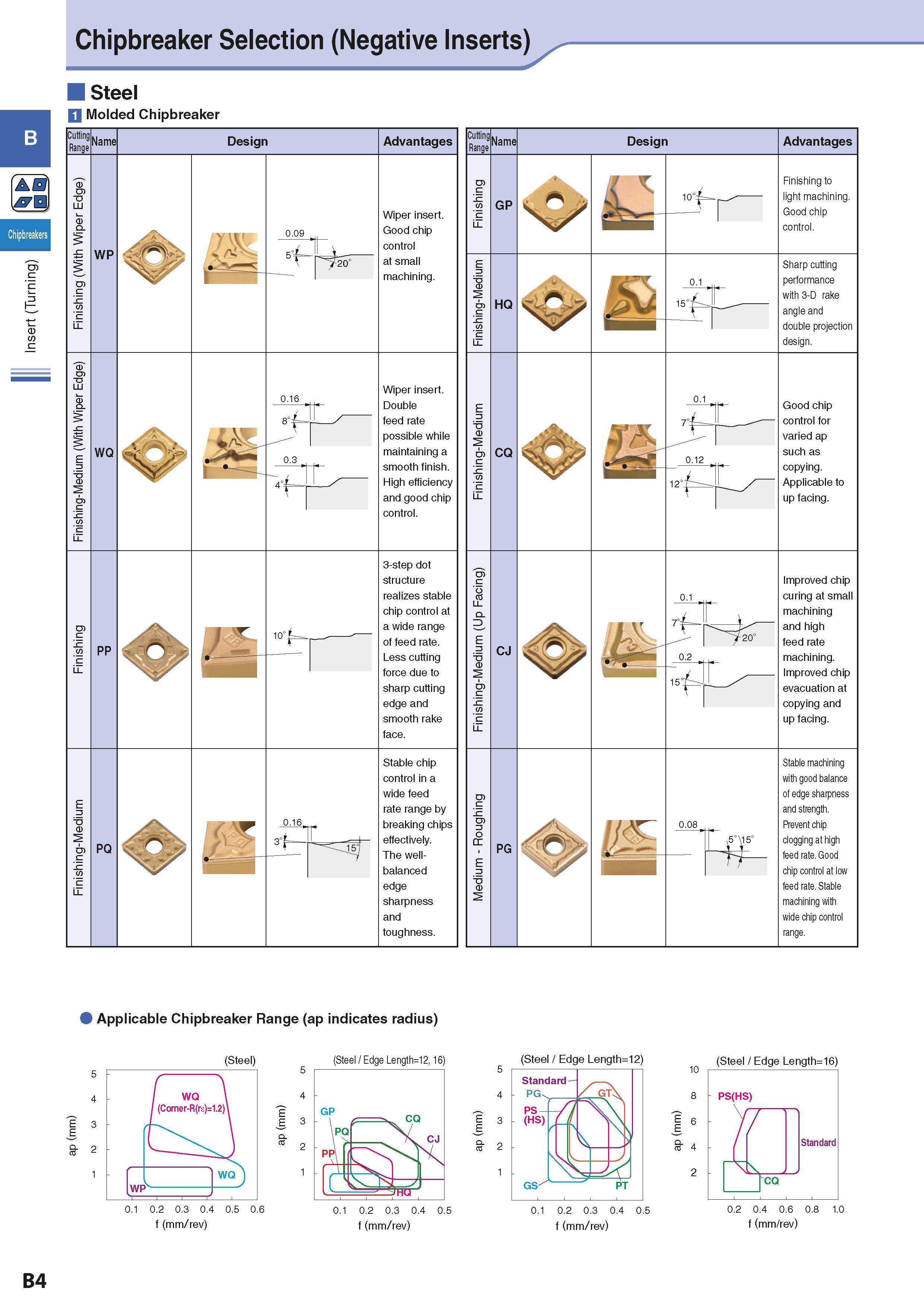

Insert (Turning) Chipbreaker Selection (Negative Inserts) B a jrn Steel j Molded Chipbreaker Cutting Range Name WP WQ PP PQ Design Advantages Wiper insert. Good chip control at small machining. Wiper insert. Double feed rate possible while maintaining a smooth finish. High efficiency and good chip control. 3-step dot structure realizes stable chip control at a wide range of feed rate. Less cutting force due to sharp cutting edge and smooth rake face. Stable chip control in a wide feed rate range by breaking chips effectively. The well-balanced edge sharpness and toughness. Cutting Range Name GP HQ CQ CJ PG Design Advantages Finishing to light machining. Good chip control. Sharp cutting performance with 3-D rake angle and double projection design. Good chip control for varied ap such as copying. Applicable to up facing. Improved chip curing at small machining and high feed rate machining. Improved chip evacuation at copying and up facing. Stable machining with good balance of edge sharpness and strength. Prevent chip clogging at high feed rate. Good chip control at low feed rate. Stable machining with wide chip control range. Applicable Chipbreaker Range (ap indicates radius) (Steel) (Steel / Edge Length=12, 16) (Steel / Edge Length=12) GT Standard PG PS (HS) GS PT 10 8 1 6 ct 4 2 f (mm/rev) f (mm/rev) 0.1 0.2 0.3 0.4 0.5 f (mm/rev) (Steel / Edge Length=16) PS(HS) 7 - Standard 0.2 0.4 0.6 0.8 1.0 f (mm/rev) 5 4 3 2 B4
