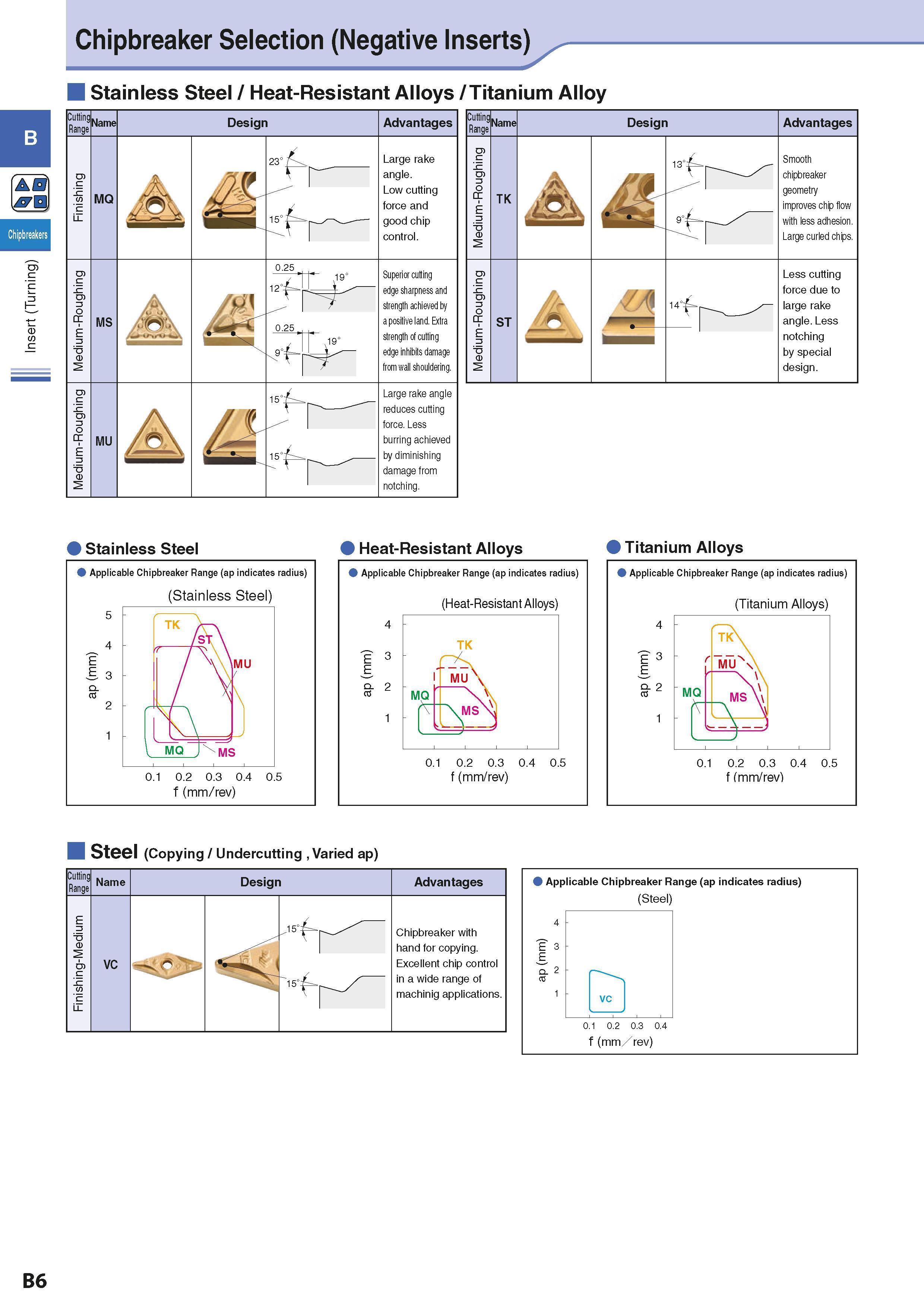

Insert (Turning) Chipbreaker Selection (Negative Inserts) - B a jrn Stainless Steel / Heat-Resistant Alloys / Titanium Alloy Cutting Range Name MQ MS MU Design 23° 0.25 1 Advantages Large rake angle. Low cutting force and good chip control. Superior cutting a positive land. Extra strength of cutting edge inhibits damage from wall shouldering. Large rake angle reduces cutting force. Less burring achieved by diminishing damage from notching. Cutting Name TK ST Design Advantages Smooth chipbreaker geometry improves chip flow with less adhesion. Large curled chips. Less cutting force due to large rake angle. Less notching by special design. 15 Stainless Steel Heat-Resistant Alloys Titanium Alloys Applicable Chipbreaker Range (ap indicates radius) (Stainless Steel) f (mm/rev) Steel (Copying / Undercutting Varied ap) Cutting Range Name Design Advantages £ u 'u o u> c 'jz 'c i L VC Chipbreaker with hand for copying. Excellent chip control in a wide range of machinig applications. Applicable Chipbreaker Range (ap indicates radius) (Steel) 4 "E 3 E Q. 2 (0 1 VC 0.1 0.2 0.3 0.4 f (mm/rev) B6
