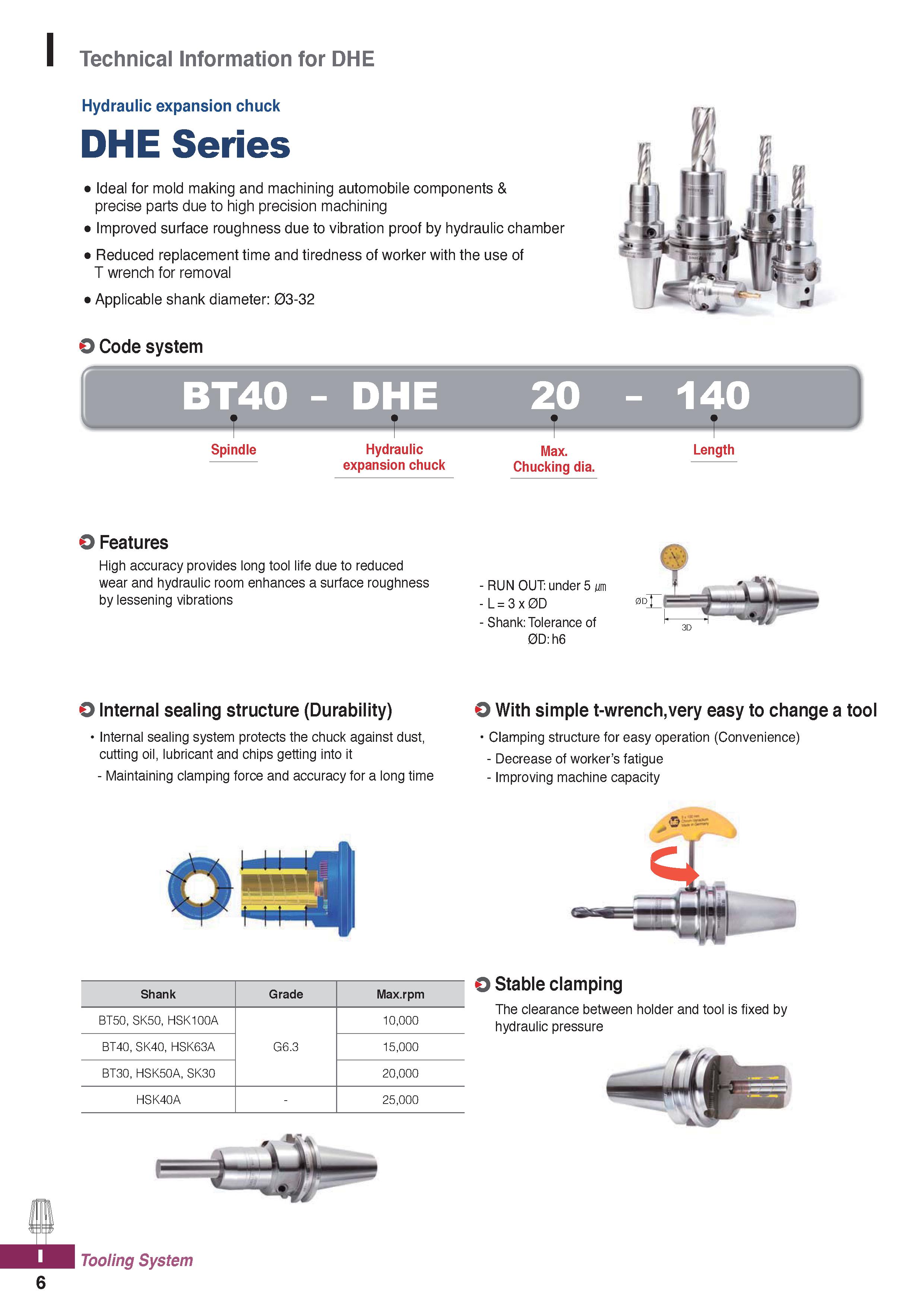

Technical Information for DHE Hydraulic expansion chuck DHE Series Ideal for mold making and machining automobile components & precise parts due to high precision machining Improved surface roughness due to vibration proof by hydraulic chamber Reduced replacement time and tiredness of worker with the use of T wrench for removal Applicable shank diameter: 03-32 Code system BT40 - DHE 20 - 140 Spindle Hydraulic expansion chuck Max. Chucking dia. Length 0 Features High accuracy provides long tool life due to reduced wear and hydraulic room enhances a surface roughness by lessening vibrations RUN 0UT:under5 ym L = 3 x 0D Shank: Tolerance of 0D:h6 0D j O Internal sealing structure (Durability) Internal sealing system protects the chuck against dust, cutting oil, lubricant and chips getting into it - Maintaining clamping force and accuracy for a long time O With simple t-wrench,very easy to change a tool Clamping structure for easy operation (Convenience) - Decrease of worker’s fatigue - Improving machine capacity Shank Grade Max.rpm BT50, SK5C, HSK A G6.3 BT4C, SK4C, HSK63A 15 BT3C, HSK5CA, SK3C 20,000 HSK4CA - 25 Tooling System Stable clamping The clearance between holder and tool is fixed by hydraulic pressure 6
