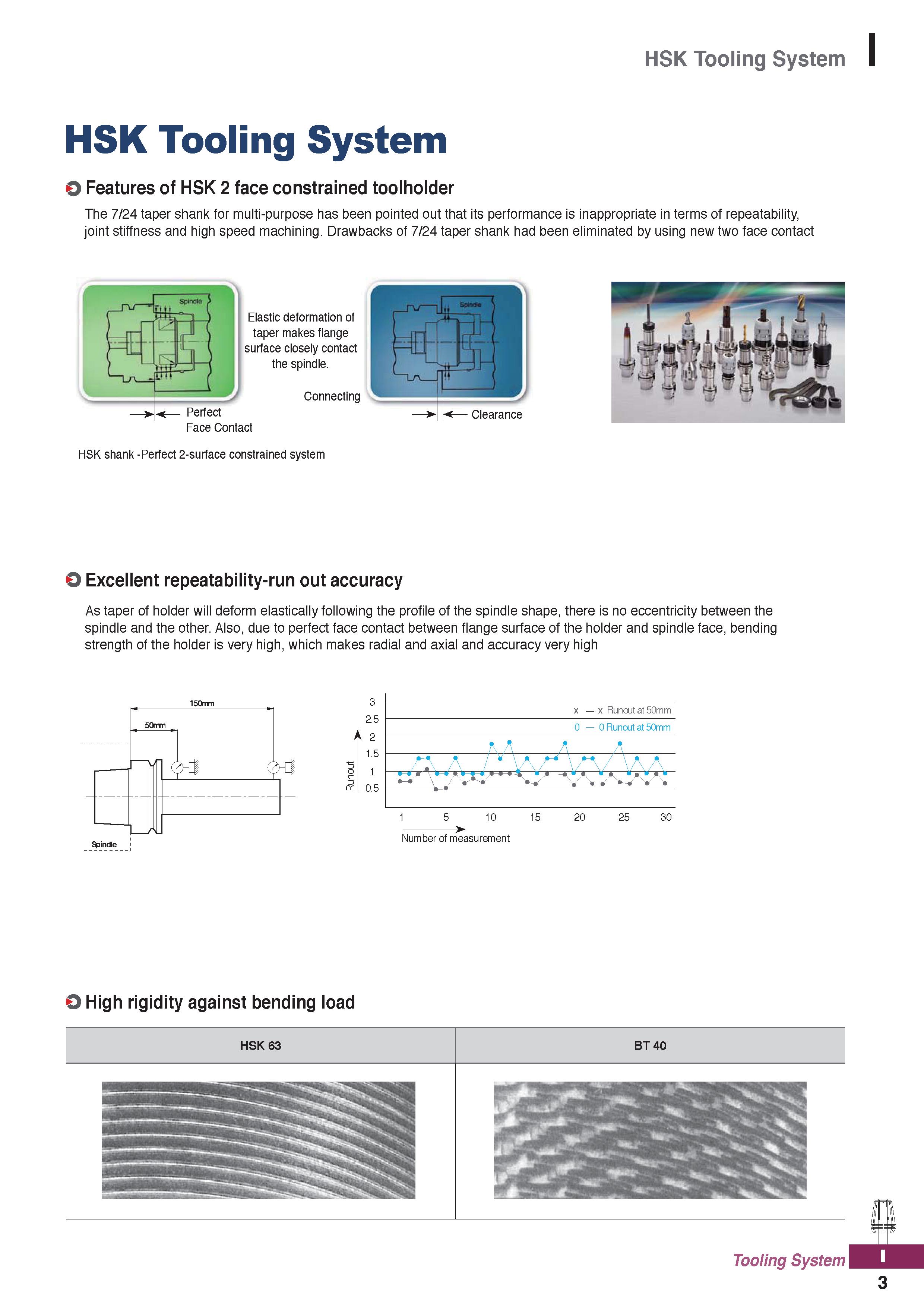

HSK Tooling System HSK Tooling System O Features of HSK 2 face constrained toolholder The 7/24 taper shank for multi-purpose has been pointed out that its performance is inappropriate in terms of repeatability, joint stiffness and high speed machining. Drawbacks of 7/24 taper shank had been eliminated by using new two face contact Elastic deformation of taper makes flange surface closely contact the spindle. Connecting Perfect Face Contact HSK shank -Perfect 2-surface constrained system O Excellent repeatability-run out accuracy As taper of holder will deform elastically following the profile of the spindle shape, there is no eccentricity between the spindle and the other. Also, due to perfect face contact between flange surface of the holder and spindle face, bending strength of the holder is very high, which makes radial and axial and accuracy very high 150mm Spindle Number of measurement O High rigidity against bending load
