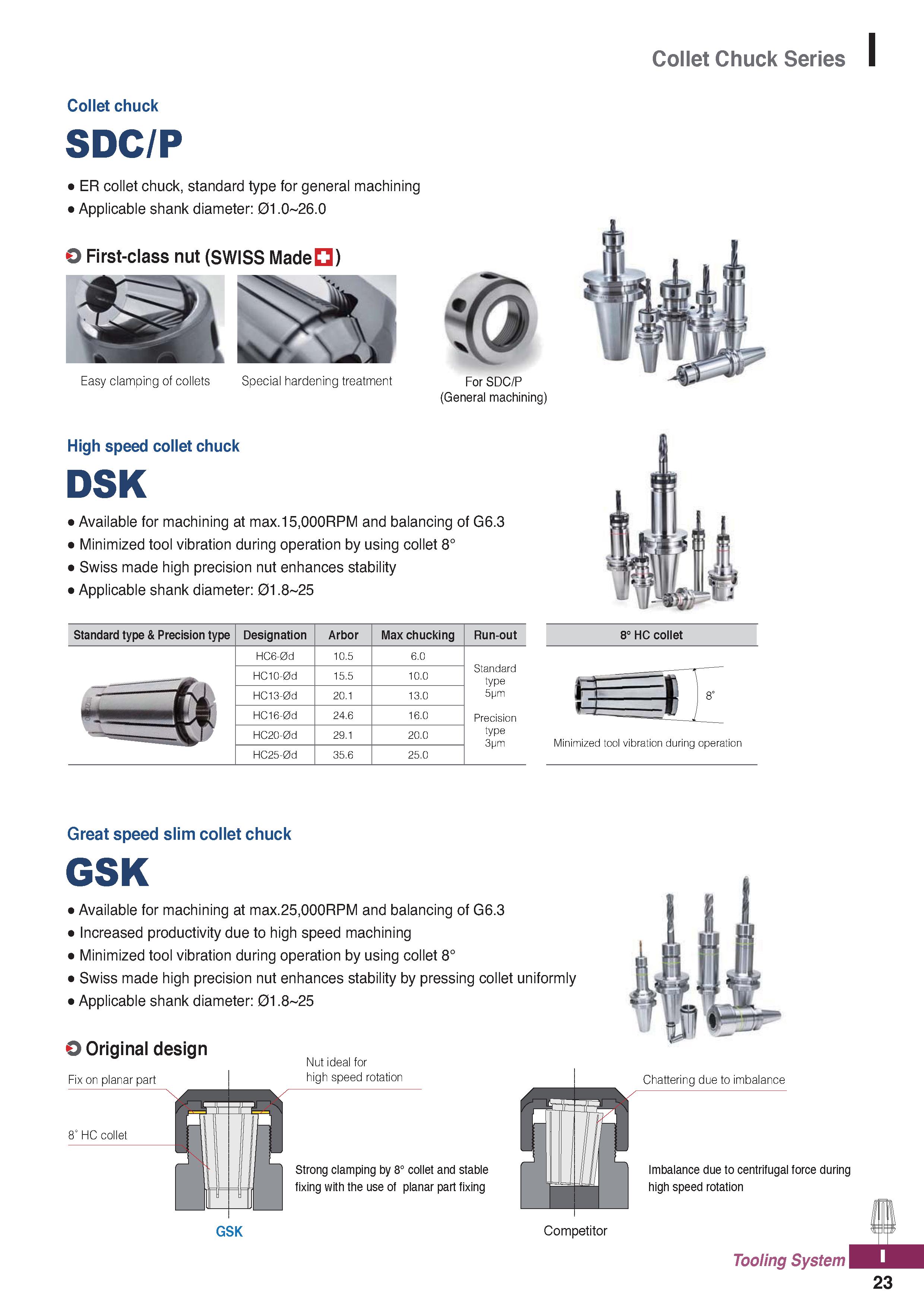

Collet Chuck Series Collet chuck SDC/P ER collet chuck, standard type for general machining Applicable shank diameter: 01.O 26.O First-class nut (SWISS Made ) Easy clamping of collets Special hardening treatment For SDC/P (General machining) High speed collet chuck DSK ' Available for machining at max.15,000RPM and balancing of G6.3 ' Minimized tool vibration during operation by using collet 8° ' Swiss made high precision nut enhances stability ' Applicable shank diameter: 01.8 25 Standard type & Precision type Designation Arbor Max chucking Run-out HC6-0d 10.5 6.0 Standard type . -y HC1O-0d 15.5 10.0 - '" \J HC13-0d 20.1 13.0 HC16-0d 24.6 16.0 Precision HC2O-0d 29.1 20.0 type HC25-0d 35.6 25.0 3 8° HC collet Minimized tool vibration during operation Great speed slim collet chuck GSK ' Available for machining at max.25,000RPM and balancing of G6.3 ' Increased productivity due to high speed machining ' Minimized tool vibration during operation by using collet 8° ' Swiss made high precision nut enhances stability by pressing collet uniformly ' Applicable shank diameter: 01.8 25 O Original design Fix on planar part Nut ideal for high speed rotation 8° HC collet Strong clamping by 8° collet and stable fixing with the use of planar part fixing GSK Competitor Imbalance due to centrifugal force during high speed rotation Tooling System 23
