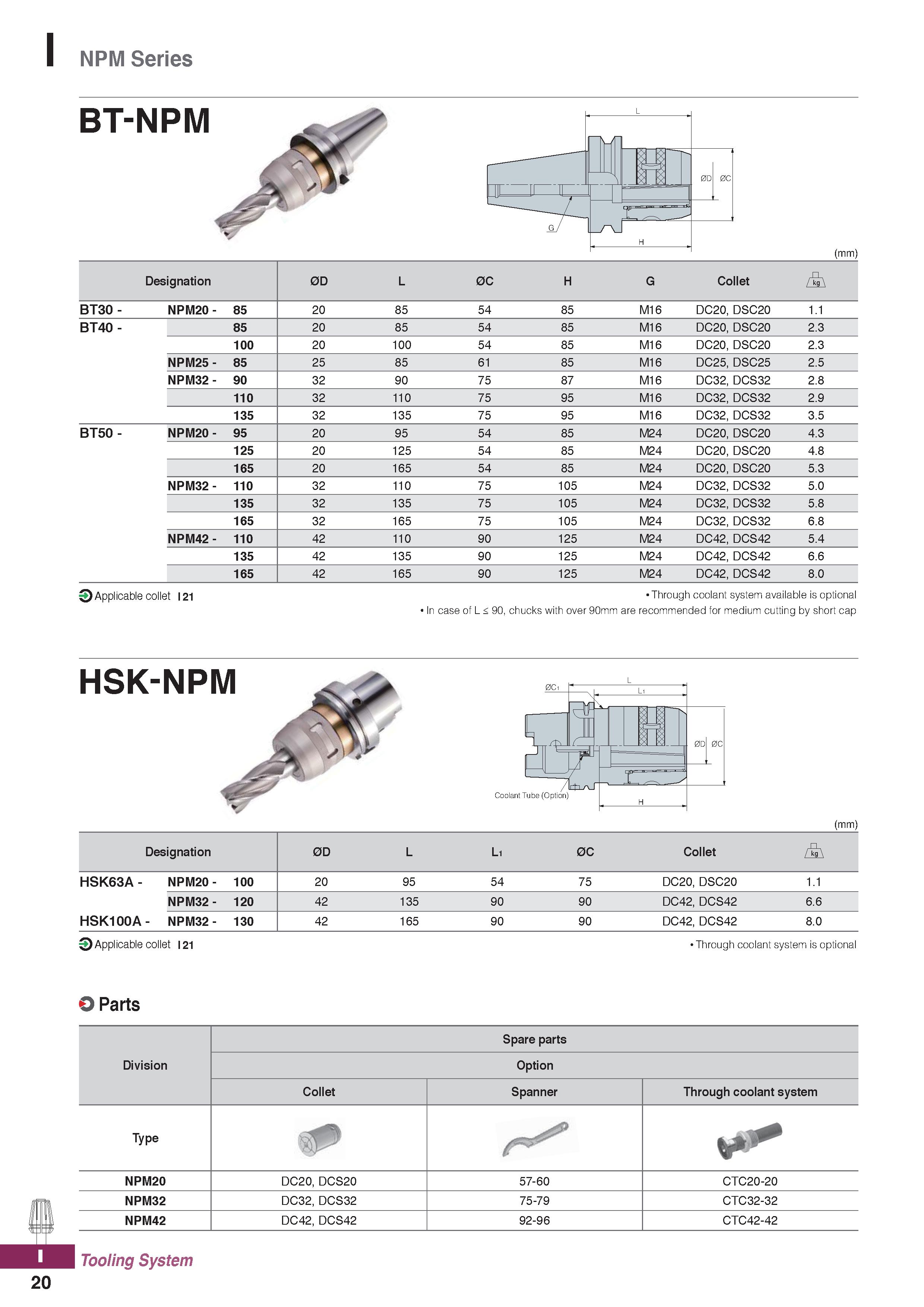

NPM Series BT-NPM (mm) Designation 0D L 0C H G Collet BT30 - NPM20 - 85 20 85 54 85 M16 DC20, DSC20 1.1 BT40 - 85 20 85 54 85 M16 DC20, DSC20 2.3 100 20 100 54 85 M16 DC20, DSC20 2.3 NPM25 - 85 25 85 61 85 M16 DC25, DSC25 2.5 NPM32 - 90 32 90 75 87 M16 DC32, DCS32 2.8 110 32 110 75 95 M16 DC32, DCS32 2.9 135 32 135 75 95 M16 DC32, DCS32 3.5 BT50 - NPM20 - 95 20 95 54 85 M24 DC20, DSC20 4.3 125 20 125 54 85 M24 DC20, DSC20 4.8 165 20 165 54 85 M24 DC20, DSC20 5.3 NPM32 - 110 32 110 75 105 M24 DC32, DCS32 5.0 135 32 135 75 105 M24 DC32, DCS32 5.8 165 32 165 75 105 M24 DC32, DCS32 6.8 NPM42 - 110 42 110 90 125 M24 DC42, DCS42 5.4 135 42 135 90 125 M24 DC42, DCS42 6.6 165 42 165 90 125 M24 DC42, DCS42 8.0 O Applicable collet I 21 Through coolant system available is optional i case ofL 90, chucks with over 90mm are recommended for medium cutting by short cap (mm) Designation 0D L L1 0C Collet HSK63A - NPM20 - 100 20 95 54 75 DC20, DSC20 1.1 NPM32 - 120 42 135 90 90 DC42, DCS42 6.6 HSK100A - NPM32 - 130 42 165 90 90 DC42, DCS42 8.0 0 Applicable collet I 21 Through coolant system is optional O Parts Division Spare parts Option Collet Spanner Through coolant system Type 5 NPM20 DC20, DCS20 57-60 CTC20-20 NPM32 DC32, DCS32 75-79 CTC32-32 NPM42 DC42, DCS42 92-96 CTC42-42 Tooling System 20
