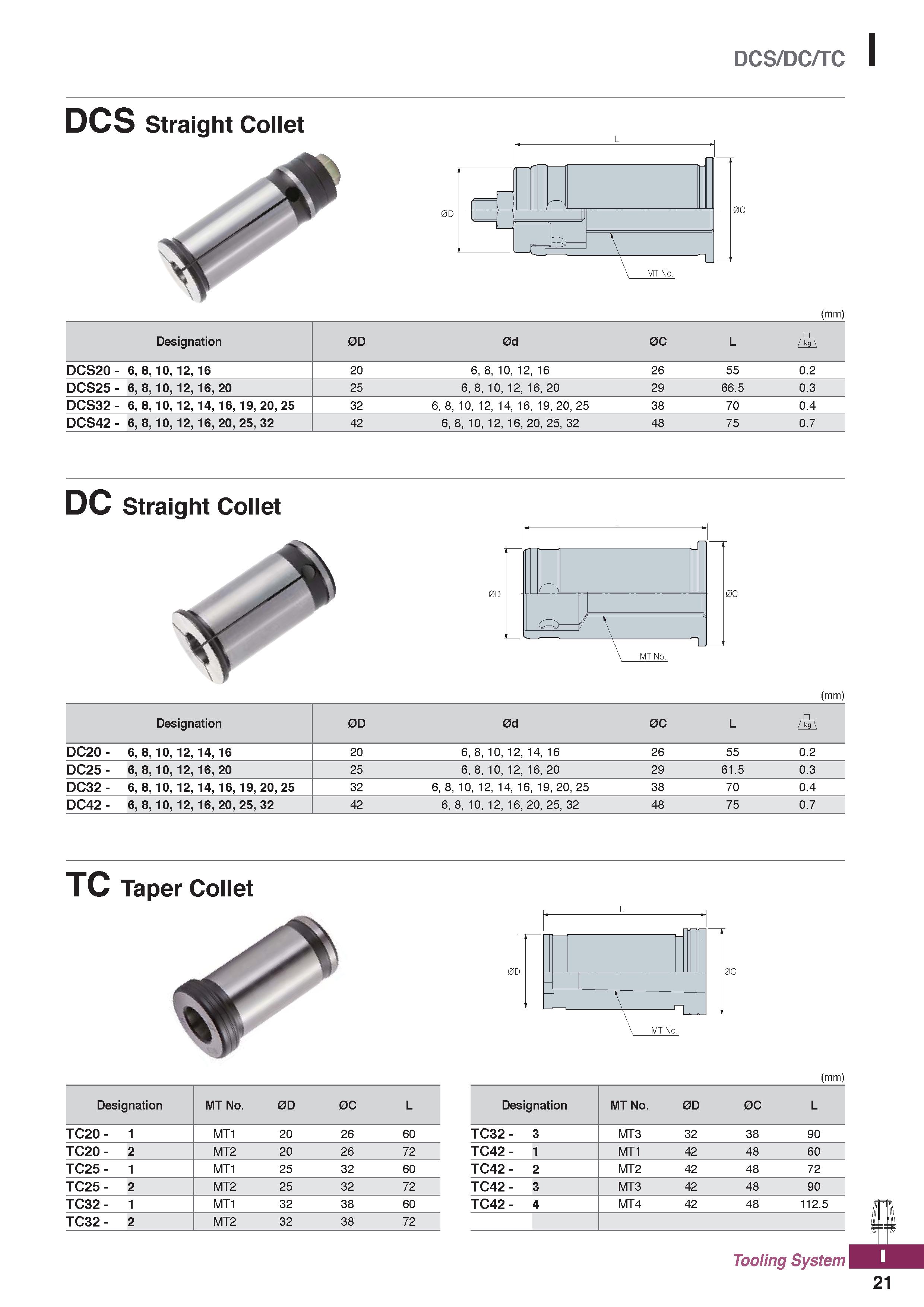

DCS/DC/TC I DCS Straight Collet 0D 0C (mm) Designation 0D 0d 0C L A DCS20 - 6, 8, 10, 12, 16 20 6, 8, 10, 12, 16 26 55 0.2 DCS25- 6, 8, 10, 12, 16, 20 25 6, 8, 10, 12, 16, 20 29 66.5 0.3 DCS32 - 6, 8, 10, 12, 14, 16, 19, 20, 25 32 6, 8, 10, 12, 14, 16, 19, 20, 25 38 70 0.4 DCS42 - 6, 8, 10, 12, 16, 20, 25, 32 42 6, 8, 10, 12, 16, 20, 25, 32 48 75 0.7 DC Straight Collet U 0C (mm) Designation 0D 0d 0C L A DC20 - 6, 8, 10, 12, 14, 16 20 6, 8, 10, 12, 14, 16 26 55 0.2 DC25 - 6, 8, 10, 12, 16, 20 25 6, 8, 10, 12, 16, 20 29 61.5 0.3 DC32 - 6, 8, 10, 12, 14, 16, 19, 20, 25 32 6, 8, 10, 12, 14, 16, 19, 20, 25 38 70 0.4 DC42 - 6, 8, 10, 12, 16, 20, 25, 32 42 6, 8, 10, 12, 16, 20, 25, 32 48 75 0.7 TC Taper Collet (mm) Designation MT No. 0D 0C L Designation MT No. 0D 0C L TC20 - 1 MT1 20 26 60 TC32 - 3 MT3 32 38 90 TC20 - 2 MT2 20 26 72 TC42 - 1 MT1 42 48 60 TC25 - 1 MT1 25 32 60 TC42 - 2 MT2 42 48 72 TC25 - 2 MT2 25 32 72 TC42 - 3 MT3 42 48 90 TC32 - 1 MT1 32 38 60 TC42 - 4 MT4 42 48 112.5 TC32 - 2 MT2 32 38 72 Tooling System 21 L 0D Ml NC 0D 0C Ml Nc
