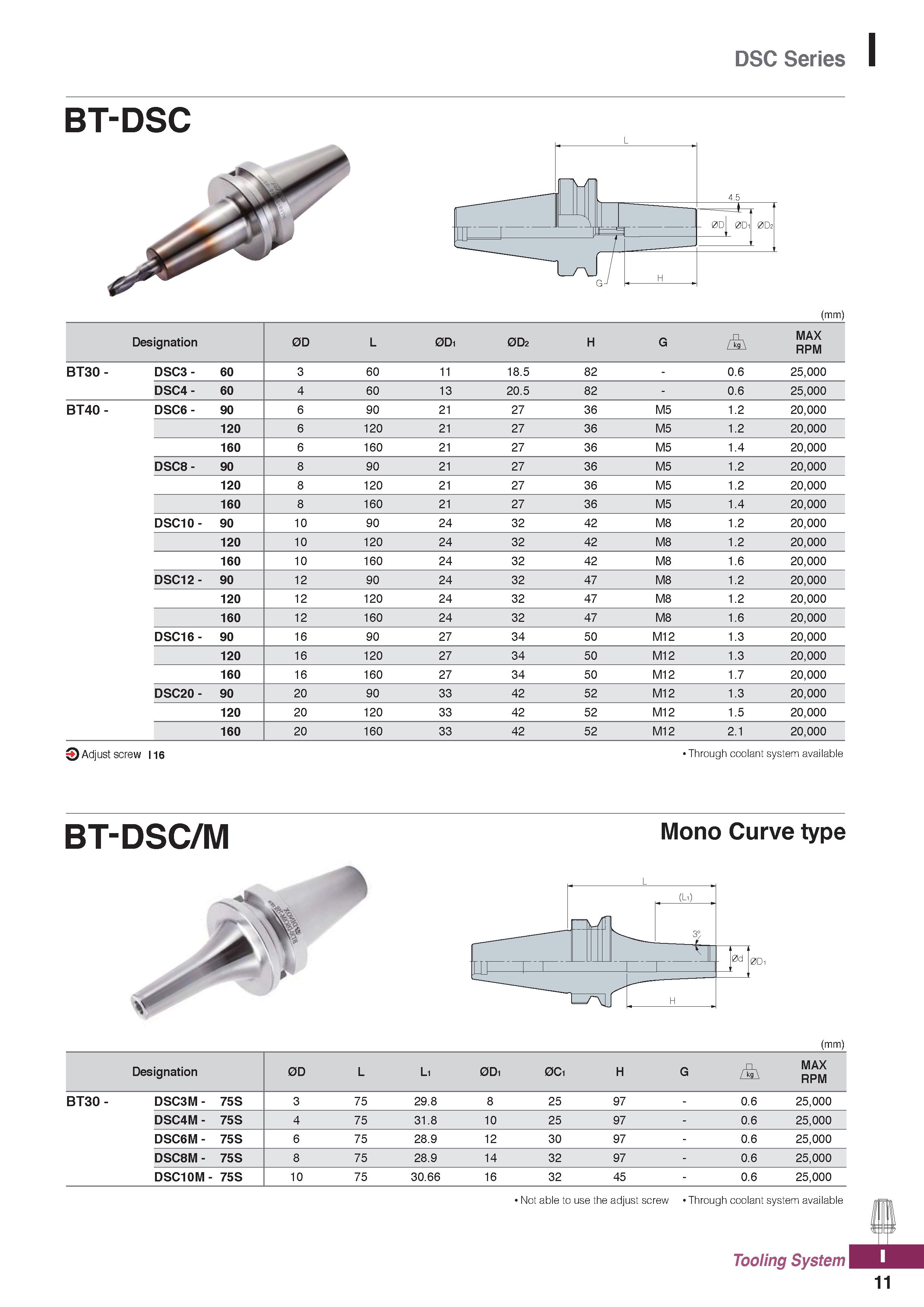

DSC Series bt-dsc (mm) Designation 0D L 0D1 0D2 H G MAX RPM BT30 - DSC3 - 60 3 60 11 18.5 82 - 0.6 25,000 DSC4 - 60 4 60 13 20.5 82 - 0.6 25,000 BT40 - DSC6 - 90 6 90 21 27 36 M5 1.2 20,000 120 6 120 21 27 36 M5 1.2 20,000 160 6 160 21 27 36 M5 1.4 20,000 DSC8 - 90 8 90 21 27 36 M5 1.2 20,000 120 8 120 21 27 36 M5 1.2 20,000 160 8 160 21 27 36 M5 1.4 20,000 DSC10- 90 10 90 24 32 42 M8 1.2 20,000 120 10 120 24 32 42 M8 1.2 20,000 160 10 160 24 32 42 M8 1.6 20,000 DSC12- 90 12 90 24 32 47 M8 1.2 20,000 120 12 120 24 32 47 M8 1.2 20,000 160 12 160 24 32 47 M8 1.6 20,000 DSC16- 90 16 90 27 34 50 M12 1.3 20,000 120 16 120 27 34 50 M12 1.3 20,000 160 16 160 27 34 50 M12 1.7 20,000 DSC20- 90 20 90 33 42 52 M12 1.3 20,000 120 20 120 33 42 52 M12 1.5 20,000 160 20 160 33 42 52 M12 2.1 20,000 2) Adjust screw 116 'Through coolant system available BT-DSC/M r Mono Curve type (mm) Designation 0D L Li 0D1 0C1 H G MAX RPM BT30- DSC3M- 75S 3 75 29.8 8 25 97 - 0.6 25,000 DSC4M- 75S 4 75 31.8 10 25 97 - 0.6 25,000 DSC6M- 75S 6 75 28.9 12 30 97 - 0.6 25,000 DSC8M- 75S 8 75 28.9 14 32 97 - 0.6 25,000 DSC10M - 75S 10 75 30.66 16 32 45 - 0.6 25,000 Not able to use the adjust screw Through coolant system available Tooling System 11
