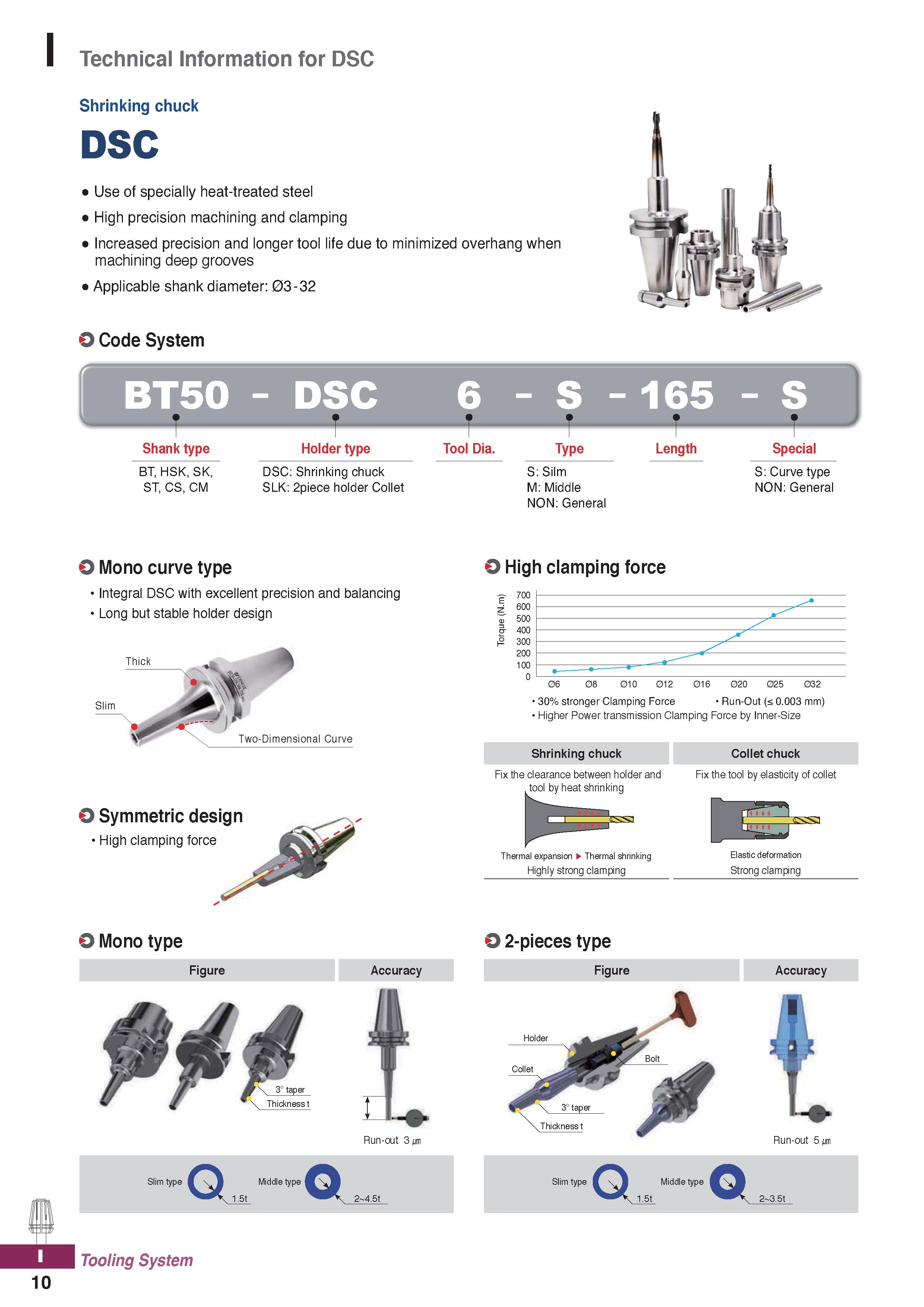

Technical Information for DSC Shrinking chuck DSC Use of specially heat-treated steel High precision machining and clamping Increased precision and longertool life due to minimized overhang when machining deep grooves Applicable shank diameter: 03-32 O Code System BT50 - DSC 6 - S - 165 - Shank type BT, HSK, SK, ST, CS, CM Holder type DSC: Shrinking chuck SLK: 2piece holder Collet Tool Dia. Type S: Silm M: Middle NON: General Length Special S: Curve type NON: General S O Mono curve type Integral DSC with excellent precision and balancing Long but stable holder design Thick Two-Dimensional Curve Symmetric design High clamping force O High clamping force 30% stronger Clamping Force Run-Out (s 0.003 mm) Higher Power transmission Clamping Force by Inner-Size Shrinking chuck Collet chuck Fix the clearance between holder and tool by heat shrinking Fix the tool by elasticity of collet Thermal expansion Thermal shrinking Highly strong clamping Elastic deformation Strong clamping Mono type O 2-pieces type Figure Accuracy Figure Accuracy
