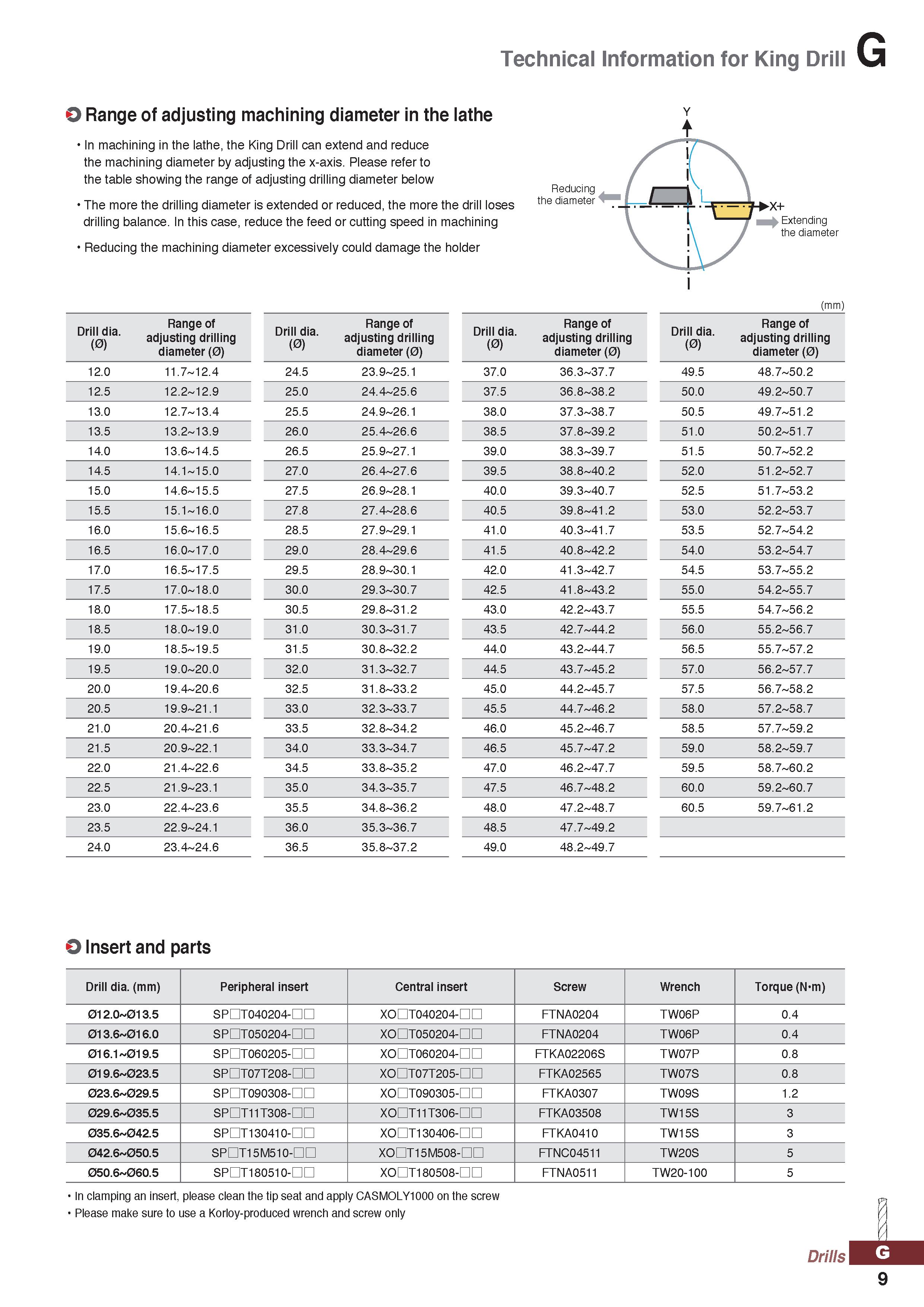

Technical Information for King Drill O Range of adjusting machining diameter in the lathe In machining in the lathe, the King Drill can extend and reduce the machining diameter by adjusting the x-axis. Please refer to the table showing the range of adjusting drilling diameter below The more the drilling diameter is extended or reduced, the more the drill loses drilling balance. In this case, reduce the feed or cutting speed in machining Reducing the machining diameter excessively could damage the holder (mm) Drill dia. (0) Range of adjusting drilling diameter (0) Drill dia. (0) Range of adjusting drilling diameter (0) Drill dia. (0) Range of adjusting drilling diameter (0) Drill dia. (0) Range of adjusting drilling diameter (0) 12.0 11.7-12.4 24.5 23.9-25.1 37.0 36.3-37.7 49.5 48.7-50.2 12.5 12.2-12.9 250 24.4-25.6 375 36.8-38.2 50.0 49.2-50.7 13.0 12.7-13.4 25.5 24.9-26.1 38.0 37.3-38.7 50.5 49.7-51.2 13.5 13.2-13.9 26.0 25.4-26.6 38.5 37.8-39.2 510 50.2-51.7 1 4.0 13.6-14.5 26.5 25.9-27.1 39.0 38.3-39.7 51.5 50.7-52.2 1 4.5 14.1-15.0 270 26.4-27.6 39.5 38.8-40.2 520 51.2-52.7 15.0 14.6-15.5 27.5 26.9-28.1 40.0 39.3-40.7 52.5 51.7-53.2 15.5 15.1-16.0 278 27.4-28.6 40.5 39.8-41.2 53.0 52.2-53.7 16.0 15.6-16.5 28.5 27.9-29.1 41.0 40.3-41.7 53.5 52.7-54.2 16.5 16.0-17.0 29.0 28.4-29.6 415 40.8-42.2 54.0 53.2-54.7 17.0 16.5-17.5 29.5 28.9-30.1 42.0 41.3-42.7 54.5 53.7-55.2 17.5 17.0-18.0 30.0 29.3-30.7 425 41.8-43.2 55.0 54.2-55.7 18.0 17.5-18.5 30.5 29.8-31.2 43.0 42.2-43.7 55.5 54.7-56.2 18.5 18.0-19.0 310 30.3-31.7 435 42.7-44.2 56.0 55.2-56.7 19.0 18.5-19.5 31.5 30.8-32.2 44.0 43.2-44.7 56.5 55.7-57.2 19.5 19.0-20.0 32.0 31.3-32.7 44.5 43.7-45.2 570 56.2-57.7 20.0 19.4-20.6 32.5 31.8-33.2 45.0 44.2-45.7 57.5 56.7-58.2 20.5 19.9-21.1 33.0 32.3-33.7 45.5 44.7-46.2 58.0 57.2-58.7 21.0 20.4-21.6 33.5 32.8-34.2 46.0 45.2-46.7 58.5 57.7-59.2 21.5 20.9-22.1 34.0 33.3-34.7 465 45.7-47.2 59.0 58.2-59.7 22.0 21.4-22.6 34.5 33.8-35.2 47.0 46.2-47.7 59.5 58.7-60.2 22.5 21.9-23.1 35.0 34.3-35.7 475 46.7-48.2 60.0 59.2-60.7 23.0 22.4-23.6 35.5 34.8-36.2 48.0 47.2-48.7 60.5 59.7-61.2 23.5 22.9-24.1 36.0 35.3-36.7 485 47.7-49.2 24.0 23.4-24.6 36.5 35.8-37.2 49.0 48.2-49.7 O Insert and parts In clamping an insert, please clean the tip seat and apply CASM0LY1000 on the screw Please make sure to use a Korloy-produced wrench and screw only Drills J. 9
