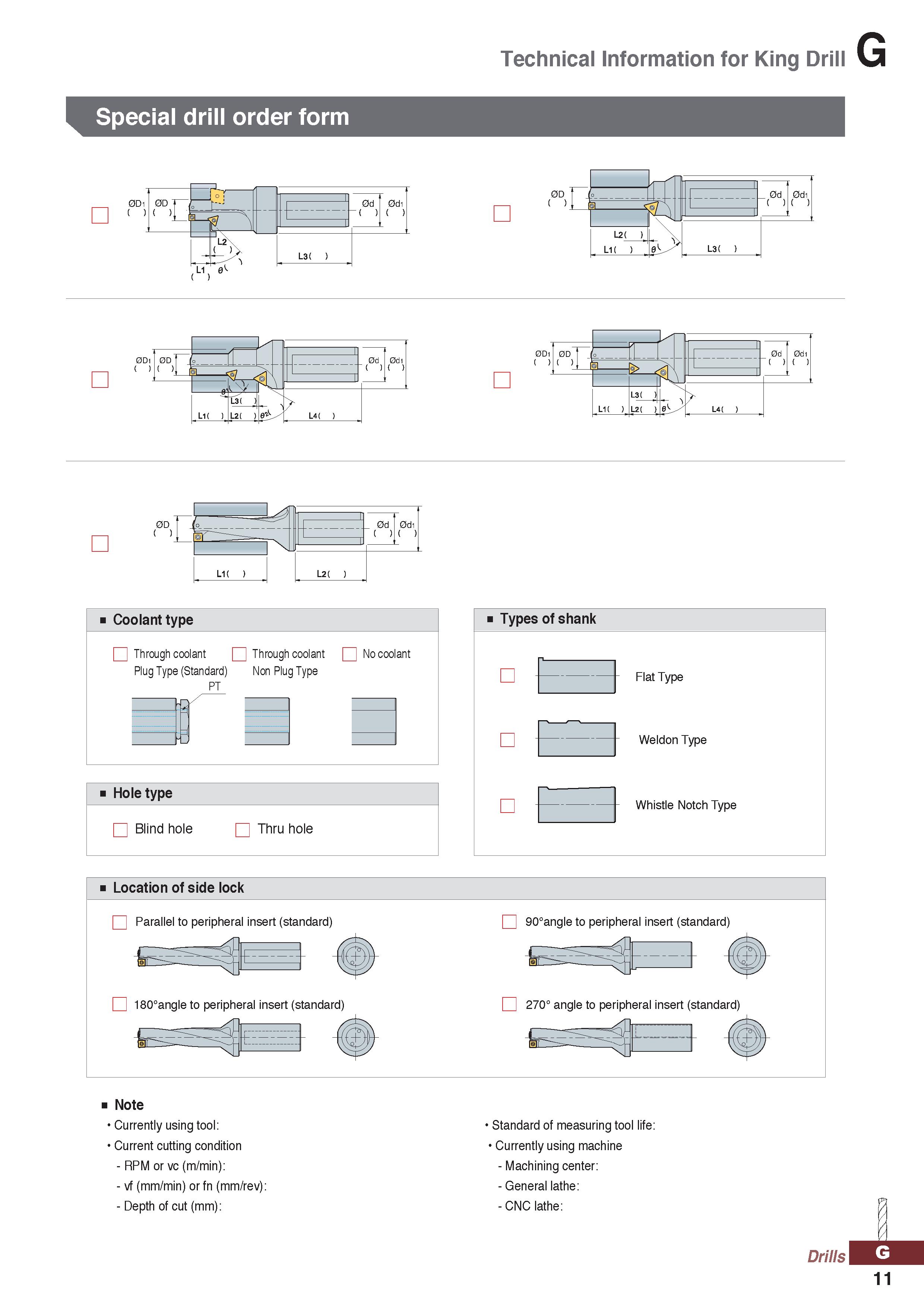

Technical Information for King Drill Special drill order form 0D ( ) 0D1 0D ( ) ( ) 0d 0di ( ) ) > ”1 I 1 0d 0di ) p > ( ) r- \ L1( ) L3( ) L2( y > L4( ) Coolant type Through coolant Q Through coolant Q No coolant Plug Type (Standard) Non Plug Type PT Hole type Blind hole Thru hole Types of shank p - Flat Type Weldon Type - Whistle Notch Type Location of side lock Parallel to peripheral insert (standard) I 90°angle to peripheral insert (standard) m I 180°angle to peripheral insert (standard) I I 270° angle to peripheral insert (standard) Note Currently using tool: Current cutting condition - RPM or vc (m/min): - vf (mm/min) or fn (mm/rev): - Depth of cut (mm): Standard of measuring tool life: Currently using machine - Machining center: - General lathe: - CNC lathe: Drills J. 11
