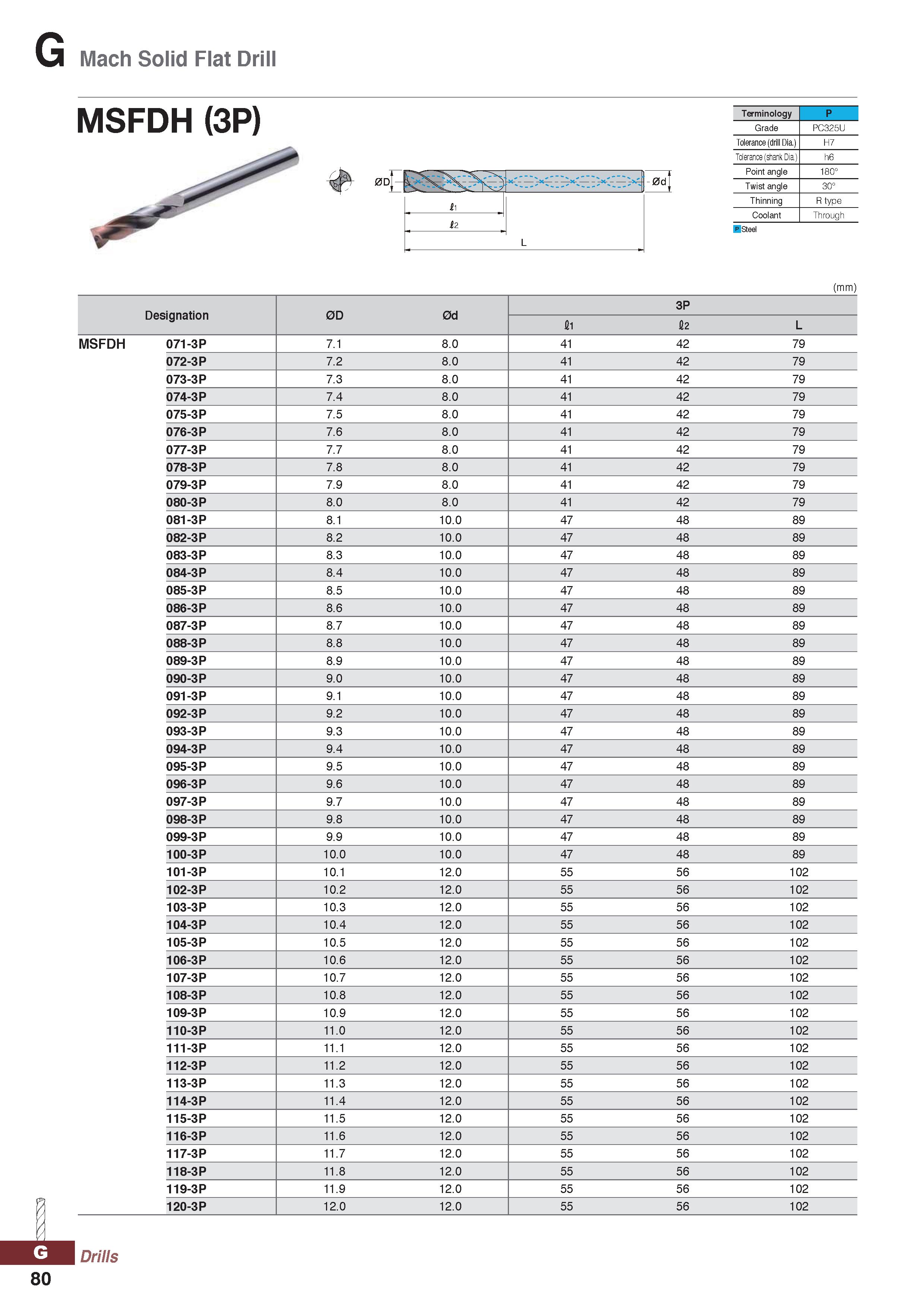

Mach Solid Flat Drill MSFDH (3P) 0d Terminology P Grade PC325U Tolerance (drill Dia.) H7 Tolerance (shank Dia.) h6 Point angle 180° Twist angle 30° Thinning R type Coolant Through p Steel (mm) Designation 0D 0d 3P ll l2 L MSFDH 071-3P 7.1 8.0 41 42 79 072-3P 7.2 8.0 41 42 79 073-3P 7.3 8.0 41 42 79 074-3P 7.4 8.0 41 42 79 075-3P 7.5 8.0 41 42 79 076-3P 7.6 8.0 41 42 79 077-3P 7.7 8.0 41 42 79 078-3P 7.8 8.0 41 42 79 079-3P 7.9 8.0 41 42 79 080-3P 8.0 8.0 41 42 79 081-3P 8.1 10.0 47 48 89 082-3P 8.2 10.0 47 48 89 083-3P 8.3 10.0 47 48 89 084-3P 8.4 10.0 47 48 89 085-3P 8.5 10.0 47 48 89 086-3P 8.6 10.0 47 48 89 087-3P 8.7 10.0 47 48 89 088-3P 8.8 10.0 47 48 89 089-3P 8.9 10.0 47 48 89 090-3P 9.0 10.0 47 48 89 091-3P 9.1 10.0 47 48 89 092-3P 9.2 10.0 47 48 89 093-3P 9.3 10.0 47 48 89 094-3P 9.4 10.0 47 48 89 095-3P 9.5 10.0 47 48 89 096-3P 9.6 10.0 47 48 89 097-3P 9.7 10.0 47 48 89 098-3P 9.8 10.0 47 48 89 099-3P 9.9 10.0 47 48 89 100-3P 10.0 10.0 47 48 89 101-3P 10.1 12.0 55 56 102 102-3P 10.2 12.0 55 56 102 103-3P 10.3 12.0 55 56 102 104-3P 10.4 12.0 55 56 102 105-3P 10.5 12.0 55 56 102 106-3P 10.6 12.0 55 56 102 107-3P 10.7 12.0 55 56 102 108-3P 10.8 12.0 55 56 102 109-3P 10.9 12.0 55 56 102 110-3P 11.0 12.0 55 56 102 111-3P 11.1 12.0 55 56 102 112-3P 11.2 12.0 55 56 102 113-3P 11.3 12.0 55 56 102 114-3P 11.4 12.0 55 56 102 115-3P 11.5 12.0 55 56 102 116-3P 11.6 12.0 55 56 102 117-3P 11.7 12.0 55 56 102 118-3P 11.8 12.0 55 56 102 119-3P 11.9 12.0 55 56 102 120-3P 12.0 12.0 55 56 102 .1 Drills 80
