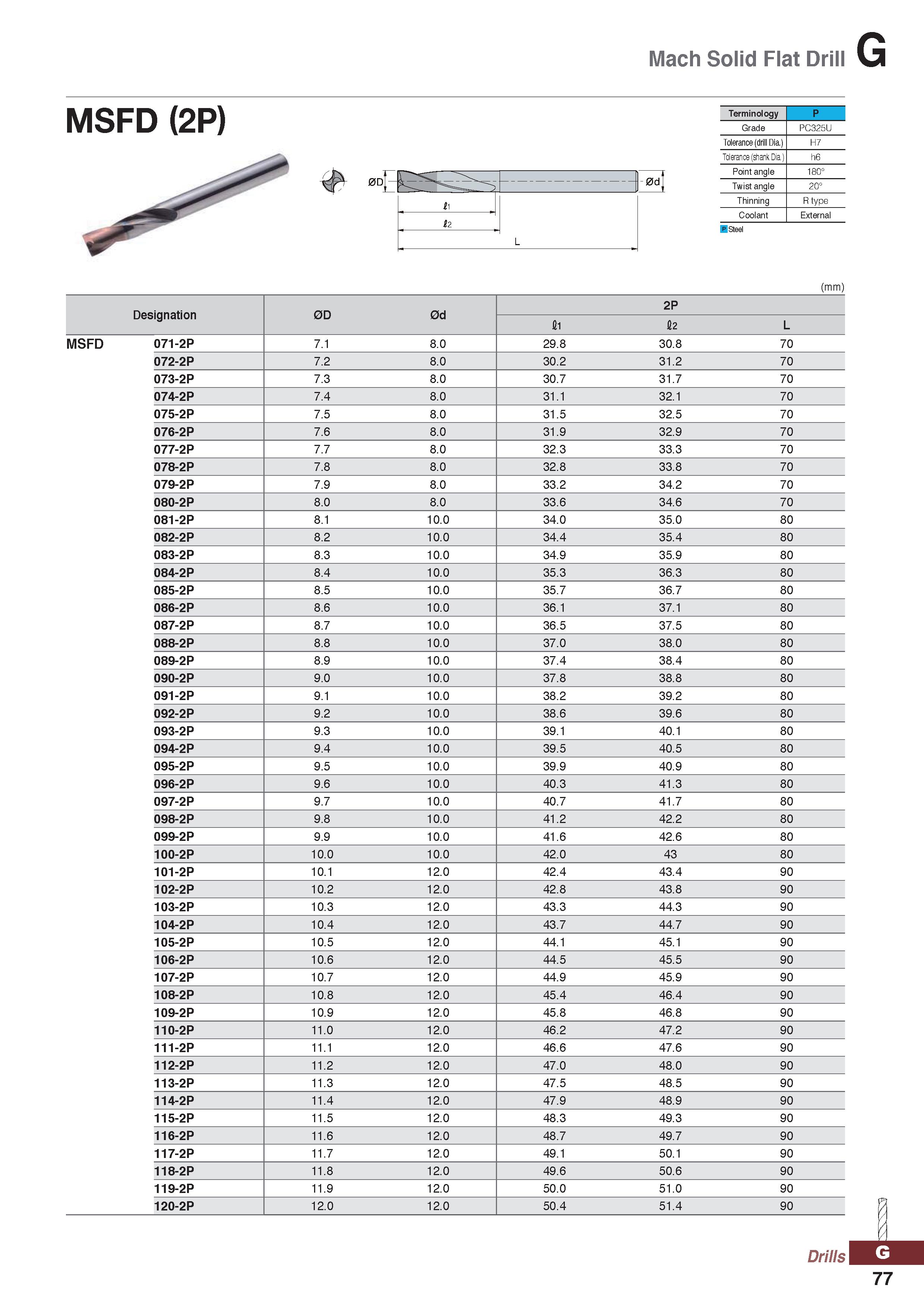

Mach Solid Flat Drill MSFD (2P) MSFD 0D 0 0d Terminology P Grade PC325U Tolerance (drill Dia.) H7 Tolerance (shank Dia.) h6 Point angle 180° Twist angle 20° Thinning R type Coolant External p Steel (mm) signation 0D 0d 2P li l2 L 071-2P 7.1 8.0 29.8 30.8 70 072-2P 7.2 8.0 30.2 31.2 70 073-2P 7.3 8.0 30.7 31.7 70 074-2P 7.4 8.0 31.1 32.1 70 075-2P 7.5 8.0 31.5 32.5 70 076-2P 7.6 8.0 31.9 32.9 70 077-2P 7.7 8.0 32.3 33.3 70 078-2P 7.8 8.0 32.8 33.8 70 079-2P 7.9 8.0 33.2 34.2 70 080-2P 8.0 8.0 33.6 34.6 70 081-2P 8.1 10.0 34.0 35.0 80 082-2P 8.2 10.0 34.4 35.4 80 083-2P 8.3 10.0 34.9 35.9 80 084-2P 8.4 10.0 35.3 36.3 80 085-2P 8.5 10.0 35.7 36.7 80 086-2P 8.6 10.0 36.1 37.1 80 087-2P 8.7 10.0 36.5 37.5 80 088-2P 8.8 10.0 37.0 38.0 80 089-2P 8.9 10.0 37.4 38.4 80 090-2P 9.0 10.0 37.8 38.8 80 091-2P 9.1 10.0 38.2 39.2 80 092-2P 9.2 10.0 38.6 39.6 80 093-2P 9.3 10.0 39.1 40.1 80 094-2P 9.4 10.0 39.5 40.5 80 095-2P 9.5 10.0 39.9 40.9 80 096-2P 9.6 10.0 40.3 41.3 80 097-2P 9.7 10.0 40.7 41.7 80 098-2P 9.8 10.0 41.2 42.2 80 099-2P 9.9 10.0 41.6 42.6 80 100-2P 10.0 10.0 42.0 43 80 101-2P 10.1 12.0 42.4 43.4 90 102-2P 10.2 12.0 42.8 43.8 90 103-2P 10.3 12.0 43.3 44.3 90 104-2P 10.4 12.0 43.7 44.7 90 105-2P 10.5 12.0 44.1 45.1 90 106-2P 10.6 12.0 44.5 45.5 90 107-2P 10.7 12.0 44.9 45.9 90 108-2P 10.8 12.0 45.4 46.4 90 109-2P 10.9 12.0 45.8 46.8 90 110-2P 11.0 12.0 46.2 47.2 90 111-2P 11.1 12.0 46.6 47.6 90 112-2P 11.2 12.0 47.0 48.0 90 113-2P 11.3 12.0 47.5 48.5 90 114-2P 11.4 12.0 47.9 48.9 90 115-2P 11.5 12.0 48.3 49.3 90 116-2P 11.6 12.0 48.7 49.7 90 117-2P 11.7 12.0 49.1 50.1 90 118-2P 11.8 12.0 49.6 50.6 90 119-2P 11.9 12.0 50.0 51.0 90 120-2P 12.0 12.0 50.4 51.4 90 Drills J. 77
