1078 Каталог KORLOY 2020 Инструмент и оснастка для станков по металлу Стр.G78

Каталог KORLOY 2020 Инструмент для станков по металлу Стр. G78 1078 Lab2u

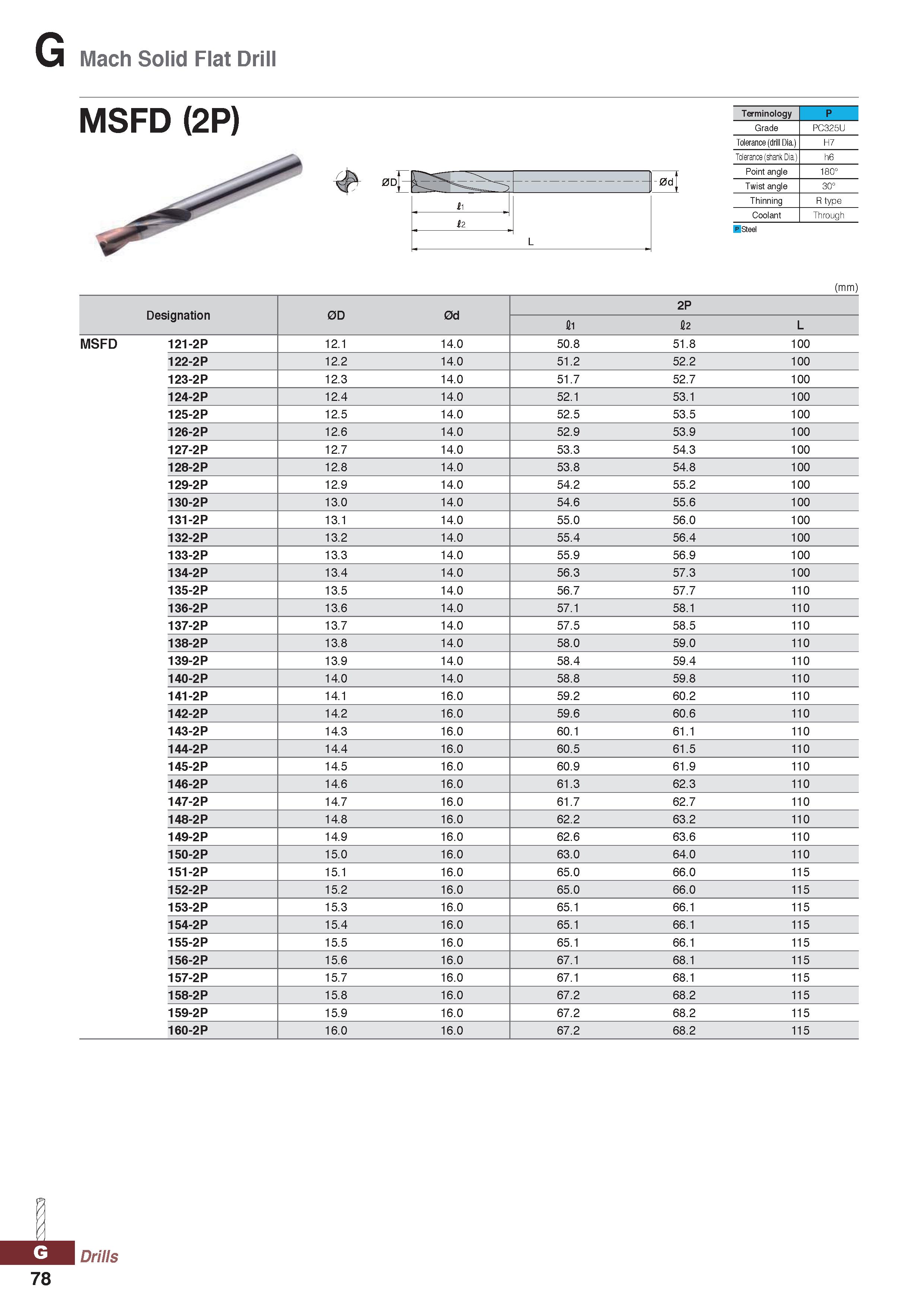

Mach Solid Flat Drill MSFD (2P) Terminology P Grade PC325U Tolerance (drill Dia.) H7 Tolerance (shank Dia.) h6 Point angle 18C° Twist angle 3C° Thinning R type Coolant Through p Steel (mm) Designation 0D 0d 2P 11 12 L MSFD 121-2P 12.1 14.0 50.8 51.8 1 00 122-2P 12.2 14.0 51.2 52.2 1 00 123-2P 12.3 14.0 51.7 52.7 1 00 124-2P 12.4 14.0 52.1 53.1 1 00 125-2P 12.5 14.0 52.5 53.5 1 00 126-2P 12.6 14.0 52.9 53.9 1 00 127-2P 12.7 14.0 53.3 54.3 1 00 128-2P 12.8 14.0 53.8 54.8 1 00 129-2P 12.9 14.0 54.2 55.2 1 00 130-2P 13.0 14.0 54.6 55.6 1 00 131-2P 13.1 14.0 55.0 56.0 1 00 132-2P 13.2 14.0 55.4 56.4 1 00 133-2P 13.3 14.0 55.9 56.9 1 00 134-2P 13.4 14.0 56.3 57.3 1 00 135-2P 13.5 14.0 56.7 57.7 110 136-2P 13.6 14.0 57.1 58.1 110 137-2P 13.7 14.0 57.5 58.5 110 138-2P 13.8 14.0 58.0 59.0 110 139-2P 13.9 14.0 58.4 59.4 110 140-2P 14.0 14.0 58.8 59.8 110 141-2P 14.1 16.0 59.2 60.2 110 142-2P 14.2 16.0 59.6 60.6 110 143-2P 14.3 16.0 60.1 61.1 110 144-2P 14.4 16.0 60.5 61.5 110 145-2P 14.5 16.0 60.9 61.9 110 146-2P 14.6 16.0 61.3 62.3 110 147-2P 14.7 16.0 61.7 62.7 110 148-2P 14.8 16.0 62.2 63.2 110 149-2P 14.9 16.0 62.6 63.6 110 150-2P 15.0 16.0 63.0 64.0 110 151-2P 15.1 16.0 65.0 66.0 115 152-2P 15.2 16.0 65.0 66.0 115 153-2P 15.3 16.0 65.1 66.1 115 154-2P 15.4 16.0 65.1 66.1 115 155-2P 15.5 16.0 65.1 66.1 115 156-2P 15.6 16.0 67.1 68.1 115 157-2P 15.7 16.0 67.1 68.1 115 158-2P 15.8 16.0 67.2 68.2 115 159-2P 15.9 16.0 67.2 68.2 115 160-2P 16.0 16.0 67.2 68.2 115 JL Drills 78
