1042 Каталог KORLOY 2020 Инструмент и оснастка для станков по металлу Стр.G42

Каталог KORLOY 2020 Инструмент для станков по металлу Стр. G42 1042 Lab2u

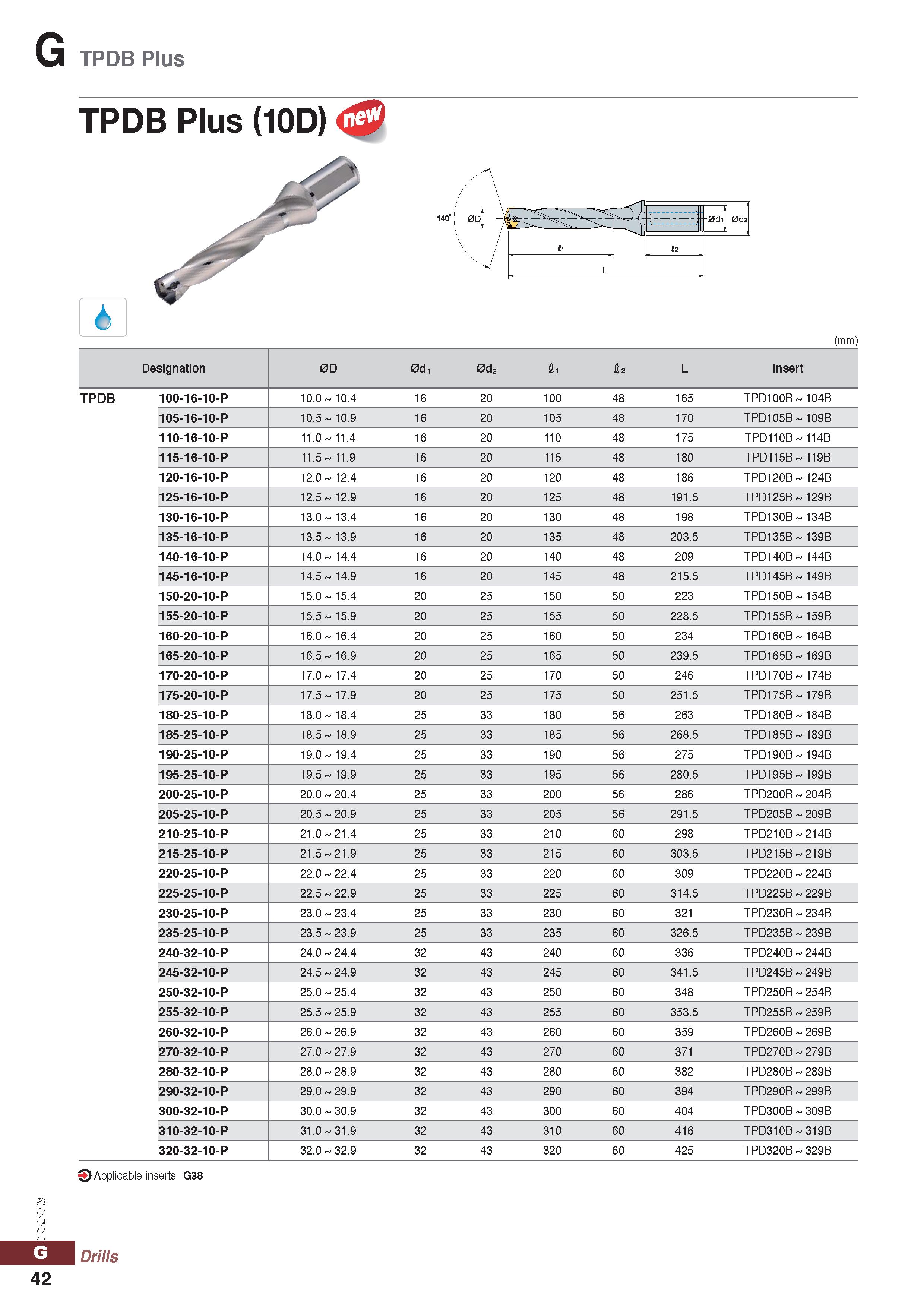

TPDB Plus TPDB Plus (10D) (mm) Designation 0D 0d, 0d2 li S2 L Insert TPDB 100-16-10-P 10.0 - 10.4 16 20 100 48 165 TPD100B - 104B 105-16-10-P 10.5 - 10.9 16 20 105 48 170 TPD105B - 109B 110-16-10-P 11.0 - 11.4 16 20 110 48 175 TPD110B - 114B 115-16-10-P 11.5 - 11.9 16 20 115 48 180 TPD115B - 119B 120-16-10-P 12.0 - 12.4 16 20 120 48 186 TPD120B - 124B 125-16-10-P 12.5 - 12.9 16 20 125 48 191.5 TPD125B - 129B 130-16-10-P 13.0 - 13.4 16 20 130 48 198 TPD130B - 134B 135-16-10-P 13.5 - 13.9 16 20 135 48 203.5 TPD135B - 139B 140-16-10-P 14.0 - 14.4 16 20 140 48 209 TPD140B - 144B 145-16-10-P 14.5 - 14.9 16 20 145 48 215.5 TPD145B - 149B 150-20-10-P 15.0 - 15.4 20 25 150 50 223 TPD150B - 154B 155-20-10-P 15.5 - 15.9 20 25 155 50 228.5 TPD155B - 159B 160-20-10-P 16.0 - 16.4 20 25 160 50 234 TPD160B - 164B 165-20-10-P 16.5 - 16.9 20 25 165 50 239.5 TPD165B - 169B 170-20-10-P 17.0 - 17.4 20 25 170 50 246 TPD170B - 174B 175-20-10-P 17.5 - 17.9 20 25 175 50 251.5 TPD175B - 179B 180-25-10-P 18.0 - 18.4 25 33 180 56 263 TPD180B - 184B 185-25-10-P 18.5 - 18.9 25 33 185 56 268.5 TPD185B - 189B 190-25-10-P 19.0 - 19.4 25 33 190 56 275 TPD190B - 194B 195-25-10-P 19.5 - 19.9 25 33 195 56 280.5 TPD195B - 199B 200-25-10-P 20.0 - 20.4 25 33 200 56 286 TPD200B - 204B 205-25-10-P 20.5 - 20.9 25 33 205 56 291.5 TPD205B - 209B 210-25-10-P 21.0 - 21.4 25 33 210 60 298 TPD210B - 214B 215-25-10-P 21.5 - 21.9 25 33 215 60 303.5 TPD215B - 219B 220-25-10-P 22.0 - 22.4 25 33 220 60 309 TPD220B - 224B 225-25-10-P 22.5 - 22.9 25 33 225 60 314.5 TPD225B - 229B 230-25-10-P 23.0 - 23.4 25 33 230 60 321 TPD230B - 234B 235-25-10-P 23.5 - 23.9 25 33 235 60 326.5 TPD235B - 239B 240-32-10-P 24.0 - 24.4 32 43 240 60 336 TPD240B - 244B 245-32-10-P 24.5 - 24.9 32 43 245 60 341.5 TPD245B - 249B 250-32-10-P 25.0 - 25.4 32 43 250 60 348 TPD250B - 254B 255-32-10-P 25.5 - 25.9 32 43 255 60 353.5 TPD255B - 259B 260-32-10-P 26.0 - 26.9 32 43 260 60 359 TPD260B - 269B 270-32-10-P 27.0 - 27.9 32 43 270 60 371 TPD270B - 279B 280-32-10-P 28.0 - 28.9 32 43 280 60 382 TPD280B - 289B 290-32-10-P 29.0 - 29.9 32 43 290 60 394 TPD290B - 299B 300-32-10-P 30.0 - 30.9 32 43 300 60 404 TPD300B - 309B 310-32-10-P 31.0 - 31.9 32 43 310 60 416 TPD310B - 319B 320-32-10-P 32.0 - 32.9 32 43 320 60 425 TPD320B - 329B O Applicable inserts G38 L Drills 42
