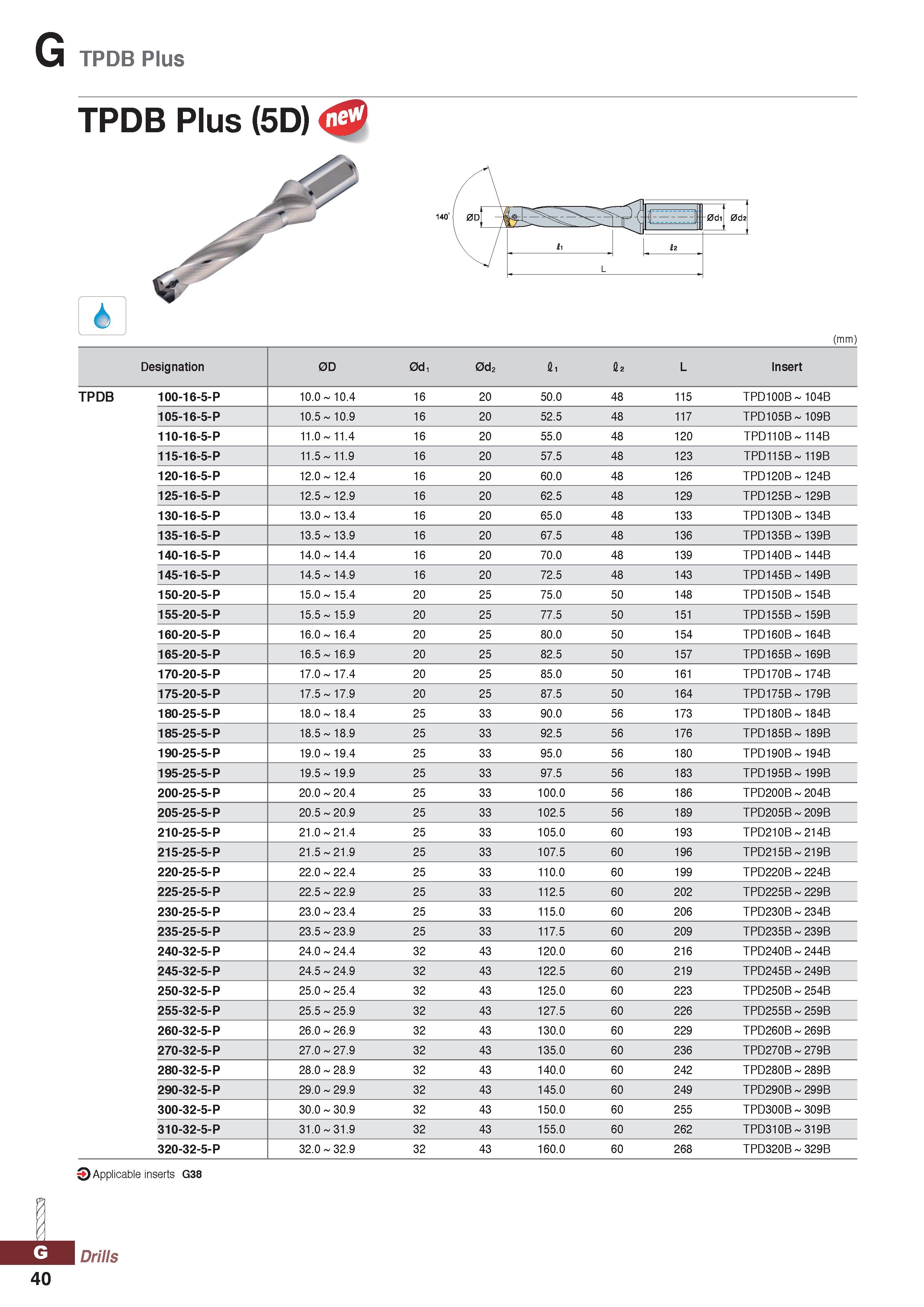

TPDB Plus TPDB Plus (5D) (mm) Designation 0D 0d, 0d2 Si S2 L Insert TPDB 100-16-5-P 10.0 - 10.4 16 20 50.0 48 115 TPD100B - 104B 105-16-5-P 10.5 - 10.9 16 20 52.5 48 117 TPD105B - 109B 110-16-5-P 11.0 - 11.4 16 20 55.0 48 120 TPD110B - 114B 115-16-5-P 11.5 - 11.9 16 20 57.5 48 123 TPD115B - 119B 120-16-5-P 12.0 - 12.4 16 20 60.0 48 126 TPD120B - 124B 125-16-5-P 12.5 - 12.9 16 20 62.5 48 129 TPD125B - 129B 130-16-5-P 13.0 - 13.4 16 20 65.0 48 133 TPD130B - 134B 135-16-5-P 13.5 - 13.9 16 20 67.5 48 136 TPD135B - 139B 140-16-5-P 14.0 - 14.4 16 20 70.0 48 139 TPD140B - 144B 145-16-5-P 14.5 - 14.9 16 20 72.5 48 143 TPD145B - 149B 150-20-5-P 15.0 - 15.4 20 25 75.0 50 148 TPD150B - 154B 155-20-5-P 15.5 - 15.9 20 25 77.5 50 151 TPD155B - 159B 160-20-5-P 16.0 - 16.4 20 25 80.0 50 154 TPD160B - 164B 165-20-5-P 16.5 - 16.9 20 25 82.5 50 157 TPD165B - 169B 170-20-5-P 17.0 - 17.4 20 25 85.0 50 161 TPD170B - 174B 175-20-5-P 17.5 - 17.9 20 25 87.5 50 164 TPD175B - 179B 180-25-5-P 18.0 - 18.4 25 33 90.0 56 173 TPD180B - 184B 185-25-5-P 18.5 - 18.9 25 33 92.5 56 176 TPD185B - 189B 190-25-5-P 19.0 - 19.4 25 33 95.0 56 180 TPD190B - 194B 195-25-5-P 19.5 - 19.9 25 33 97.5 56 183 TPD195B - 199B 200-25-5-P 20.0 - 20.4 25 33 100.0 56 186 TPD200B - 204B 205-25-5-P 20.5 - 20.9 25 33 102.5 56 189 TPD205B - 209B 210-25-5-P 21.0 - 21.4 25 33 105.0 60 193 TPD210B - 214B 215-25-5-P 21.5 - 21.9 25 33 107.5 60 196 TPD215B - 219B 220-25-5-P 22.0 - 22.4 25 33 110.0 60 199 TPD220B - 224B 225-25-5-P 22.5 - 22.9 25 33 112.5 60 202 TPD225B - 229B 230-25-5-P 23.0 - 23.4 25 33 115.0 60 206 TPD230B - 234B 235-25-5-P 23.5 - 23.9 25 33 117.5 60 209 TPD235B - 239B 240-32-5-P 24.0 - 24.4 32 43 120.0 60 216 TPD240B - 244B 245-32-5-P 24.5 - 24.9 32 43 122.5 60 219 TPD245B - 249B 250-32-5-P 25.0 - 25.4 32 43 125.0 60 223 TPD250B - 254B 255-32-5-P 25.5 - 25.9 32 43 127.5 60 226 TPD255B - 259B 260-32-5-P 26.0 - 26.9 32 43 130.0 60 229 TPD260B - 269B 270-32-5-P 27.0 - 27.9 32 43 135.0 60 236 TPD270B - 279B 280-32-5-P 28.0 - 28.9 32 43 140.0 60 242 TPD280B - 289B 290-32-5-P 29.0 - 29.9 32 43 145.0 60 249 TPD290B - 299B 300-32-5-P 30.0 - 30.9 32 43 150.0 60 255 TPD300B - 309B 310-32-5-P 31.0 - 31.9 32 43 155.0 60 262 TPD310B - 319B 320-32-5-P 32.0 - 32.9 32 43 160.0 60 268 TPD320B - 329B 0 Applicable inserts G38 -L Drills 40
