1039 Каталог KORLOY 2020 Инструмент и оснастка для станков по металлу Стр.G39

Каталог KORLOY 2020 Инструмент для станков по металлу Стр. G39 1039 Lab2u

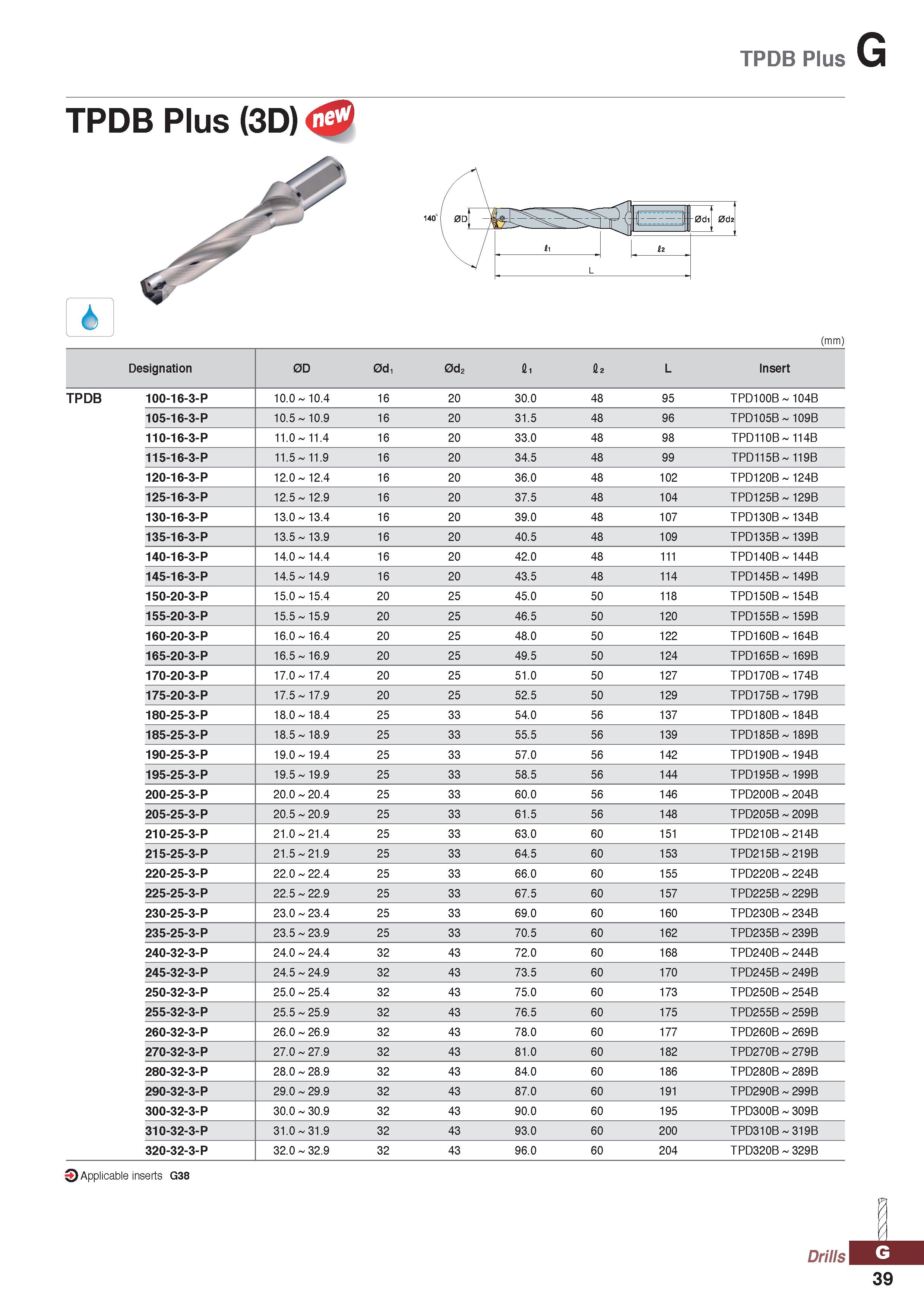

TPDB Plus TPDB Plus (3D) & (mm) Designation 0D 0d, 0d2 Si S2 L Insert TPDB 100-16-3-P 10.0 - 10.4 16 20 30.0 48 95 TPD100B - 104B 105-16-3-P 10.5 - 10.9 16 20 31.5 48 96 TPD105B - 109B 110-16-3-P 11.0 - 11.4 16 20 33.0 48 98 TPD110B - 114B 115-16-3-P 11.5 - 11.9 16 20 34.5 48 99 TPD115B - 119B 120-16-3-P 12.0 - 12.4 16 20 36.0 48 102 TPD120B - 124B 125-16-3-P 12.5 - 12.9 16 20 37.5 48 104 TPD125B - 129B 130-16-3-P 13.0 - 13.4 16 20 39.0 48 107 TPD130B - 134B 135-16-3-P 13.5 - 13.9 16 20 40.5 48 109 TPD135B - 139B 140-16-3-P 14.0 - 14.4 16 20 42.0 48 111 TPD140B - 144B 145-16-3-P 14.5 - 14.9 16 20 43.5 48 114 TPD145B - 149B 150-20-3-P 15.0 - 15.4 20 25 45.0 50 118 TPD150B - 154B 155-20-3-P 15.5 - 15.9 20 25 46.5 50 120 TPD155B - 159B 160-20-3-P 16.0 - 16.4 20 25 48.0 50 122 TPD160B - 164B 165-20-3-P 16.5 - 16.9 20 25 49.5 50 124 TPD165B - 169B 170-20-3-P 17.0 - 17.4 20 25 51.0 50 127 TPD170B - 174B 175-20-3-P 17.5 - 17.9 20 25 52.5 50 129 TPD175B - 179B 180-25-3-P 18.0 - 18.4 25 33 54.0 56 137 TPD180B - 184B 185-25-3-P 18.5 - 18.9 25 33 55.5 56 139 TPD185B - 189B 190-25-3-P 19.0 - 19.4 25 33 57.0 56 142 TPD190B - 194B 195-25-3-P 19.5 - 19.9 25 33 58.5 56 144 TPD195B - 199B 200-25-3-P 20.0 - 20.4 25 33 60.0 56 146 TPD200B - 204B 205-25-3-P 20.5 - 20.9 25 33 61.5 56 148 TPD205B - 209B 210-25-3-P 21.0 - 21.4 25 33 63.0 60 151 TPD210B - 214B 215-25-3-P 21.5 - 21.9 25 33 64.5 60 153 TPD215B - 219B 220-25-3-P 22.0 - 22.4 25 33 66.0 60 155 TPD220B - 224B 225-25-3-P 22.5 - 22.9 25 33 67.5 60 157 TPD225B - 229B 230-25-3-P 23.0 - 23.4 25 33 69.0 60 160 TPD230B - 234B 235-25-3-P 23.5 - 23.9 25 33 70.5 60 162 TPD235B - 239B 240-32-3-P 24.0 - 24.4 32 43 72.0 60 168 TPD240B - 244B 245-32-3-P 24.5 - 24.9 32 43 73.5 60 170 TPD245B - 249B 250-32-3-P 25.0 - 25.4 32 43 75.0 60 173 TPD250B - 254B 255-32-3-P 25.5 - 25.9 32 43 76.5 60 175 TPD255B - 259B 260-32-3-P 26.0 - 26.9 32 43 78.0 60 177 TPD260B - 269B 270-32-3-P 27.0 - 27.9 32 43 81.0 60 182 TPD270B - 279B 280-32-3-P 28.0 - 28.9 32 43 84.0 60 186 TPD280B - 289B 290-32-3-P 29.0 - 29.9 32 43 87.0 60 191 TPD290B - 299B 300-32-3-P 30.0 - 30.9 32 43 90.0 60 195 TPD300B - 309B 310-32-3-P 31.0 - 31.9 32 43 93.0 60 200 TPD310B - 319B 320-32-3-P 32.0 - 32.9 32 43 96.0 60 204 TPD320B - 329B O Applicable inserts G38 X Drill 39
