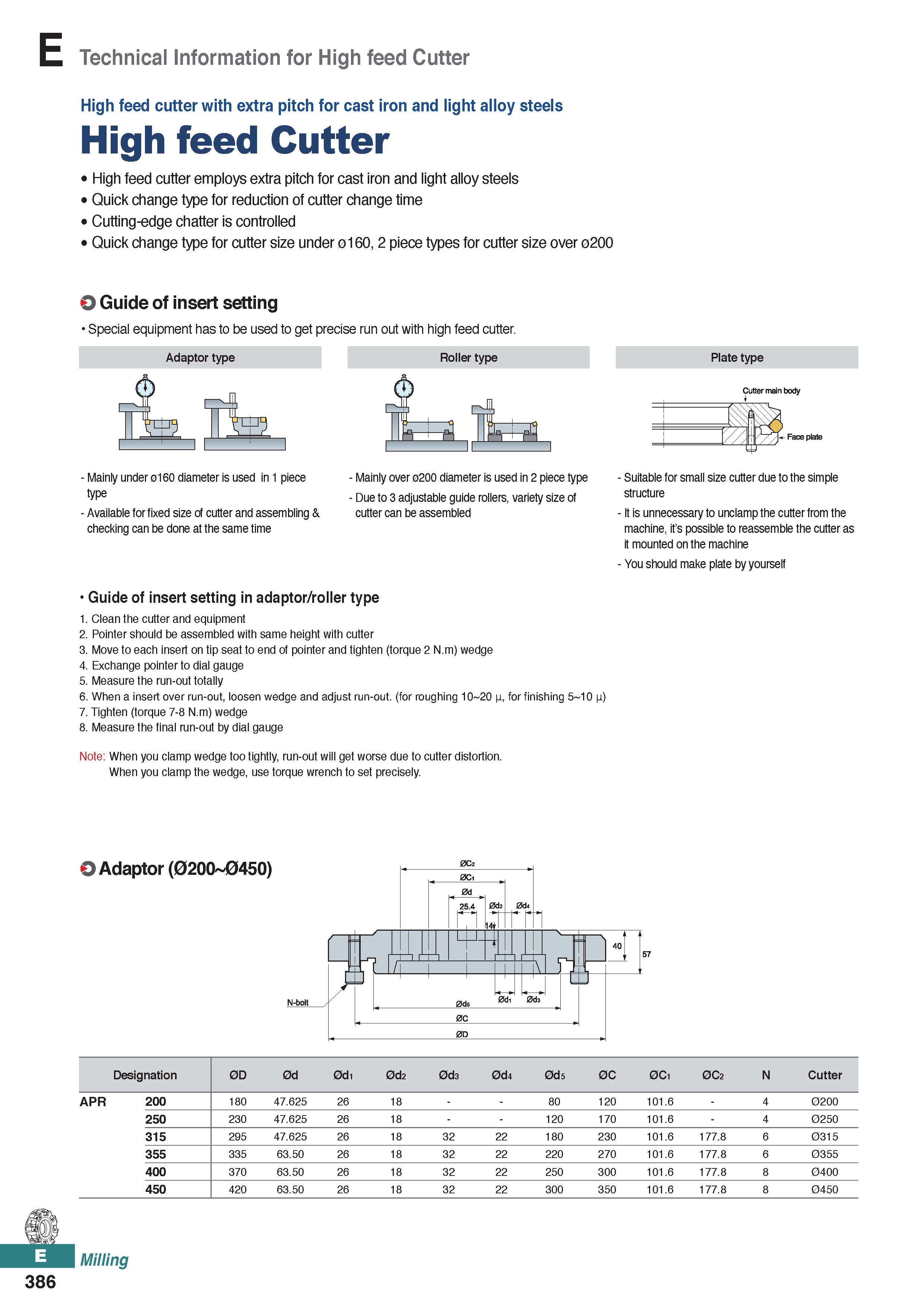

Technical Information for High feed Cutter High feed cutter with extra pitch for cast iron and light alloy steels High feed Cutter High feed cutter employs extra pitch for cast iron and light alloy steels Quick change type for reduction of cutter change time Cutting-edge chatter is controlled Quick change type for cutter size under 0160, 2 piece types for cutter size over 0200 9 Guide of insert setting Special equipment has to be used to get precise run out with high feed cutter. Adaptor type Roller type Plate type J H EH Cutter main body Face plate - Mainly under 0160 diameter is used in 1 piece type - Available for fixed size of cutter and assembling & checking can be done at the same time - Mainly over 0200 diameter is used in 2 piece type - Due to 3 adjustable guide rollers, variety size of cutter can be assembled - Suitable for small size cutter due to the simple structure - It is unnecessary to unclamp the cutter from the machine, it’s possible to reassemble the cutter as it mounted on the machine - You should make plate by yourself Guide of insert setting in adaptor/roller type 1. Clean the cutter and equipment 2. Pointer should be assembled with same height with cutter 3. Move to each insert on tip seat to end of pointer and tighten (torque 2 N.m) wedge 4. Exchange pointer to dial gauge 5. Measure the run-out totally 6. When a insert over run-out, loosen wedge and adjust run-out. (for roughing 10 20 n, for finishing 5 10 n) 7. Tighten (torque 7-8 N.m) wedge 8. Measure the final run-out by dial gauge Note: When you clamp wedge too tightly, run-out will get worse due to cutter distortion. When you clamp the wedge, use torque wrench to set precisely. O Adaptor (0200 0450) rh Designation 0D 0d 0d1 0d2 0d3 0d4 0d5 0C 0C1 0C2 N Cutter APR 200 180 47.625 26 18 80 120 101.6 - 4 0200 250 230 47.625 26 18 120 170 101.6 - 4 0250 315 295 47.625 26 18 32 22 180 230 101.6 177.8 6 0315 355 335 63.50 26 18 32 22 220 270 101.6 177.8 6 0355 400 370 63.50 26 18 32 22 250 300 101.6 177.8 8 0400 450 420 63.50 26 18 32 22 300 350 101.6 177.8 8 0450 386
