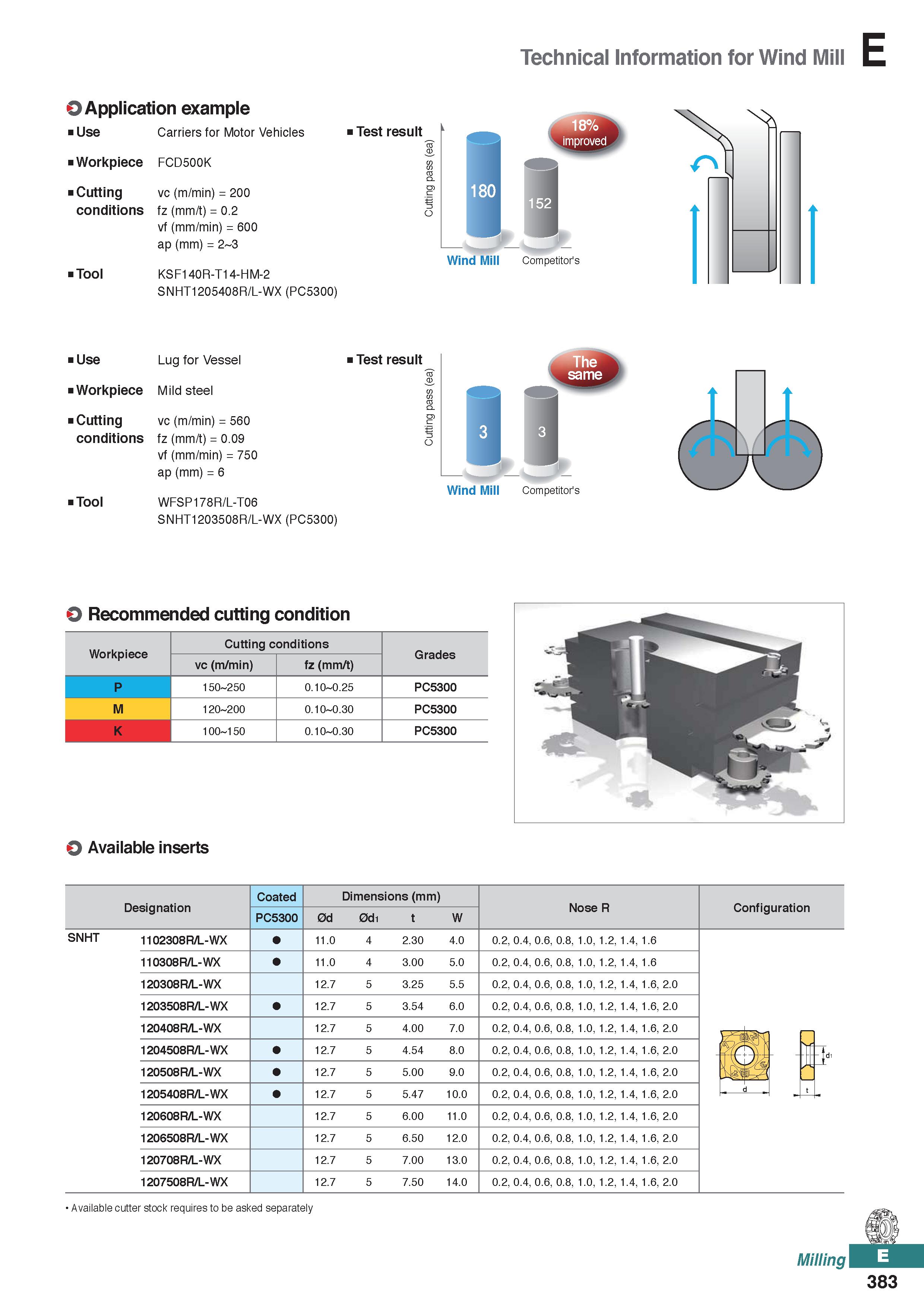

Technical Information for Wind Mill O Application example Carriers for Motor Vehicles Use Workpiece Cutting conditions Tool Test result FCD500K vc (m/min) = 200 fz (mm/t) = 0.2 vf (mm/min) = 600 ap (mm) = 2 3 KSF140R-T14-HM-2 SNHT1205408R/L-WX (PC5300) Wind Mill Competitor's Use Workpiece Cutting Lug for Vessel Mild steel Test result vc (m/min) = 560 conditions fz (mm/t) = 0.09 vf (mm/min) = 750 ap (mm) = 6 Tool WFSP178R/L-T06 SNHT1203508R/L-WX (PC5300) f The same iTi Wind Mill Competitor's O Recommended cutting condition Workpiece Cutting conditions Grades vc (m/min) fz (mm/t) P 150-250 0.10-0.25 PC5300 M 120-200 0.10-0.30 PC5300 K 100-150 0.10-0.30 PC5300 O Available inserts Designation Coated PC5300 Dimensions (mm) 0d 0d1 t W Nose R Configuration SNHT 1102308R/L-WX 11.0 2.30 4.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1. 110308R/L-WX 11.0 3.00 5.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6 120308R/L-WX 12.7 3.25 5.5 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 1203508R/L-WX 12.7 3.54 6.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 120408R/L-WX 12.7 4.00 7.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 1204508R/L-WX 12.7 4.54 8.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 120508R/L-WX 12.7 5.00 9.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 1205408R/L-WX 12.7 5.47 10.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 120608R/L-WX 12.7 6.00 11.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 1206508R/L-WX 12.7 6.50 12.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 120708R/L-WX 12.7 7.00 13.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 1207508R/L-WX 12.7 7.50 14.0 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 2.0 E& Available cutter stock requires to be asked separately Milling 383 4 4 5 5 5 5 5 5 5 5 5 5
