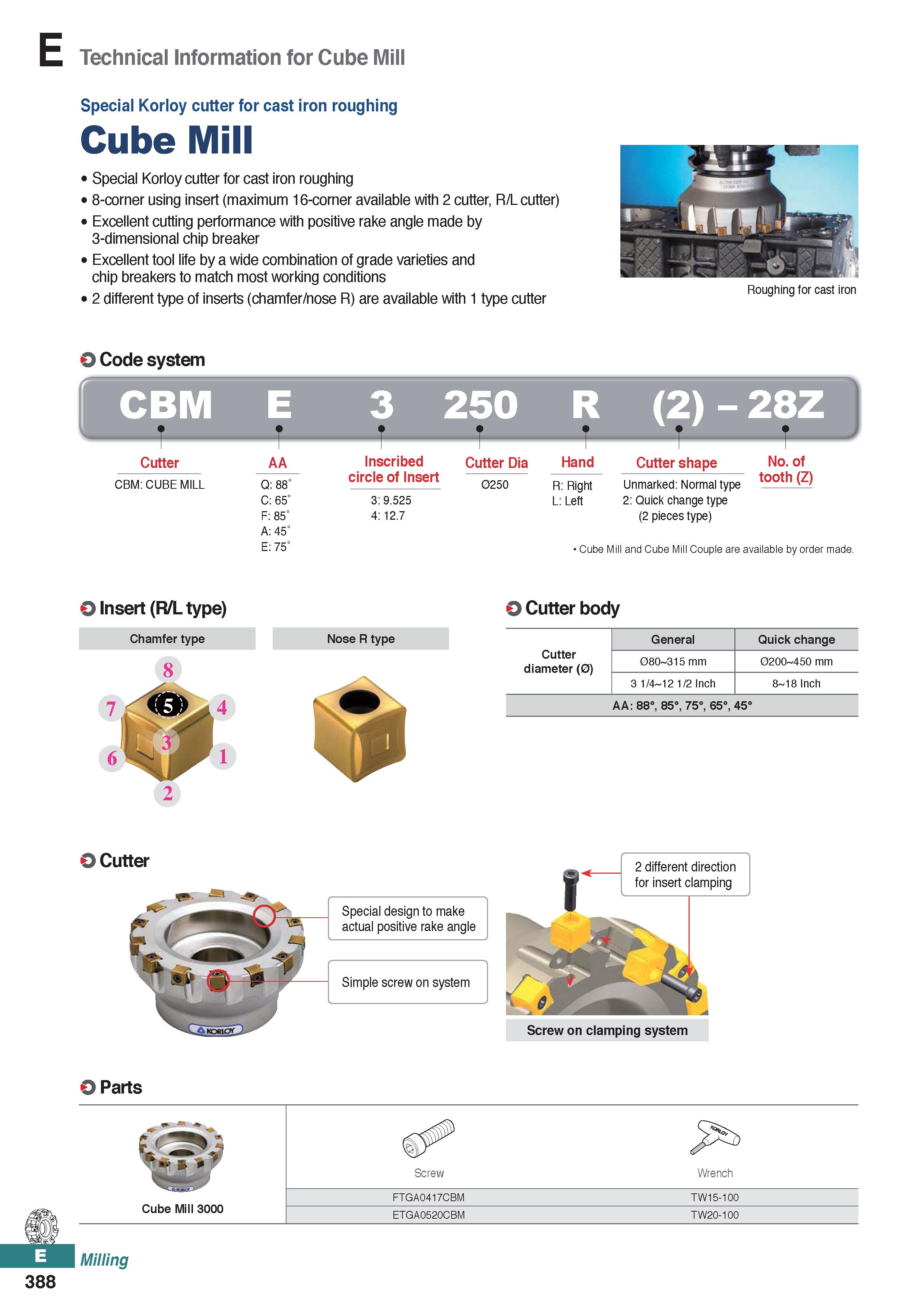

Technical Information for Cube Mill Special Korloy cutter for cast iron roughing Cube Mill Special Korloy cutter for cast iron roughing 8-corner using insert (maximum 16-corner available with 2 cutter, R/L cutter) Excellent cutting performance with positive rake angle made by 3-dimensional chip breaker Excellent tool life by a wide combination of grade varieties and chip breakers to match most working conditions 2 different type of inserts (chamfer/nose R) are available with 1 type cutter Roughing for cast iron O Code system Cutter CBM: CUBE MILL 3 250 R (2)-28Z Cutter Dia 0250 Cutter shape Unmarked: Normal type 2: Quick change type (2 pieces type) No. of tooth (Z) AA Q: 88° C: 65° F: 85° A: 45° E: 75° Inscribed circle of Insert 3: 9.525 4: 12.7 Hand R: Right L: Left Cube Mill and Cube Mill Couple are available by order made. O Insert (R/L type) Chamfer type Nose R type 8 O Cutter body Cutter diameter (0) General Quick change 080 315 mm 0200 450 mm 3 1/4 12 1/2 Inch 8 18 Inch AA: 88°, 85°, 75°, 65°, 45° O Cutter Special design to make actual positive rake angle Simple screw on system 2 different direction for insert clamping Screw on clamping system O Parts Cube Mill 3000 Screw Wrench FTGA0417CBM TW15-100 ETGA0520CBM TW20-100 388 Milling
