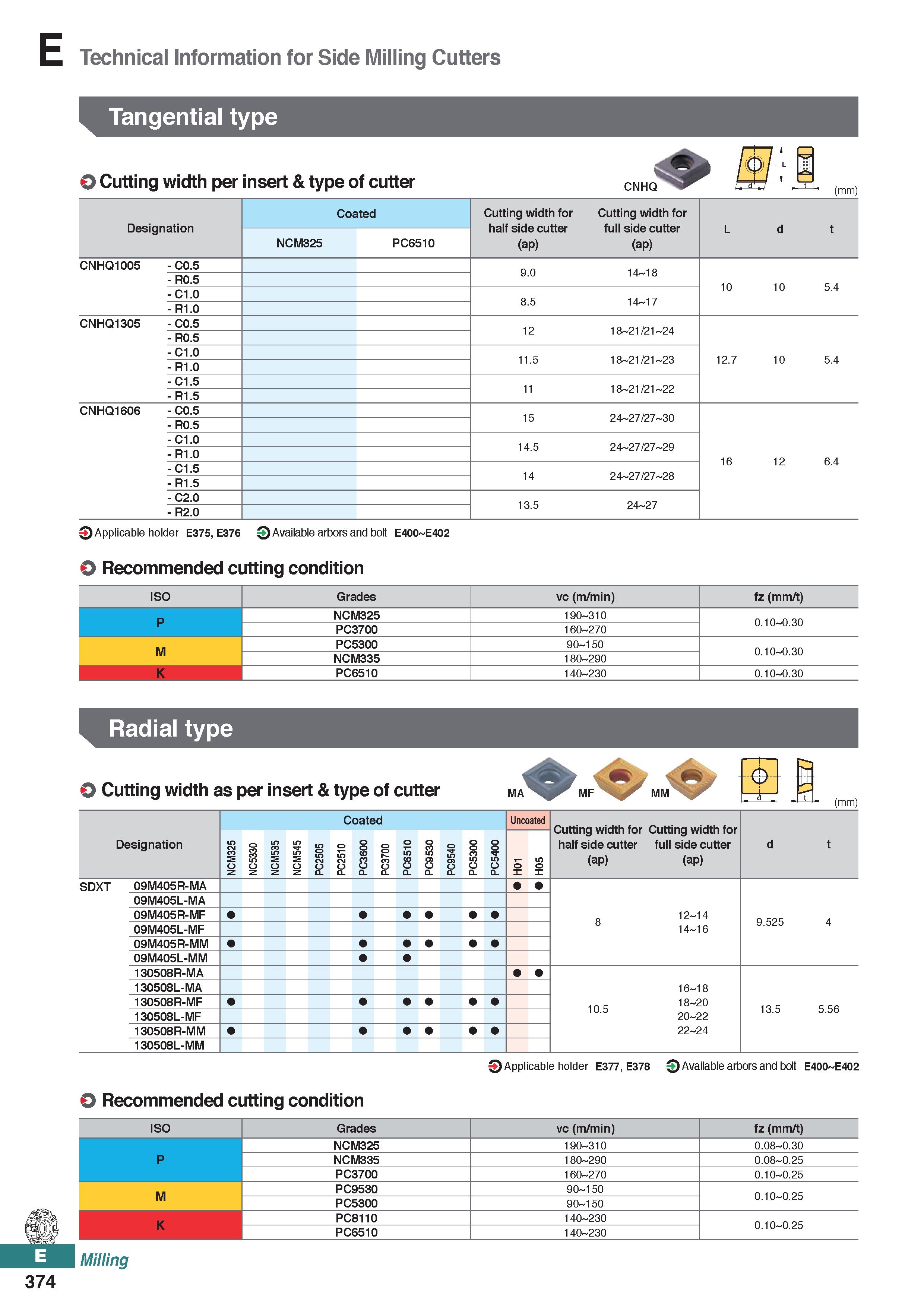

E Technical Information for Side Milling Cutters Tangential type o Cutting width per insert & type of cutter CNHQ (mm) Designation Coated Cutting width for Cutting width for half side cutter full side cutter (ap) (ap) L d t NCM325 PC6510 CNHQ1005 - C0.5 9.0 14 18 10 10 5.4 - R0.5 - C1.0 8.5 14 17 - R1.0 CNHQ1305 - C0.5 12 18 21/21 24 12.7 10 5.4 - R0.5 - C1.0 11.5 18 21/21 23 - R1.0 - C1.5 11 18 21/21 22 - R1.5 CNHQ1606 - C0.5 15 24 27/27 30 16 12 6.4 - R0.5 - C1.0 14.5 24 27/27 29 - R1.0 - C1.5 14 24 27/27 28 - R1.5 - C2.0 13.5 24 27 - R2.0 Q Applicable holder E375, E376 O Available arbors and bolt E400 E402 0 Recommended cutting condition ISO Grades vc (m/min) fz (mm/t) P NCM325 190 310 0.10 0.30 PC3700 160 270 M PC5300 90 150 0.10 0.30 NCM335 180 290 K PC6510 140 230 0.10 0.30 Radial type 0 Cutting width as per insert & type of cutter m 0- (mm) Designation Coated Uncoated Cutting width for Cutting width for half side cutter full side cutter (ap) (ap) d t NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 H01 H05 SDXT 09M405R-MA 8 12 14 8 14 16 9.525 4 09M405L-MA 09M405R-MF 09M405L-MF 09M405R-MM 09M405L-MM 130508R-MA 16 18 105 18 20 . 20 22 22 24 13.5 5.56 130508L-MA 130508R-MF 130508L-MF 130508R-MM 130508L-MM 0 Applicable holder E377, E378 Q Available arbors and bolt E400 E402 O Recommended cutting condition ISO Grades vc (m/min) fz (mm/t) P NCM325 190 310 0.08 0.30 NCM335 180 290 0.08 0.25 PC3700 160 270 0.10 0.25 M PC9530 90 150 0.10 0.25 PC5300 90 150 K PC8110 140 230 0.10 0.25 PC6510 140 230 374 Milling
