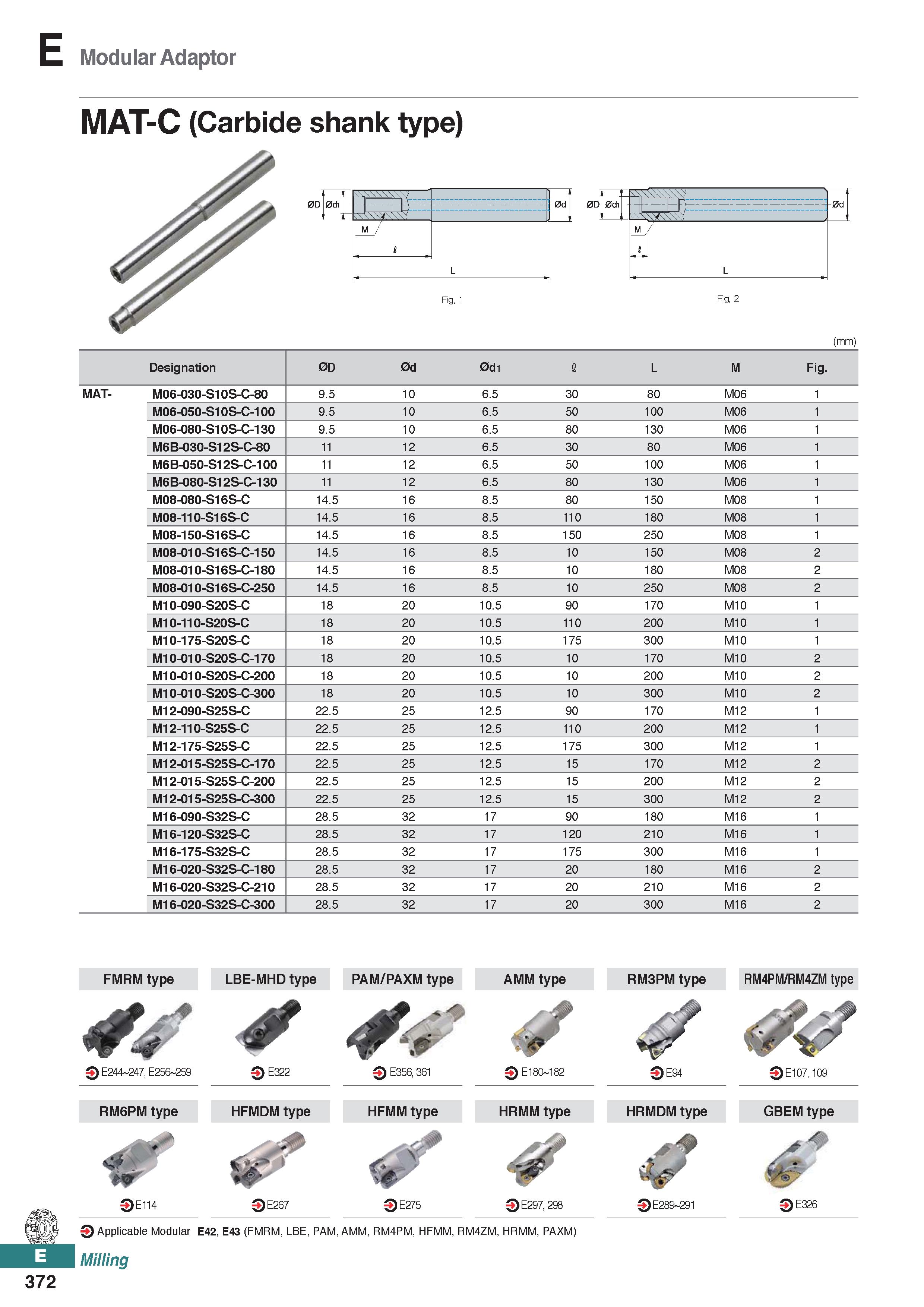

Modular Adaptor MAT-C (Carbide shank type) Fig. 1 Fig. 2 (mm) Designation 0D 0d 0d1 I L M Fig. MAT- M06-030-S10S-C-80 9.5 10 6.5 30 80 M06 1 M06-050-S10S-C-100 9.5 10 6.5 50 100 M06 1 M06-080-S10S-C-130 9.5 10 6.5 80 130 M06 1 M6B-030-S12S-C-80 11 12 6.5 30 80 M06 1 M6B-050-S12S-C-100 11 12 6.5 50 100 M06 1 M6B-080-S12S-C-130 11 12 6.5 80 130 M06 1 M08-080-S16S-C 14.5 16 8.5 80 150 M08 1 M08-110-S16S-C 14.5 16 8.5 110 180 M08 1 M08-150-S16S-C 14.5 16 8.5 150 250 M08 1 M08-010-S16S-C-150 14.5 16 8.5 10 150 M08 2 M08-010-S16S-C-180 14.5 16 8.5 10 180 M08 2 M08-010-S16S-C-250 14.5 16 8.5 10 250 M08 2 M10-090-S20S-C 18 20 10.5 90 170 M10 1 M10-110-S20S-C 18 20 10.5 110 200 M10 1 M10-175-S20S-C 18 20 10.5 175 300 M10 1 M10-010-S20S-C-170 18 20 10.5 10 170 M10 2 M10-010-S20S-C-200 18 20 10.5 10 200 M10 2 M10-010-S20S-C-300 18 20 10.5 10 300 M10 2 M12-090-S25S-C 22.5 25 12.5 90 170 M12 1 M12-110-S25S-C 22.5 25 12.5 110 200 M12 1 M12-175-S25S-C 22.5 25 12.5 175 300 M12 1 M12-015-S25S-C-170 22.5 25 12.5 15 170 M12 2 M12-015-S25S-C-200 22.5 25 12.5 15 200 M12 2 M12-015-S25S-C-300 22.5 25 12.5 15 300 M12 2 M16-090-S32S-C 28.5 32 17 90 180 M16 1 M16-120-S32S-C 28.5 32 17 120 210 M16 1 M16-175-S32S-C 28.5 32 17 175 300 M16 1 M16-020-S32S-C-180 28.5 32 17 20 180 M16 2 M16-020-S32S-C-210 28.5 32 17 20 210 M16 2 M16-020-S32S-C-300 28.5 32 17 20 300 M16 2 FMRM type LBE-MHD type PAM/PAXM type AMM type RM3PM type RM4PM/RM4ZM type Q E244 247, E256 259 0E114 0 E322 0 E356, 361 0 E180 182 O E94 0E267 0 E275 0 E297, 298 'I, 0E289 291 0 Applicable Modular E42, E43 (FMRM, LBE, PAM, AMM, RM4PM, HFMM, RM4ZM, HRMM, PAXM) Milling 372 0 E107, 109 RM6PM type HFMDM type HFMM type HRMM type HRMDM type GBEM type 0 E326
