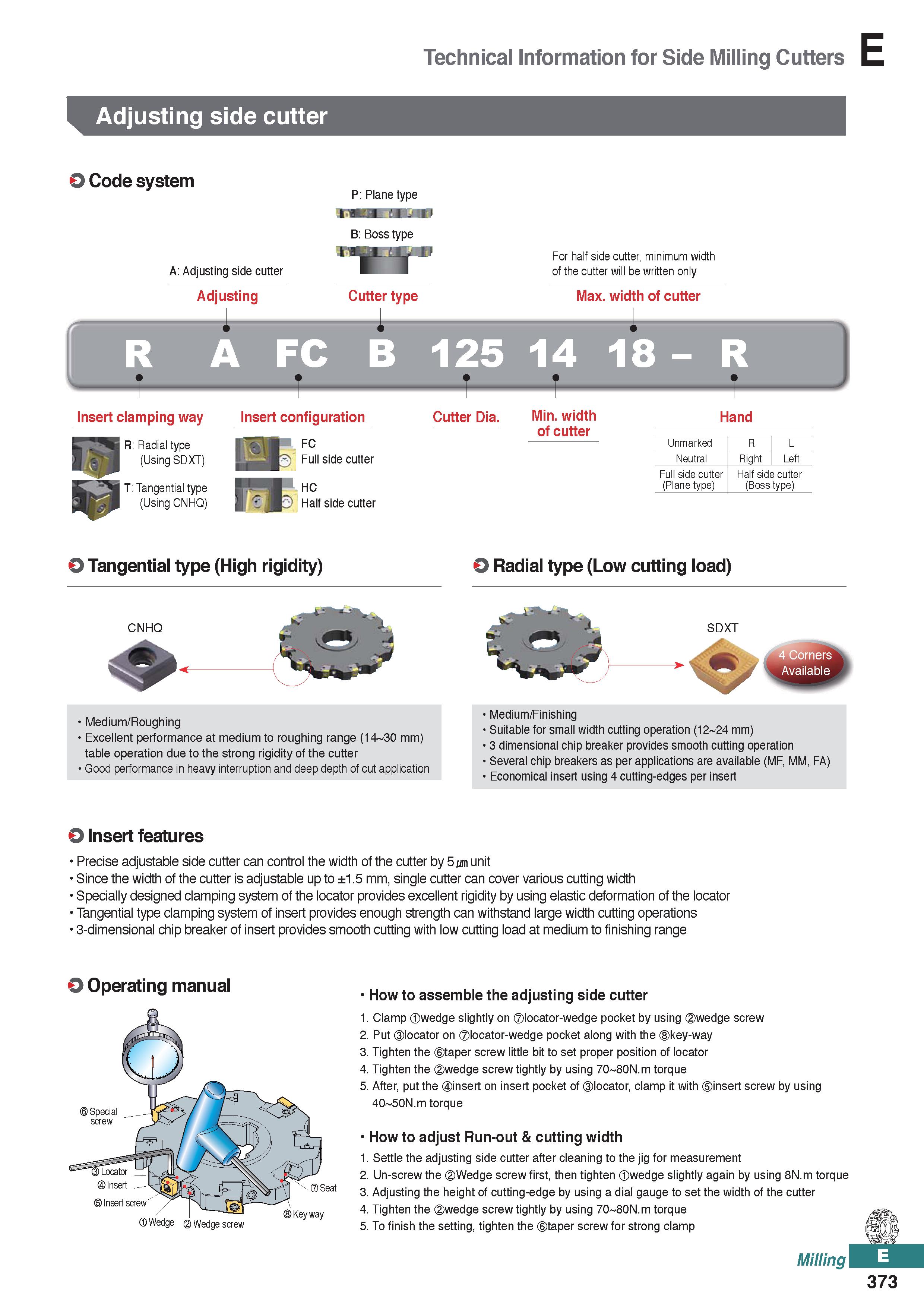

Technical Information for Side Milling Cutters Adjusting side cutter O Code system A: Adjusting side cutter Adjusting P: Plane type nuEfliiff B: Boss type Cutter type For half side cutter, minimum width of the cutter will be written only Max. width of cutter R A FC B WM 125 H 14 18 - R Insert clamping way Insert configuration Cutter Dia. Min. width Hand R: Radial type (Using SDXT) T: Tangential type (Using CNHQ) FC Full side cutter HC ' Half side cutter Unmarked R L Neutral Right Left Full side cutter Half side cutter (Plane type) (Boss type) O Tangential type (High rigidity) O Radial type (Low cutting load) Medium/Roughing Excellent performance at medium to roughing range (14 30 mm) table operation due to the strong rigidity of the cutter Good performance in heavy interruption and deep depth of cut application Medium/Finishing Suitable for small width cutting operation (12 24 mm) 3 dimensional chip breaker provides smooth cutting operation Several chip breakers as per applications are available (MF, MM, FA) Economical insert using 4 cutting-edges per insert 9 Insert features Precise adjustable side cutter can control the width of the cutter by 5 m unit Since the width of the cutter is adjustable up to ±1.5 mm, single cutter can cover various cutting width Specially designed clamping system of the locator provides excellent rigidity by using elastic deformation of the locator Tangential type clamping system of insert provides enough strength can withstand large width cutting operations 3-dimensional chip breaker of insert provides smooth cutting with low cutting load at medium to finishing range O Operating manual Howto assemble the adjusting side cutter 1. Clamp wedge slightly on locator-wedge pocket by using wedge screw 2. Put locator on locator-wedge pocket along with the key-way 3. Tighten the taper screw little bit to set proper position of locator 4. Tighten the wedge screw tightly by using 70 80N.m torque 5. After, put the insert on insert pocket of locator, clamp it with insert screw by using 40 50N.m torque How to adjust Run-out & cutting width 1. Settle the adjusting side cutter after cleaning to the jig for measurement 2. Un-screw the Wedge screw first, then tighten wedge slightly again by using 8N.m torque 3. Adjusting the height of cutting-edge by using a dial gauge to set the width of the cutter 4. Tighten the wedge screw tightly by using 70 80N.m torque 5. To finish the setting, tighten the taper screw for strong clamp Milling 373
