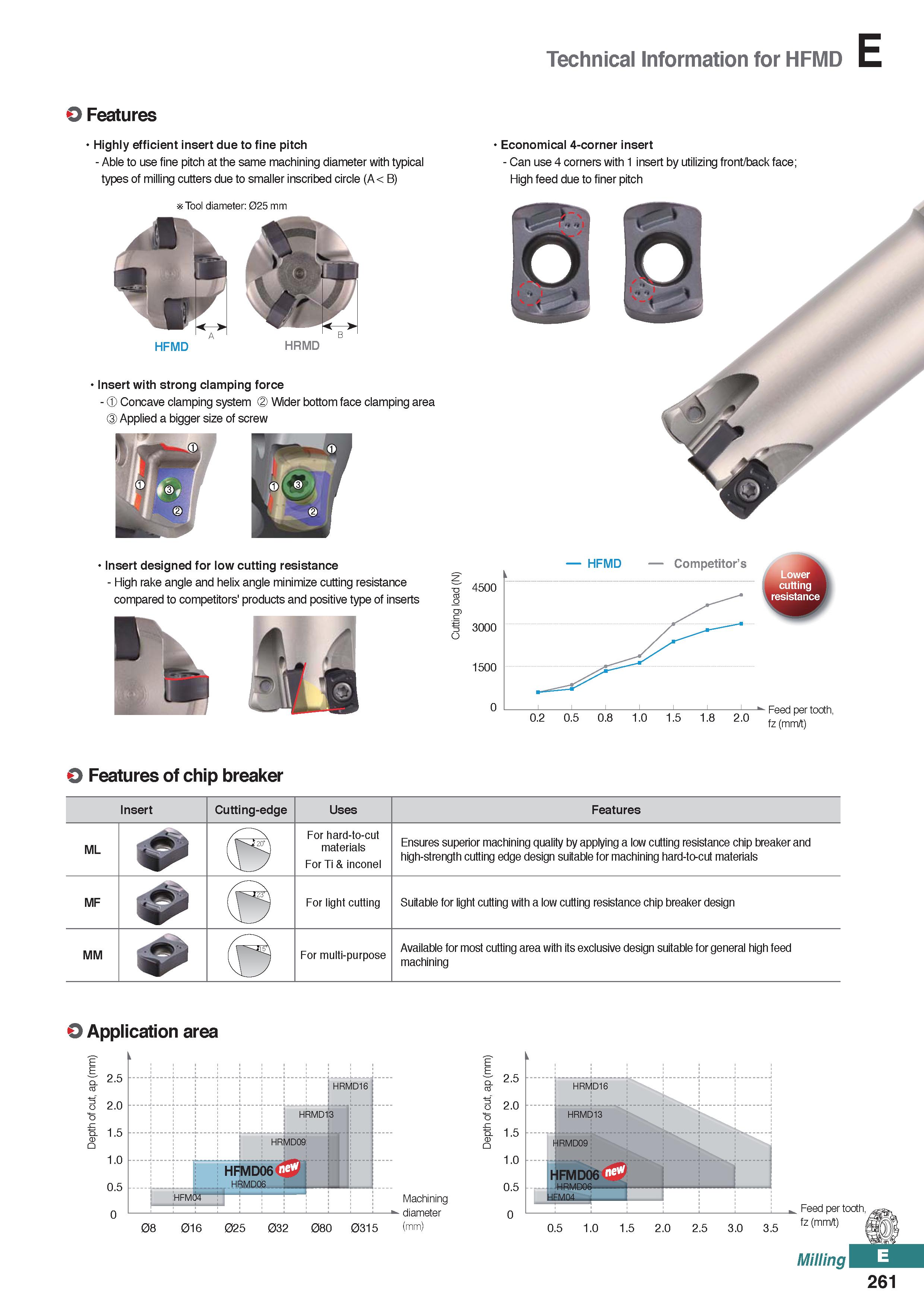

Technical Information for HFMD O Features Highly efficient insert due to fine pitch Economical 4-corner insert - Able to use fine pitch at the same machining diameter with typical - Can use 4 corners with 1 insert by utilizing front/back face; types of milling cutters due to smaller inscribed circle (A B) High feed due to finer pitch ' Insert designed for low cutting resistance - High rake angle and helix angle minimize cutting resistance compared to competitors' products and positive type of inserts 4500 3000 1500 HFMD Competitor’s 0.2 0.5 0.8 1.0 1.5 1.8 2.0 Feed per tooth, fz (mm/t) O Features of chip breaker Insert Cutting-edge Uses Features ML & For hard-to-cut materials For Ti & inconel Ensures superior machining quality by applying a low cutting resistance chip breaker and high-strength cutting edge design suitable for machining hard-to-cut materials MF wr For light cutting Suitable for light cutting with a low cutting resistance chip breaker design MM & V For multi-purpose Available for most cutting area with its exclusive design suitable for general high feed machining 0 O Application area 2.5 2.0 1.5 1.0 0.5 0 HRMD16 HRMD1 3 HR MD09 HFMD06 HFM04 08 016 025 032 080 0315 Machining diameter (mm) 2.5 2.0 1.5 1.0 0.5 0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 Feed per tooth fz (mm/t) Milling 261
