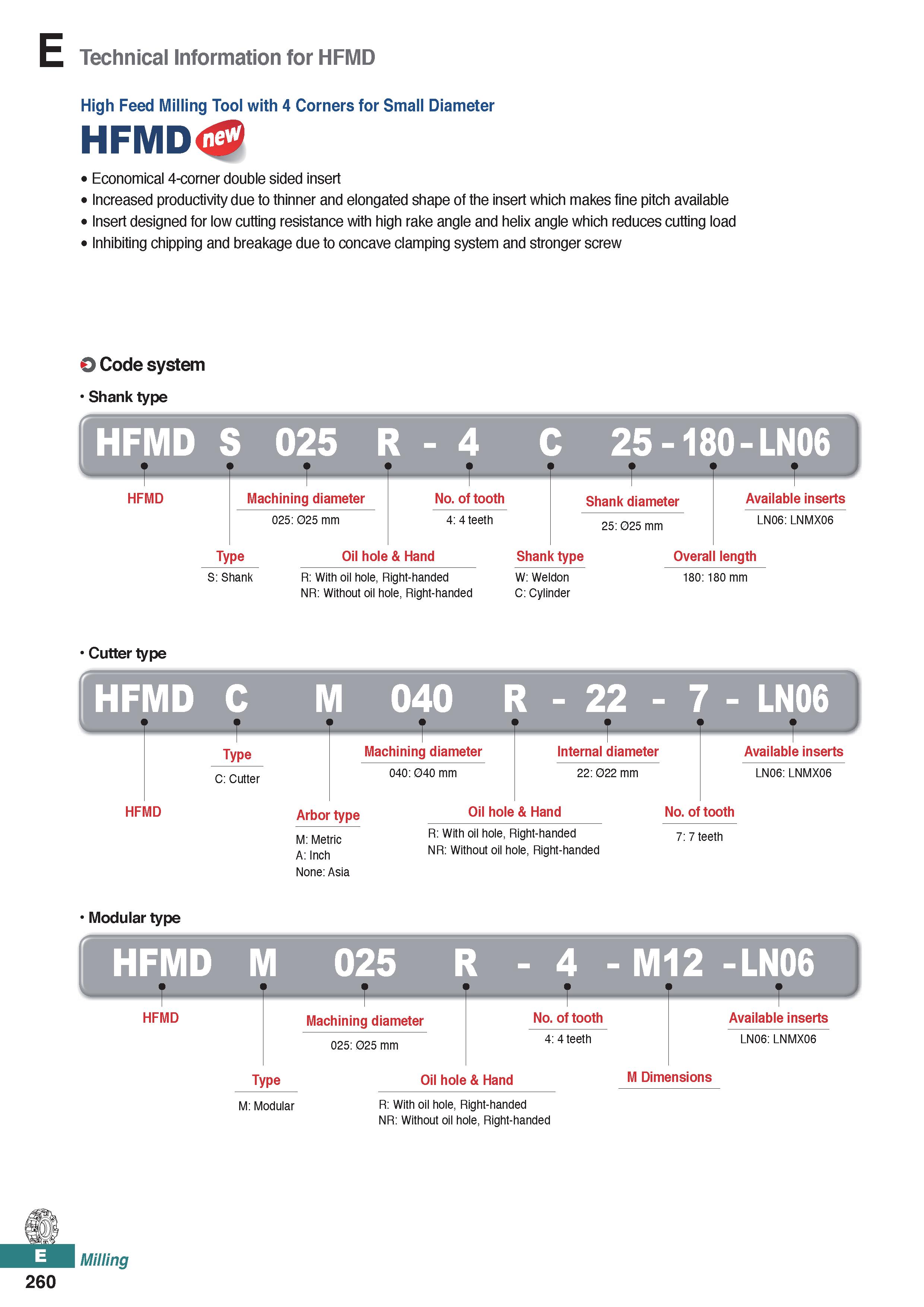

E Technical Information for HFMD High Feed Milling Tool with 4 Corners for Small Diameter HFMD Economical 4-corner double sided insert Increased productivity due to thinner and elongated shape of the insert which makes fine pitch available Insert designed for low cutting resistance with high rake angle and helix angle which reduces cutting load Inhibiting chipping and breakage due to concave clamping system and stronger screw 0 Code system Shank type HFMD S 025 R - 4 C 25-1 180-1 .N06 HFMD Machining diameter No. of tooth Shank diameter Available inserts 025: 025 mm 4: 4 teeth 25: 025 mm LN06: LNMX06 Type Oil hole & Hand Shank type Overall length S: Shank R: With oil hole, Right-handed W: Weldon 180: 180 mm NR: Without oil hole, Right-handed C: Cylinder Cutter type HFMD C M 040 R - 22 - 7 L r - LN06 J Type Machining diameter Internal diameter Available inserts C: Cutter 040: 040 mm 22: 022 mm LN06: LNMX06 HFMD Arbor type M: Metric A: Inch None: Asia Oil hole & Hand R: With oil hole, Right-handed NR: Without oil hole, Right-handed No. of tooth 7: 7 teeth Modular type HFMD L M 025 R -4 -M12 -LN06 J HFMD Machining diameter 025: 025 mm No. of tooth 4: 4 teeth Available inserts LN06: LNMX06 Type Oil hole & Hand M Dimensions M: Modular R: With oil hole, Right-handed NR: Without oil hole, Right-handed 260
