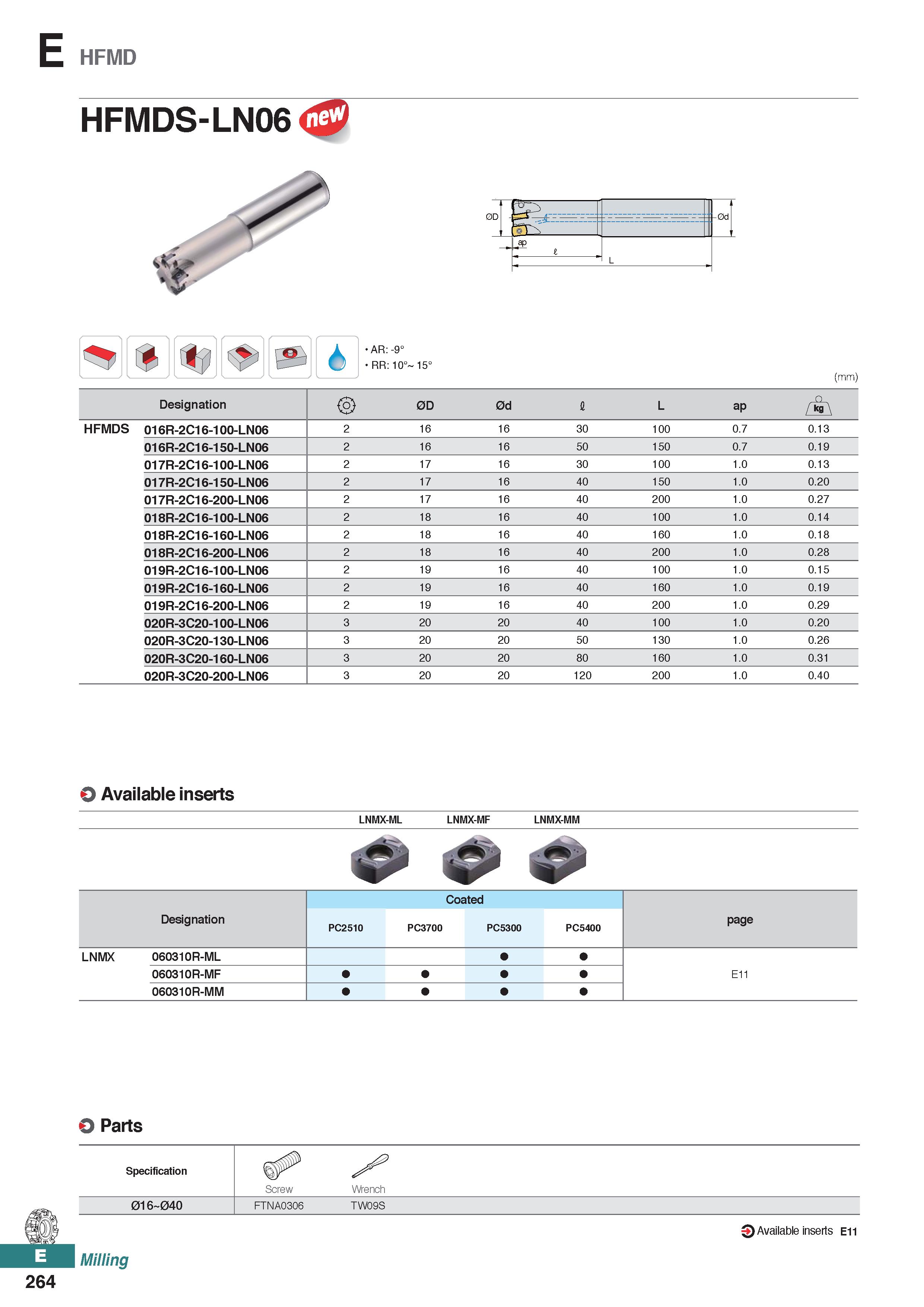

E HFMD HFMDS-LN06 3£) .Kt r AR:-9° RR: 10°- 15° (mm) Designation 0D 0d I L ap HFMDS 016R-2C16-100-LN06 2 16 16 30 100 0.7 0.13 016R-2C16-150-LN06 2 16 16 50 150 0.7 0.19 017R-2C16-100-LN06 2 17 16 30 100 1.0 0.13 017R-2C16-150-LN06 2 17 16 40 150 1.0 0.20 017R-2C16-200-LN06 2 17 16 40 200 1.0 0.27 018R-2C16-100-LN06 2 18 16 40 100 1.0 0.14 018R-2C16-160-LN06 2 18 16 40 160 1.0 0.18 018R-2C16-200-LN06 2 18 16 40 200 1.0 0.28 019R-2C16-100-LN06 2 19 16 40 100 1.0 0.15 019R-2C16-160-LN06 2 19 16 40 160 1.0 0.19 019R-2C16-200-LN06 2 19 16 40 200 1.0 0.29 020R-3C20-100-LN06 3 20 20 40 100 1.0 0.20 020R-3C20-130-LN06 3 20 20 50 130 1.0 0.26 020R-3C20-160-LN06 3 20 20 80 160 1.0 0.31 020R-3C20-200-LN06 3 20 20 120 200 1.0 0.40 0d £ L O Available inserts LNMX-ML LNMX-MF LNMX-MM Designation Coated page PC2510 PC3700 PC5300 PC5400 LNMX 060310R-ML 060310R-MF E11 060310R-MM O Parts Specification Screw S’ Wrench 016 04O FTNA0306 TW09S Milling Q Available inserts E11 264
