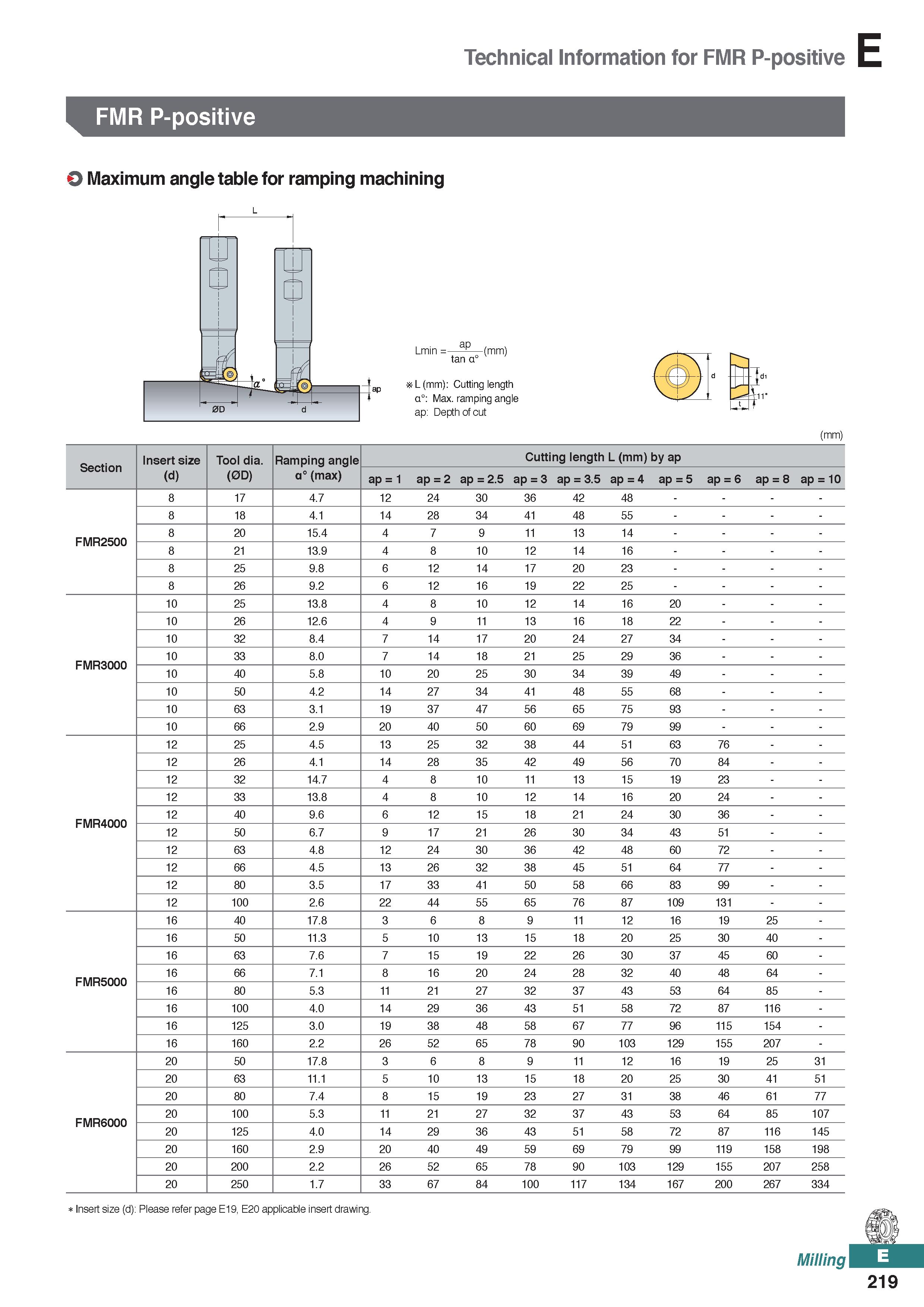

Technical Information for FMR P-positive FMR P-positive O Maximum angle table for ramping machining Lmin = (mm) tan a° L(mm): Cutting length a°: Max. ramping angle ap: Depth of cut (mm) Section Insert size Tool dia. Ramping angle Cutting length L (mm) by ap (d) (0D) a0 (max) ap = 1 ap = 2 ap = 2.5 ap = 3 ap = 3.5 ap = 4 ap = 5 ap = 6 ap = 8 ap = 10 8 17 4.7 12 24 30 36 42 48 8 18 4.1 14 28 34 41 48 55 FMR2500 8 20 15.4 4 7 9 11 13 14 8 21 13.9 4 8 10 12 14 16 8 25 9.8 6 12 14 17 20 23 8 26 9.2 6 12 16 19 22 25 10 25 13.8 4 8 10 12 14 16 20 - 10 26 12.6 4 9 11 13 16 18 22 - 10 32 8.4 7 14 17 20 24 27 34 - FMR3000 10 33 8.0 7 14 18 21 25 29 36 - 10 40 5.8 10 20 25 30 34 39 49 - 10 50 4.2 14 27 34 41 48 55 68 - 10 63 3.1 19 37 47 56 65 75 93 - 10 66 2.9 20 40 50 60 69 79 99 - 12 25 4.5 13 25 32 38 44 51 63 76 12 26 4.1 14 28 35 42 49 56 70 84 12 32 14.7 4 8 10 11 13 15 19 23 12 33 13.8 4 8 10 12 14 16 20 24 FMR4000 12 40 9.6 6 12 15 18 21 24 30 36 12 50 6.7 9 17 21 26 30 34 43 51 12 63 4.8 12 24 30 36 42 48 60 72 12 66 4.5 13 26 32 38 45 51 64 77 12 80 3.5 17 33 41 50 58 66 83 99 12 100 2.6 22 44 55 65 76 87 109 131 16 40 17.8 3 6 8 9 11 12 16 19 25 - 16 50 11.3 5 10 13 15 18 20 25 30 40 - 16 63 7.6 7 15 19 22 26 30 37 45 60 - FMR5000 16 66 7.1 8 16 20 24 28 32 40 48 64 - 16 80 5.3 11 21 27 32 37 43 53 64 85 - 16 100 4.0 14 29 36 43 51 58 72 87 116 - 16 125 3.0 19 38 48 58 67 77 96 115 154 - 16 160 2.2 26 52 65 78 90 103 129 155 207 - 20 50 17.8 3 6 8 9 11 12 16 19 25 31 20 63 11.1 5 10 13 15 18 20 25 30 41 51 20 80 7.4 8 15 19 23 27 31 38 46 61 77 FMR6000 20 100 5.3 11 21 27 32 37 43 53 64 85 107 20 125 4.0 14 29 36 43 51 58 72 87 116 145 20 160 2.9 20 40 49 59 69 79 99 119 158 198 20 200 2.2 26 52 65 78 90 103 129 155 207 258 20 250 1.7 33 67 84 100 117 134 167 200 267 334 Insert size (d): Please refer page E19, E20 applicable insert drawing. Milling 219
