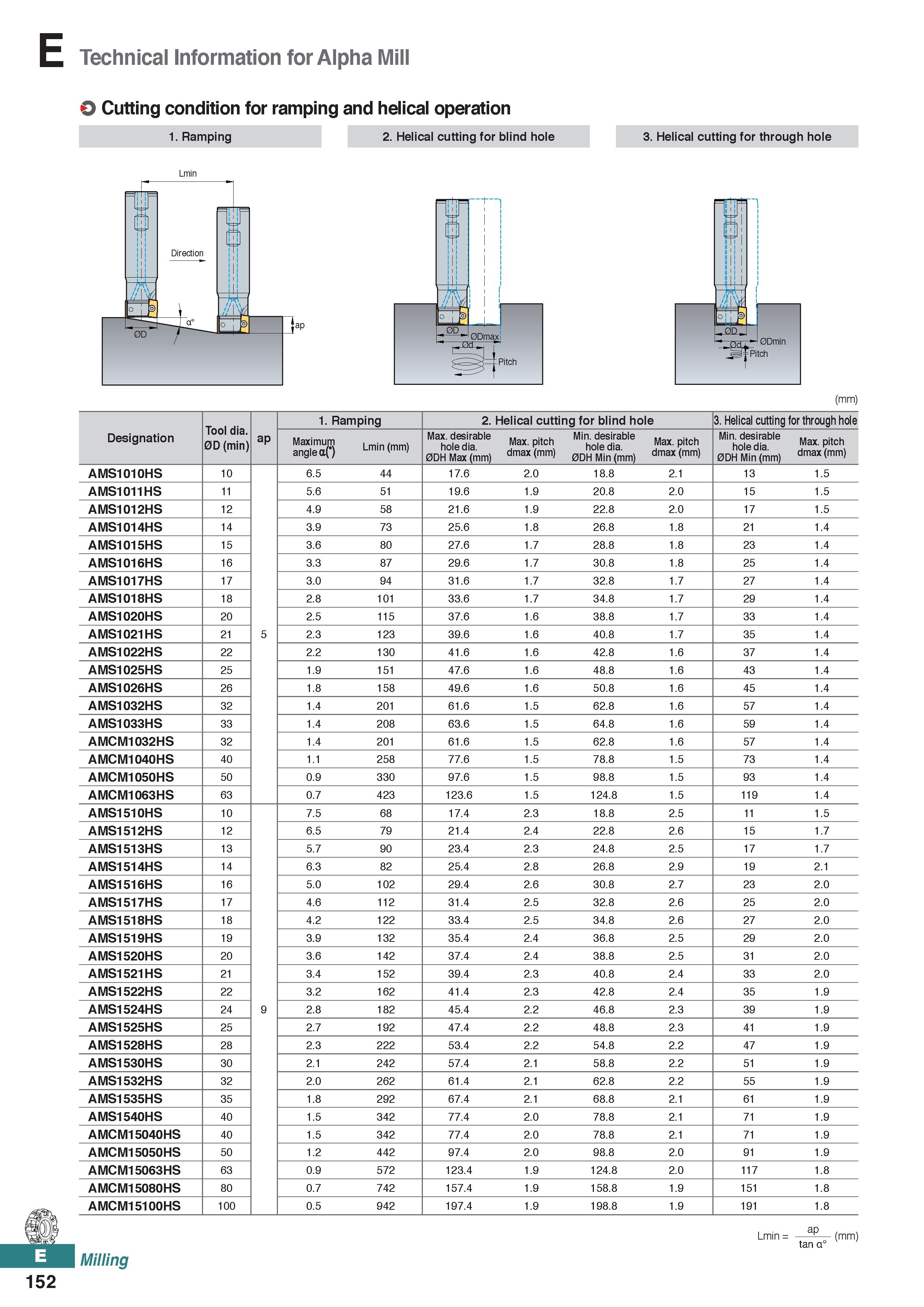

E Technical Information for Alpha Mill O Cutting condition for ramping and helical operation 1. Ramping 2. Helical cutting for blind hole 3. Helical cutting for through hole (mm) Designation Tool dia. 0D (min) ap 1. Ramping 2. Helical cutting for blind hole 3. Helical cutting for through hole Maximum angle a(") Lmin (mm) Max. desirable hole dia. 0DH Max (mm) Max. pitch dmax (mm) Min. desirable hole dia. 0DH Min (mm) Max. pitch dmax (mm) Min. desirable hole dia. 0DH Min (mm) Max. pitch dmax (mm) AMS1010HS 10 6.5 44 17.6 2.0 18.8 2.1 13 1.5 AMS1011HS 11 5.6 51 19.6 1.9 20.8 2.0 15 1.5 AMS1012HS 12 4.9 58 21.6 1.9 22.8 2.0 17 1.5 AMS1014HS 14 3.9 73 25.6 1.8 26.8 1.8 21 1.4 AMS1015HS 15 3.6 80 27.6 1.7 28.8 1.8 23 1.4 AMS1016HS 16 3.3 87 29.6 1.7 30.8 1.8 25 1.4 AMS1017HS 17 3.0 94 31.6 1.7 32.8 1.7 27 1.4 AMS1018HS 18 2.8 101 33.6 1.7 34.8 1.7 29 1.4 AMS1020HS 20 2.5 115 37.6 1.6 38.8 1.7 33 1.4 AMS1021HS 21 5 2.3 123 39.6 1.6 40.8 1.7 35 1.4 AMS1022HS 22 2.2 130 41.6 1.6 42.8 1.6 37 1.4 AMS1025HS 25 1.9 151 47.6 1.6 48.8 1.6 43 1.4 AMS1026HS 26 1.8 158 49.6 1.6 50.8 1.6 45 1.4 AMS1032HS 32 1.4 201 61.6 1.5 62.8 1.6 57 1.4 AMS1033HS 33 1.4 208 63.6 1.5 64.8 1.6 59 1.4 AMCM1032HS 32 1.4 201 61.6 1.5 62.8 1.6 57 1.4 AMCM1040HS 40 1.1 258 77.6 1.5 78.8 1.5 73 1.4 AMCM1050HS 50 0.9 330 97.6 1.5 98.8 1.5 93 1.4 AMCM1063HS 63 0.7 423 123.6 1.5 124.8 1.5 119 1.4 AMS1510HS 10 7.5 68 17.4 2.3 18.8 2.5 11 1.5 AMS1512HS 12 6.5 79 21.4 2.4 22.8 2.6 15 1.7 AMS1513HS 13 5.7 90 23.4 2.3 24.8 2.5 17 1.7 AMS1514HS 14 6.3 82 25.4 2.8 26.8 2.9 19 2.1 AMS1516HS 16 5.0 102 29.4 2.6 30.8 2.7 23 2.0 AMS1517HS 17 4.6 112 31.4 2.5 32.8 2.6 25 2.0 AMS1518HS 18 4.2 122 33.4 2.5 34.8 2.6 27 2.0 AMS1519HS 19 3.9 132 35.4 2.4 36.8 2.5 29 2.0 AMS1520HS 20 3.6 142 37.4 2.4 38.8 2.5 31 2.0 AMS1521HS 21 3.4 152 39.4 2.3 40.8 2.4 33 2.0 AMS1522HS 22 3.2 162 41.4 2.3 42.8 2.4 35 1.9 AMS1524HS 24 9 2.8 182 45.4 2.2 46.8 2.3 39 1.9 AMS1525HS 25 2.7 192 47.4 2.2 48.8 2.3 41 1.9 AMS1528HS 28 2.3 222 53.4 2.2 54.8 2.2 47 1.9 AMS1530HS 30 2.1 242 57.4 2.1 58.8 2.2 51 1.9 AMS1532HS 32 2.0 262 61.4 2.1 62.8 2.2 55 1.9 AMS1535HS 35 1.8 292 67.4 2.1 68.8 2.1 61 1.9 AMS1540HS 40 1.5 342 77.4 2.0 78.8 2.1 71 1.9 AMCM15040HS 40 1.5 342 77.4 2.0 78.8 2.1 71 1.9 AMCM15050HS 50 1.2 442 97.4 2.0 98.8 2.0 91 1.9 AMCM15063HS 63 0.9 572 123.4 1.9 124.8 2.0 117 1.8 AMCM15080HS 80 0.7 742 157.4 1.9 158.8 1.9 151 1.8 AMCM15100HS 100 0.5 942 197.4 1.9 198.8 1.9 191 1.8 Lmin = (mm) tan a° Milling 152 ap
