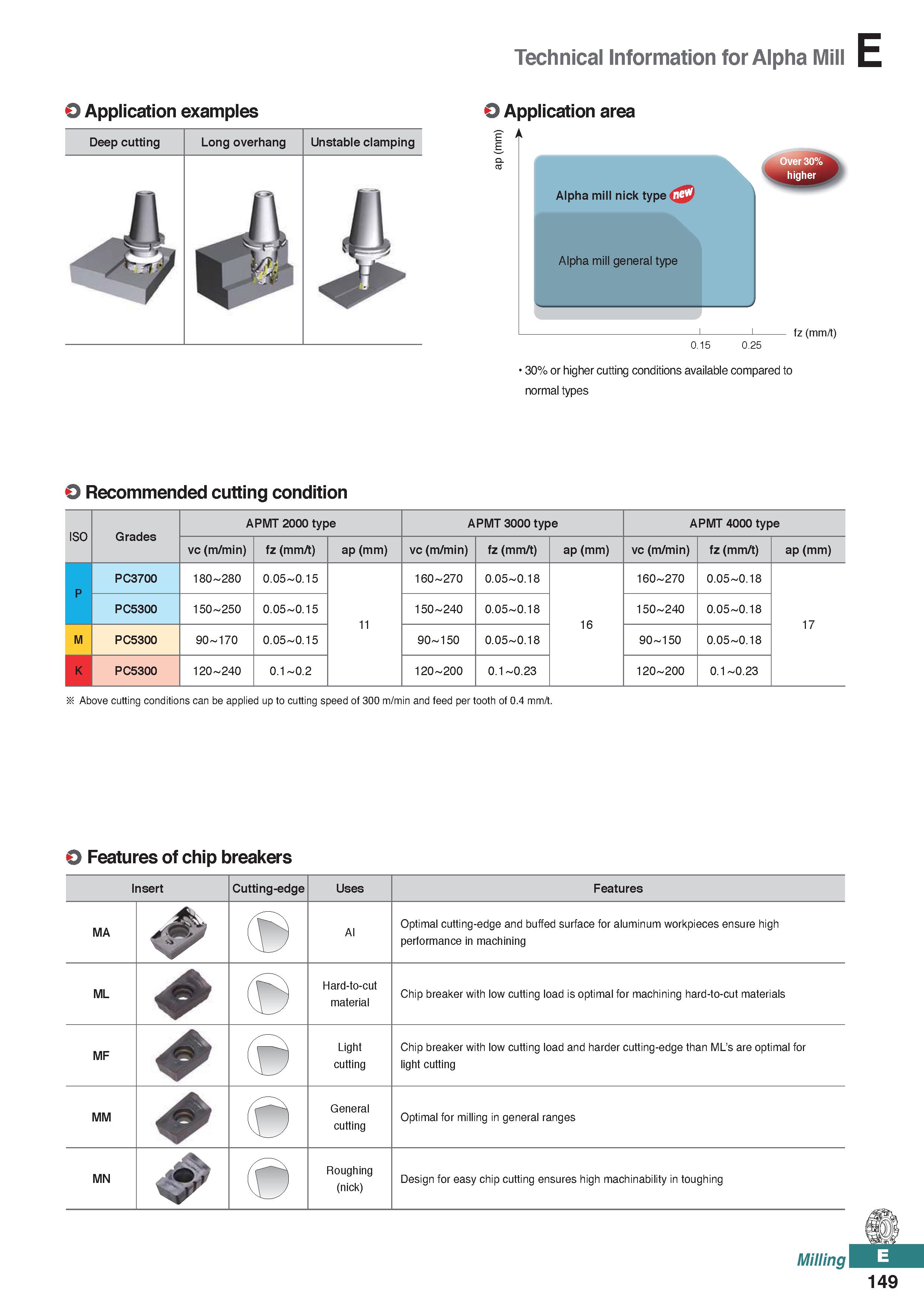

Technical Information for Alpha Mill E O Application examples Deep cutting Long overhang Unstable clamping O Application area Alpha mill nick type Alpha mill general type 0.15 0.25 fz (mm/t) 30% or higher cutting conditions available compared to normal types O Recommended cutting condition ISO Grades APMT 2000 type APMT 3000 type APMT 4000 type vc (m/min) fz (mm/t) ap (mm) vc (m/min) fz (mm/t) ap (mm) vc (m/min) fz (mm/t) ap (mm) P PC3700 180 280 0.05 0.15 11 160 270 0.05 0.18 16 160 270 0.05 0.18 17 PC5300 150 250 0.05 0.15 150 240 0.05 0.18 150 240 0.05 0.18 M PC5300 90 170 0.05 0.15 90 150 0.05 0.18 90 150 0.05 0.18 K PC5300 120 240 0.1 0.2 120 200 0.1 0.23 120 200 0.1 0.23 Above cutting conditions can be applied up to cutting speed of 300 m/min and feed per tooth of 0.4 mm/t. O Features of chip breakers Insert Cutting-edge Uses Features MA 0 Al Optimal cutting-edge and buffed surface for aluminum workpieces ensure high performance in machining ML Hard-to-cut material Chip breaker with low cutting load is optimal for machining hard-to-cut materials MF 0 Light cutting Chip breaker with low cutting load and harder cutting-edge than ML’s are optimal for light cutting MM 0 General cutting Optimal for milling in general ranges MN 0 Roughing (nick) Design for easy chip cutting ensures high machinability in toughing gif Millin 149
