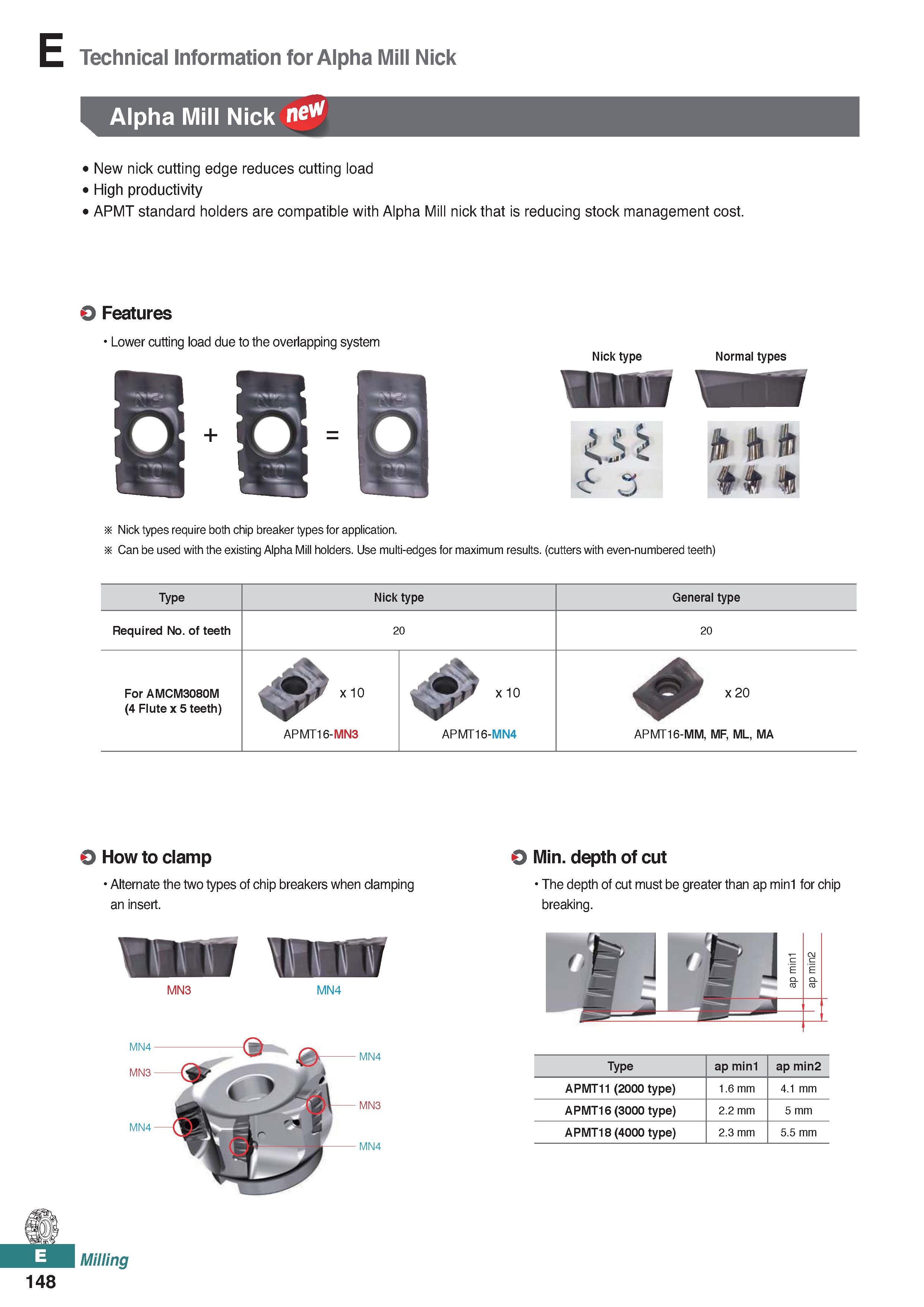

Technical Information for Alpha Mill Nick Alpha Mill Nick ne New nick cutting edge reduces cutting load High productivity APMT standard holders are compatible with Alpha Mill nickthat is reducing stock management cost. Features Lower cutting load due to the overlapping system Nick type Normal types Nick types require both chip breaker types for application. Can be used with the existing Alpha Mill holders. Use multi-edges for maximum results, (cutters with even-numbered teeth) Type Nick type General type Required No. of teeth 20 20 For AMCM3080M (4 Flute x 5 teeth) APMT16-MN3 x 10 APMT16-MN4 A x 20 APMT16-MM, MF, ML, MA O How to clamp Alternate the two types of chip breakers when clamping an insert. MN3 MN4 O Min. depth of cut The depth of cut must be greater than ap mini for chip breaking. MN4 MN3 MN4 Milling MN4 MN3 MN4 Type ap min1 ap min2 APMT11 (2000 type) 1.6 mm 4.1 mm APMT16 (3000 type) 2.2 mm 5 mm APMT18 (4000 type) 2.3 mm 5.5 mm 148
