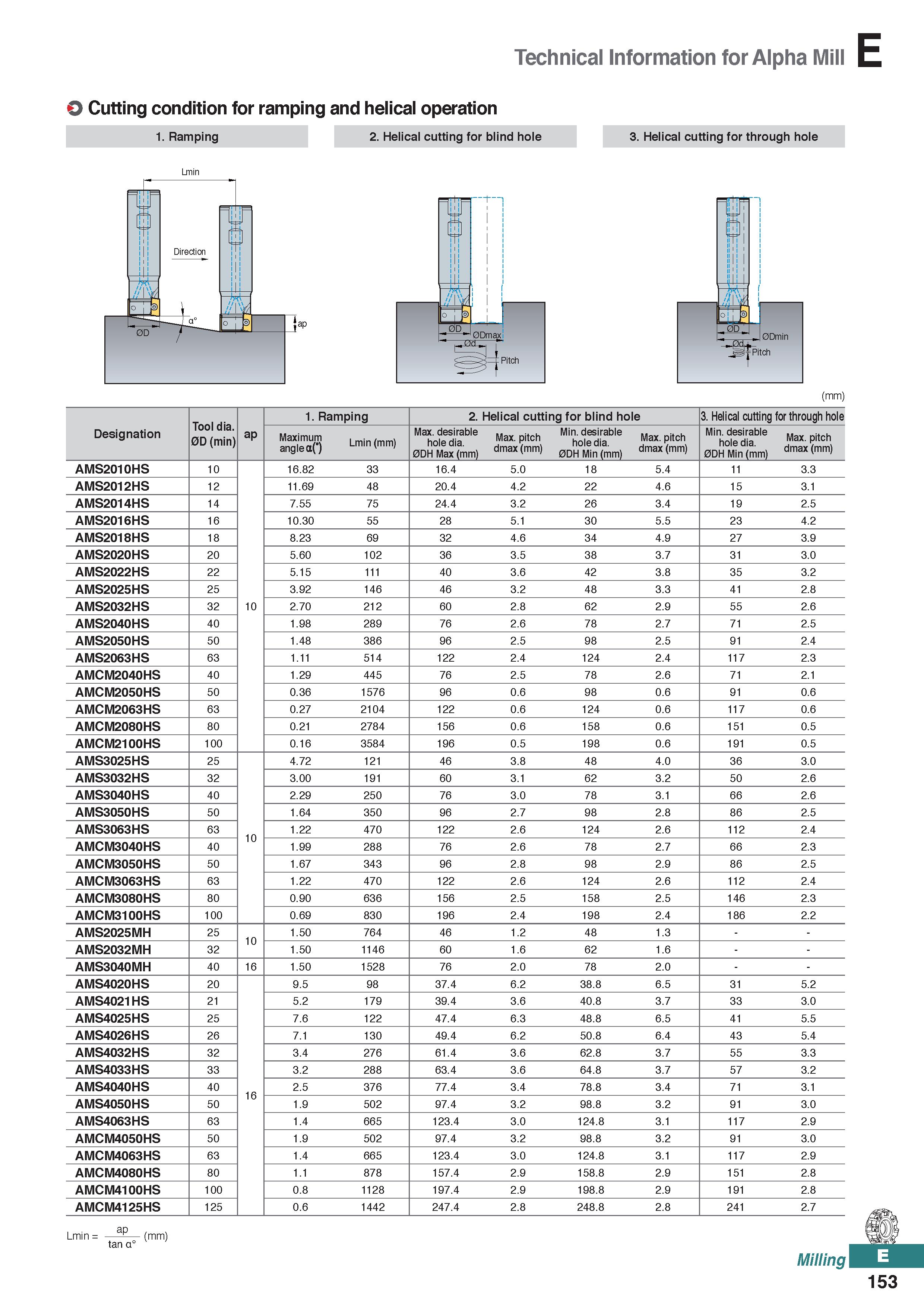

Technical Information for Alpha Mill E O Cutting condition for ramping and helical operation 1. Ramping 2. Helical cutting for blind hole 3. Helical cutting for through hole (mm) Tool dia. 0D (min) 1. Ramping 2. Helical cutting for blind hole 3. Helical cutting for through hole Designation ap Maximum angle a(‘) Lmin (mm) Max. desirable hole dia. 0DH Max (mm) Max. pitch dmax (mm) Min. desirable hole dia. 0DH Min (mm) Max. pitch dmax (mm) Min. desirable hole dia. 0DH Min (mm) Max. pitch dmax (mm) AMS2010HS 10 16.82 33 16.4 5.0 18 5.4 11 3.3 AMS2012HS 12 11.69 48 20.4 4.2 22 4.6 15 3.1 AMS2014HS 14 7.55 75 24.4 3.2 26 3.4 19 2.5 AMS2016HS 16 10.30 55 28 5.1 30 5.5 23 4.2 AMS2018HS 18 8.23 69 32 4.6 34 4.9 27 3.9 AMS2020HS 20 5.60 102 36 3.5 38 3.7 31 3.0 AMS2022HS 22 5.15 111 40 3.6 42 3.8 35 3.2 AMS2025HS 25 3.92 146 46 3.2 48 3.3 41 2.8 AMS2032HS 32 10 2.70 212 60 2.8 62 2.9 55 2.6 AMS2040HS 40 1.98 289 76 2.6 78 2.7 71 2.5 AMS2050HS 50 1.48 386 96 2.5 98 2.5 91 2.4 AMS2063HS 63 1.11 514 122 2.4 124 2.4 117 2.3 AMCM2040HS 40 1.29 445 76 2.5 78 2.6 71 2.1 AMCM2050HS 50 0.36 1576 96 0.6 98 0.6 91 0.6 AMCM2063HS 63 0.27 2104 122 0.6 124 0.6 117 0.6 AMCM2080HS 80 0.21 2784 156 0.6 158 0.6 151 0.5 AMCM2100HS 100 0.16 3584 196 0.5 198 0.6 191 0.5 AMS3025HS 25 4.72 121 46 3.8 48 4.0 36 3.0 AMS3032HS 32 3.00 191 60 3.1 62 3.2 50 2.6 AMS3040HS 40 2.29 250 76 3.0 78 3.1 66 2.6 AMS3050HS 50 1.64 350 96 2.7 98 2.8 86 2.5 AMS3063HS 63 10 1.22 470 122 2.6 124 2.6 112 2.4 AMCM3040HS 40 1.99 288 76 2.6 78 2.7 66 2.3 AMCM3050HS 50 1.67 343 96 2.8 98 2.9 86 2.5 AMCM3063HS 63 1.22 470 122 2.6 124 2.6 112 2.4 AMCM3080HS 80 0.90 636 156 2.5 158 2.5 146 2.3 AMCM3100HS 100 0.69 830 196 2.4 198 2.4 186 2.2 AMS2025MH 25 10 1.50 764 46 1.2 48 1.3 AMS2032MH 32 1.50 1146 60 1.6 62 1.6 AMS3040MH 40 16 1.50 1528 76 2.0 78 2.0 AMS4020HS 20 9.5 98 37.4 6.2 38.8 6.5 31 5.2 AMS4021HS 21 5.2 179 39.4 3.6 40.8 3.7 33 3.0 AMS4025HS 25 7.6 122 47.4 6.3 48.8 6.5 41 5.5 AMS4026HS 26 7.1 130 49.4 6.2 50.8 6.4 43 5.4 AMS4032HS 32 3.4 276 61.4 3.6 62.8 3.7 55 3.3 AMS4033HS 33 3.2 288 63.4 3.6 64.8 3.7 57 3.2 AMS4040HS 40 16 2.5 376 77.4 3.4 78.8 3.4 71 3.1 AMS4050HS 50 1.9 502 97.4 3.2 98.8 3.2 91 3.0 AMS4063HS 63 1.4 665 123.4 3.0 124.8 3.1 117 2.9 AMCM4050HS 50 1.9 502 97.4 3.2 98.8 3.2 91 3.0 AMCM4063HS 63 1.4 665 123.4 3.0 124.8 3.1 117 2.9 AMCM4080HS 80 1.1 878 157.4 2.9 158.8 2.9 151 2.8 AMCM4100HS 100 0.8 1128 197.4 2.9 198.8 2.9 191 2.8 AMCM4125HS 125 0.6 1442 247.4 2.8 248.8 2.8 241 2.7 Lmin = (mm) tan a° Milling 153 ap
