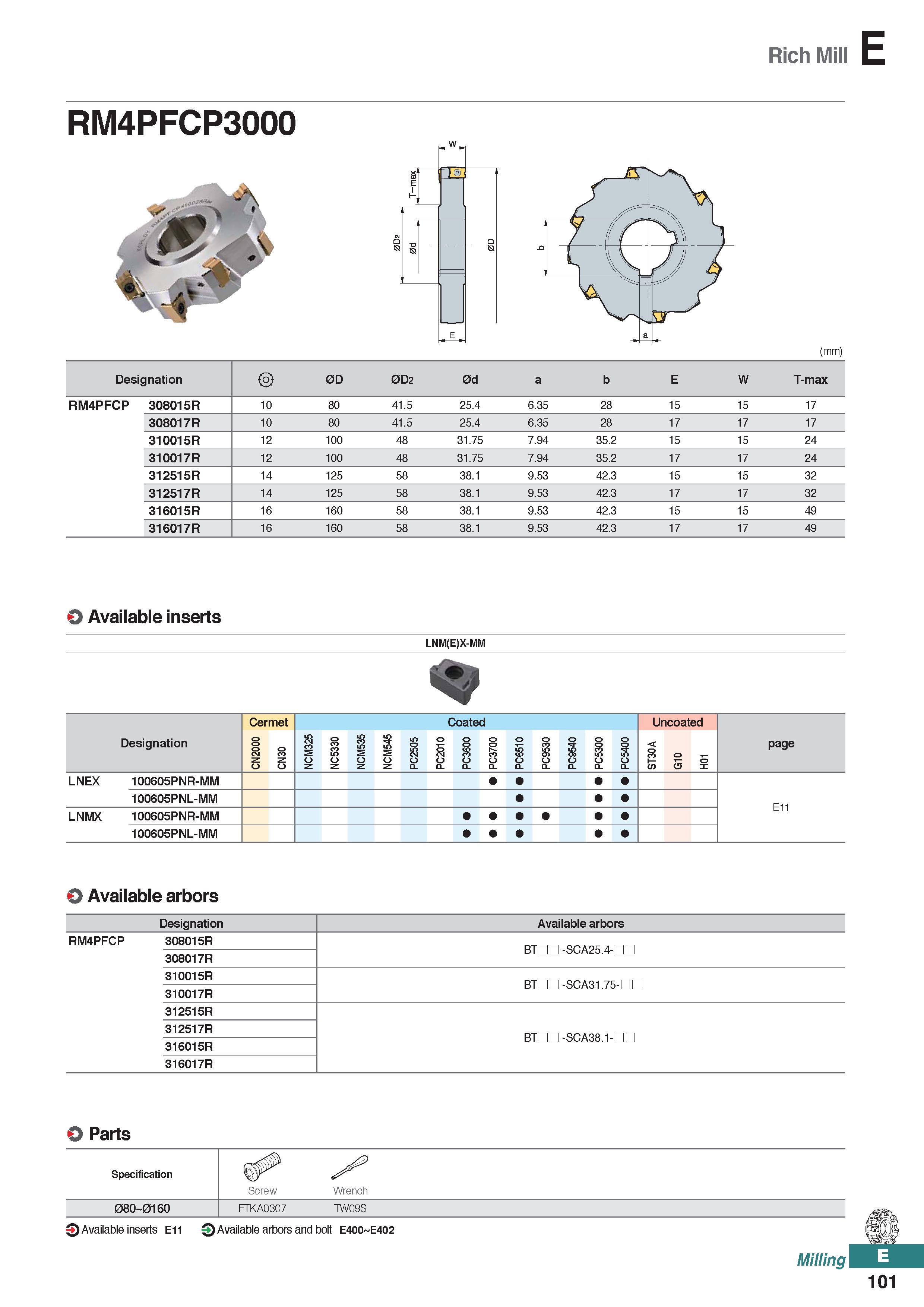

Rich Mill E RM4PFCP3000 (mm) Designation 0D 0D2 0d a b E W T-max RM4PFCP 308015R 10 80 41.5 25.4 6.35 28 15 15 17 308017R 10 80 41.5 25.4 6.35 28 17 17 17 310015R 12 100 48 31.75 7.94 35.2 15 15 24 310017R 12 100 48 31.75 7.94 35.2 17 17 24 312515R 14 125 58 38.1 9.53 42.3 15 15 32 312517R 14 125 58 38.1 9.53 42.3 17 17 32 316015R 16 160 58 38.1 9.53 42.3 15 15 49 316017R 16 160 58 38.1 9.53 42.3 17 17 49 O Available inserts LNM(E)X-MM j. Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 NCM535 5 4 5 M C N PC2505 PC2010 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 page LNEX 100605PNR-MM E11 100605PNL-MM LNMX 100605PNR-MM 100605PNL-MM O Available arbors Designation Available arbors RM4PFCP 308015R BTDD -SCA25.4-DC 308017R 310015R BTDD -SCA31.75-DH 310017R 312515R BTDD -SCA38.1-DH 312517R 316015R 316017R O Parts Specification S’ Screw Wrench 08O 0160 FTKA0307 TW09S Q Available inserts E11 Q Available arbors and bolt E400 E402 Millin 101
