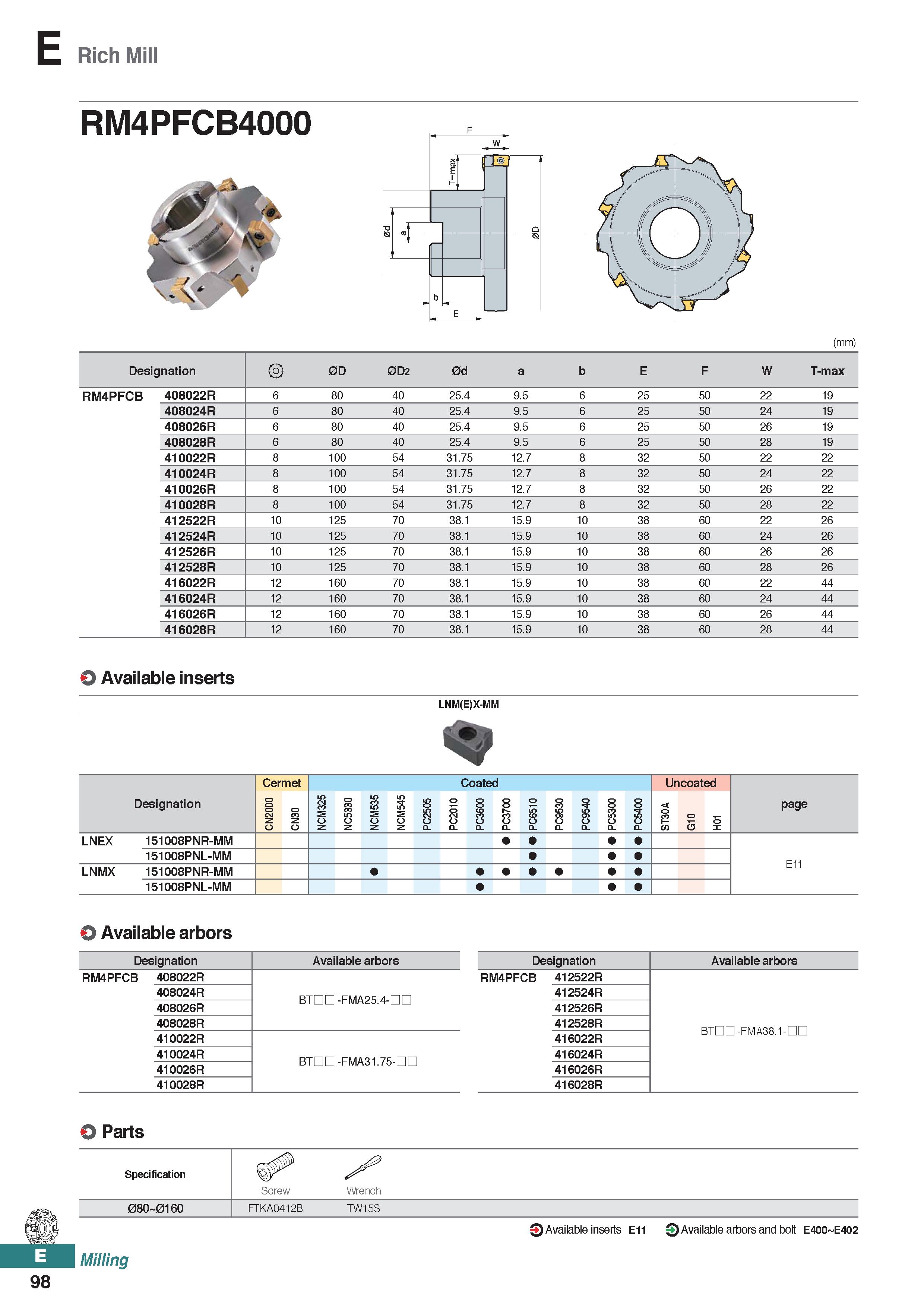

E Rich Mill RM4PFCB4000 P2D (mm) Designation 0D 0D2 0d a b E F W T-max RM4PFCB 408022R 6 80 40 25.4 9.5 6 25 50 22 19 408024R 6 80 40 25.4 9.5 6 25 50 24 19 408026R 6 80 40 25.4 9.5 6 25 50 26 19 408028R 6 80 40 25.4 9.5 6 25 50 28 19 410022R 8 100 54 31.75 12.7 8 32 50 22 22 410024R 8 100 54 31.75 12.7 8 32 50 24 22 410026R 8 100 54 31.75 12.7 8 32 50 26 22 410028R 8 100 54 31.75 12.7 8 32 50 28 22 412522R 10 125 70 38.1 15.9 10 38 60 22 26 412524R 10 125 70 38.1 15.9 10 38 60 24 26 412526R 10 125 70 38.1 15.9 10 38 60 26 26 412528R 10 125 70 38.1 15.9 10 38 60 28 26 416022R 12 160 70 38.1 15.9 10 38 60 22 44 416024R 12 160 70 38.1 15.9 10 38 60 24 44 416026R 12 160 70 38.1 15.9 10 38 60 26 44 416028R 12 160 70 38.1 15.9 10 38 60 28 44 O Available inserts LNM(E)X-MM Cermet Coated Uncoated Designation 0 0 CO NN 50 g S in CC z z 55 34 55 MM CC z z 50 01 m o CC CL Q 6 3 C CL 0 0 7 3 C CL 0 51 6 C CL 0 3 5 9 C CL 0 4 5 9 C Q 0 0 3 5 C CL PC5400 A o 3 T S 01 10 O = page LNEX 151008PNR-MM E11 151008PNL-MM LNMX 151008PNR-MM 151008PNL-MM O Available arbors Designation Available arbors Designation Available arbors RM4PFCB 408022R RM4PFCB 412522R 408024R BTCC -FMA25.4-CC 412524R 408026R 412526R 408028R 412528R BTCD -FMA38.1-CC 410022R 416022R 410024R BTCC -FMA31.75-CC 416024R 410026R 416026R 410028R 416028R O Parts Specification Screw Wrench 08O 0160 FTKA0412B TW15S Milling Q Available inserts E11 Q Available arbors and bolt E400 E402 98
