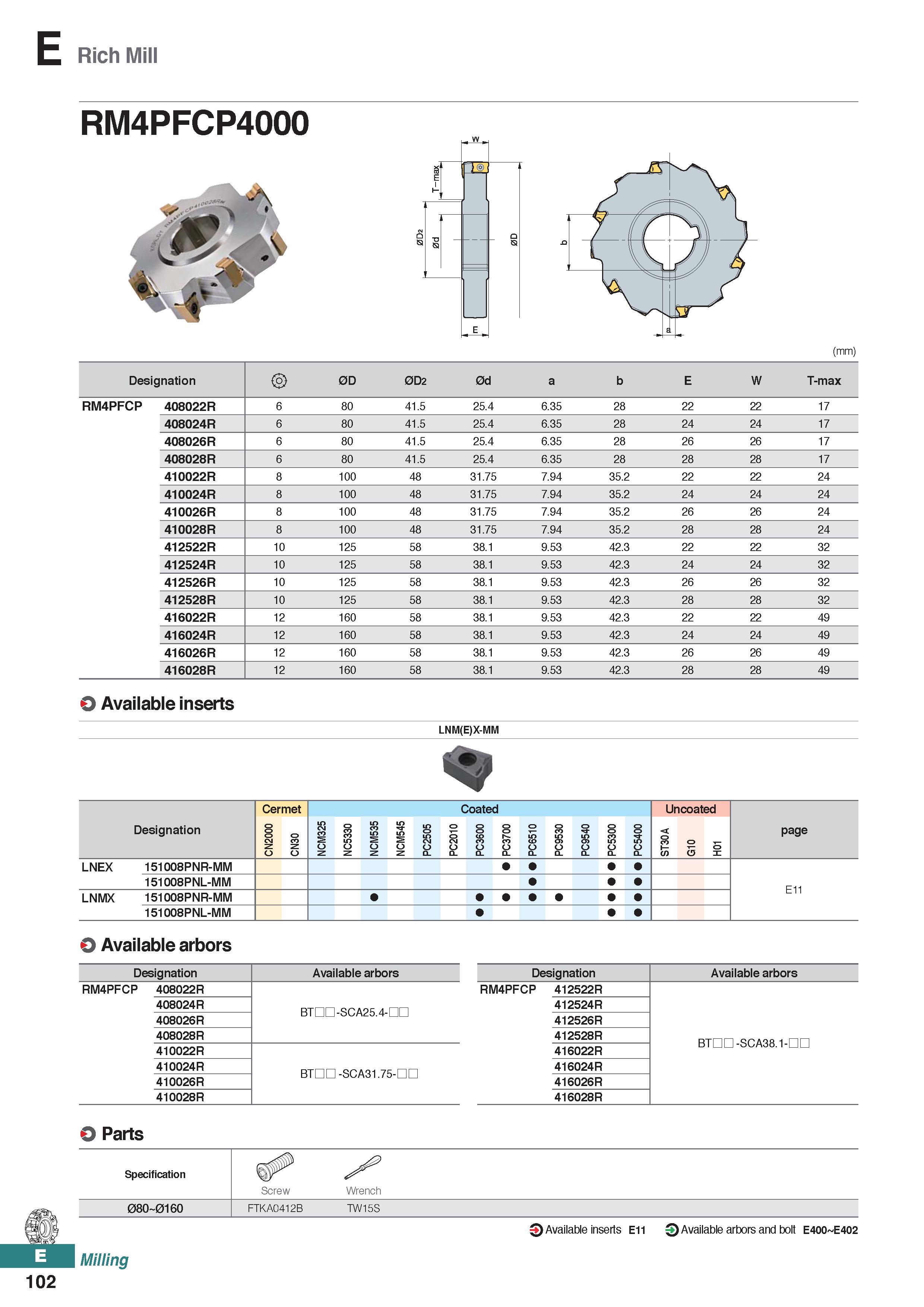

E Rich Mill RM4PFCP4000 HE (mm) Designation 0D 0D2 0d a b E W T-max RM4PFCP 408022R 6 80 41.5 25.4 6.35 28 22 22 17 408024R 6 80 41.5 25.4 6.35 28 24 24 17 408026R 6 80 41.5 25.4 6.35 28 26 26 17 408028R 6 80 41.5 25.4 6.35 28 28 28 17 410022R 8 100 48 31.75 7.94 35.2 22 22 24 410024R 8 100 48 31.75 7.94 35.2 24 24 24 410026R 8 100 48 31.75 7.94 35.2 26 26 24 410028R 8 100 48 31.75 7.94 35.2 28 28 24 412522R 10 125 58 38.1 9.53 42.3 22 22 32 412524R 10 125 58 38.1 9.53 42.3 24 24 32 412526R 10 125 58 38.1 9.53 42.3 26 26 32 412528R 10 125 58 38.1 9.53 42.3 28 28 32 416022R 12 160 58 38.1 9.53 42.3 22 22 49 416024R 12 160 58 38.1 9.53 42.3 24 24 49 416026R 12 160 58 38.1 9.53 42.3 26 26 49 416028R 12 160 58 38.1 9.53 42.3 28 28 49 O Available inserts LNM(E)X-MM J’’ Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 55 34 55 MM CC z z 50 01 m o CC CL Q to 3 C Q 0 0 3 C Q 0 51 to C CL 0 3 5 9 C CL 0 4 5 9 C P 0 0 3 5 C P 0 0 4 5 C P A o 3 T S 01 10 O I LNEX 151008PNR-MM 151008PNL-MM LNMX 151008PNR-MM 151008PNL-MM O Available arbors Designation Available arbors RM4PFCP 408022R 408024R BTDD-SCA25.4-DC 408026R 408028R 410022R 410024R BTDD -SCA31.75-DH 410026R 410028R Designation Available arbors RM4PFCP 412522R BTDD -SCA38.1-DC 412524R 412526R 412528R 416022R 416024R 416026R 416028R 0 Parts Specification Screw S’ Wrench 08O 016O FTKA0412B TW15S Milling Q Available inserts E11 O Available arbors and bolt E400 E402 102
