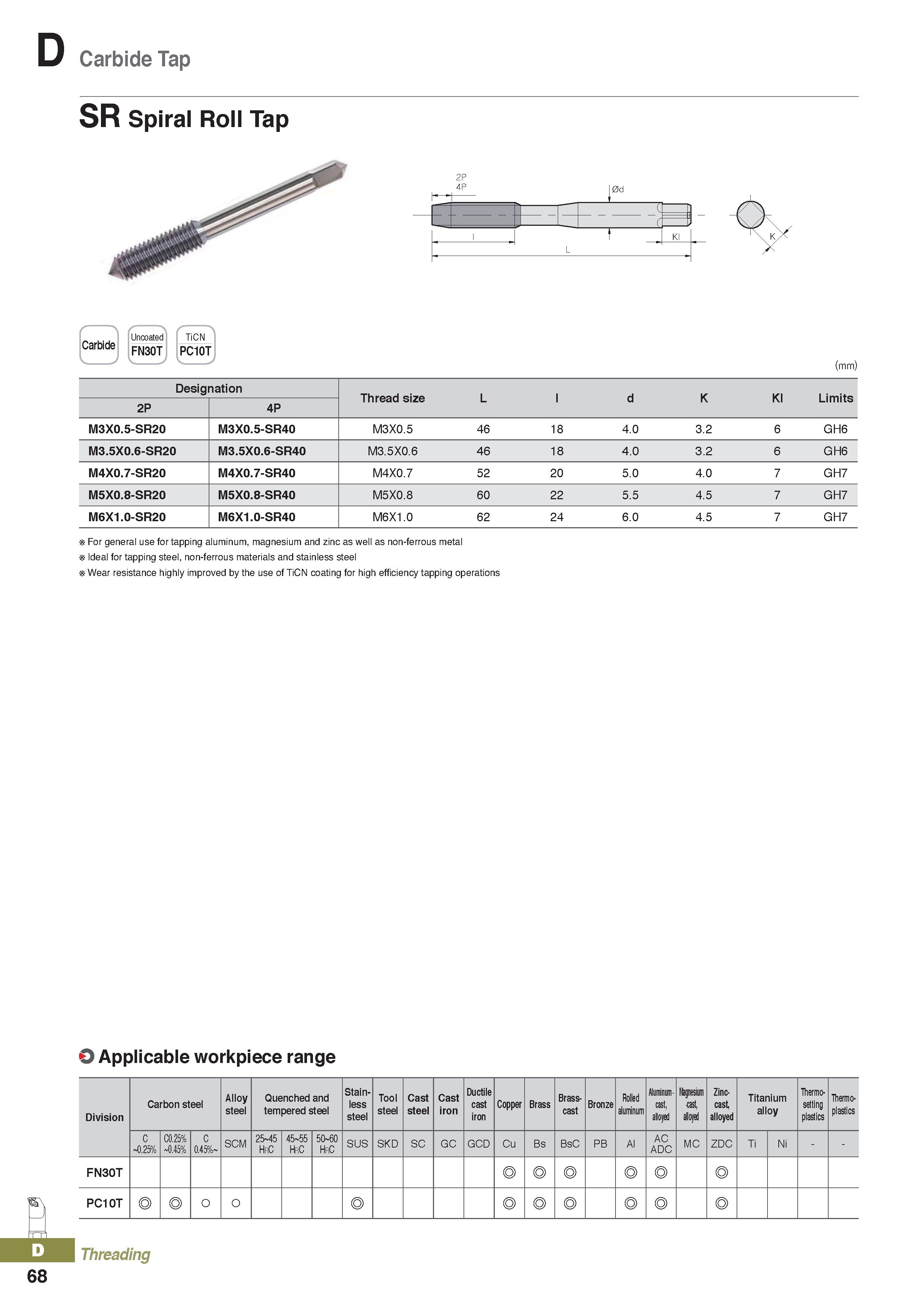

Carbide Tap SR Spiral Roll Tap Carbide Uncoated FN30T TiCN PC10T (mm) Designation Thread size L d K Kl Limits 2P 4P I M3X0.5-SR20 M3X0.5-SR40 M3X0.5 46 18 4.0 3.2 6 GH6 M3.5X0.6-SR20 M3.5X0.6-SR40 M3.5X0.6 46 18 4.0 3.2 6 GH6 M4X0.7-SR20 M4X0.7-SR40 M4X0.7 52 20 5.0 4.0 7 GH7 M5X0.8-SR20 M5X0.8-SR40 M5X0.8 60 22 5.5 4.5 7 GH7 M6X1.0-SR20 M6X1.0-SR40 M6X1.0 62 24 6.0 4.5 7 GH7 For general use fortapping aluminum, magnesium and zinc as well as non-ferrous metal Ideal for tapping steel, non-ferrous materials and stainless steel Wear resistance highly improved bythe use of TiCN coating for high efficiencytapping operations 0c K L Applicable workpiece range Division Carbon steel Alloy steel Quenched and tempered steel Stain- less steel Tool steel Cast steel Cast iron Ductile cast iron Copper Brass Brass- cast Bronze Rolled aluminum Aluminum- cast, alloyed Magnesium -cast, alloyed Zinc- cast, alloyed Titanium alloy Thermo- setting plastics Thermo- plastics C 0.25% C0.25% 0.45% C 0.45% SCM 25 45 HrC 45 55 HrC 50 60 HrC SUS SKD SC GC GCD Cu Bs BsC PB Al AC ADC MC ZDC Ti Ni FN30T ◎ ◎ ◎ ◎ ◎ ◎ PC10T ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ .L 68 Threading
