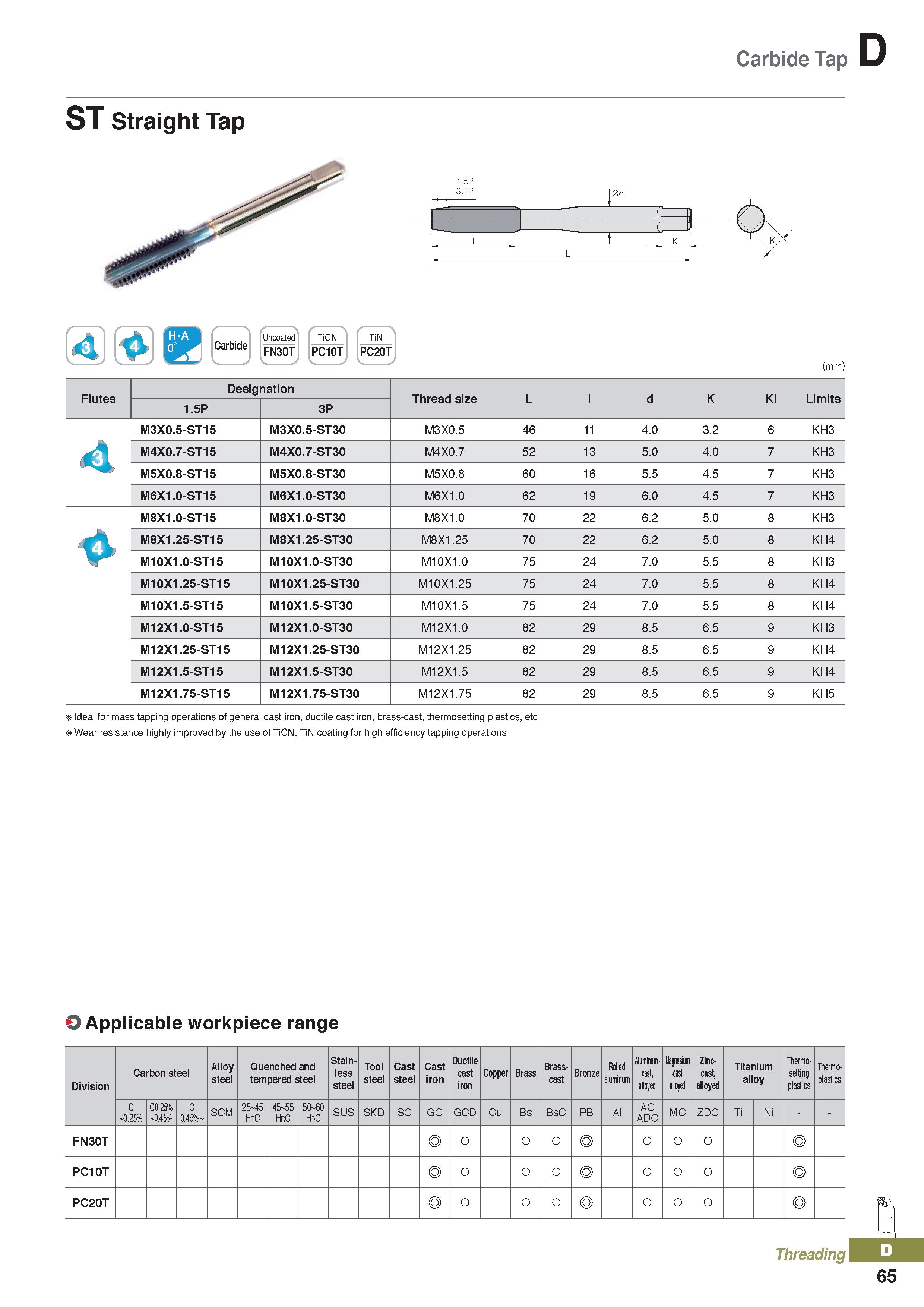

Carbide Tap ST Straight Tap r-> Carbide r-> Uncoated FN30T TiCN PC10T TiN PC20T (mm) Flutes Designation Thread size L d K Kl Limits 1.5P 3P 4 M3X0.5-ST15 M3X0.5-ST30 M3X0.5 46 11 4.0 3.2 6 KH3 M4X0.7-ST15 M4X0.7-ST30 M4X0.7 52 13 5.0 4.0 7 KH3 M5X0.8-ST15 M5X0.8-ST30 M5X0.8 60 16 5.5 4.5 7 KH3 M6X1.0-ST15 M6X1.0-ST30 M6X1.0 62 19 6.0 4.5 7 KH3 M8X1.0-ST15 M8X1.0-ST30 M8X1.0 70 22 6.2 5.0 8 KH3 -A M8X1.25-ST15 M8X1.25-ST30 M8X1.25 70 22 6.2 5.0 8 KH4 M10X1.0-ST15 M10X1.0-ST30 M10X1.0 75 24 7.0 5.5 8 KH3 M10X1.25-ST15 M10X1.25-ST30 M10X1.25 75 24 7.0 5.5 8 KH4 M10X1.5-ST15 M10X1.5-ST30 M10X1.5 75 24 7.0 5.5 8 KH4 M12X1.0-ST15 M12X1.0-ST30 M12X1.0 82 29 8.5 6.5 9 KH3 M12X1.25-ST15 M12X1.25-ST30 M12X1.25 82 29 8.5 6.5 9 KH4 M12X1.5-ST15 M12X1.5-ST30 M12X1.5 82 29 8.5 6.5 9 KH4 M12X1.75-ST15 M12X1.75-ST30 M12X1.75 82 29 8.5 6.5 9 KH5 Ideal for mass tapping operations of general Wear resistance highly improved bythe use cast iron, ductile cast iron, brass-cast, thermosetting plastics, etc of TiCN, TiN coating for high efficiencytapping operations 0c K L Applicable workpiece range Division Carbon steel Alloy steel Quenched and tempered steel Stain- less steel Tool steel Cast steel Cast iron Ductile cast iron Copper Brass Brass- cast Bronze Rolled aluminum Aluminum- cast, alloyed Magnesium -cast, alloyed Zinc- cast, alloyed Titanium alloy Thermo- setting plastics Thermo- plastics C 0.25% C0.25% 0.45% C 0.45% SCM 25 45 HrC 45 55 HrC 50 60 HrC SUS SKD SC GC GCD Cu Bs BsC PB Al AC ADC MC ZDC Ti Ni FN30T ◎ O ◎ O ◎ PC10T ◎ O ◎ O ◎ PC20T ◎ O ◎ O ◎ Threading Jm 65
