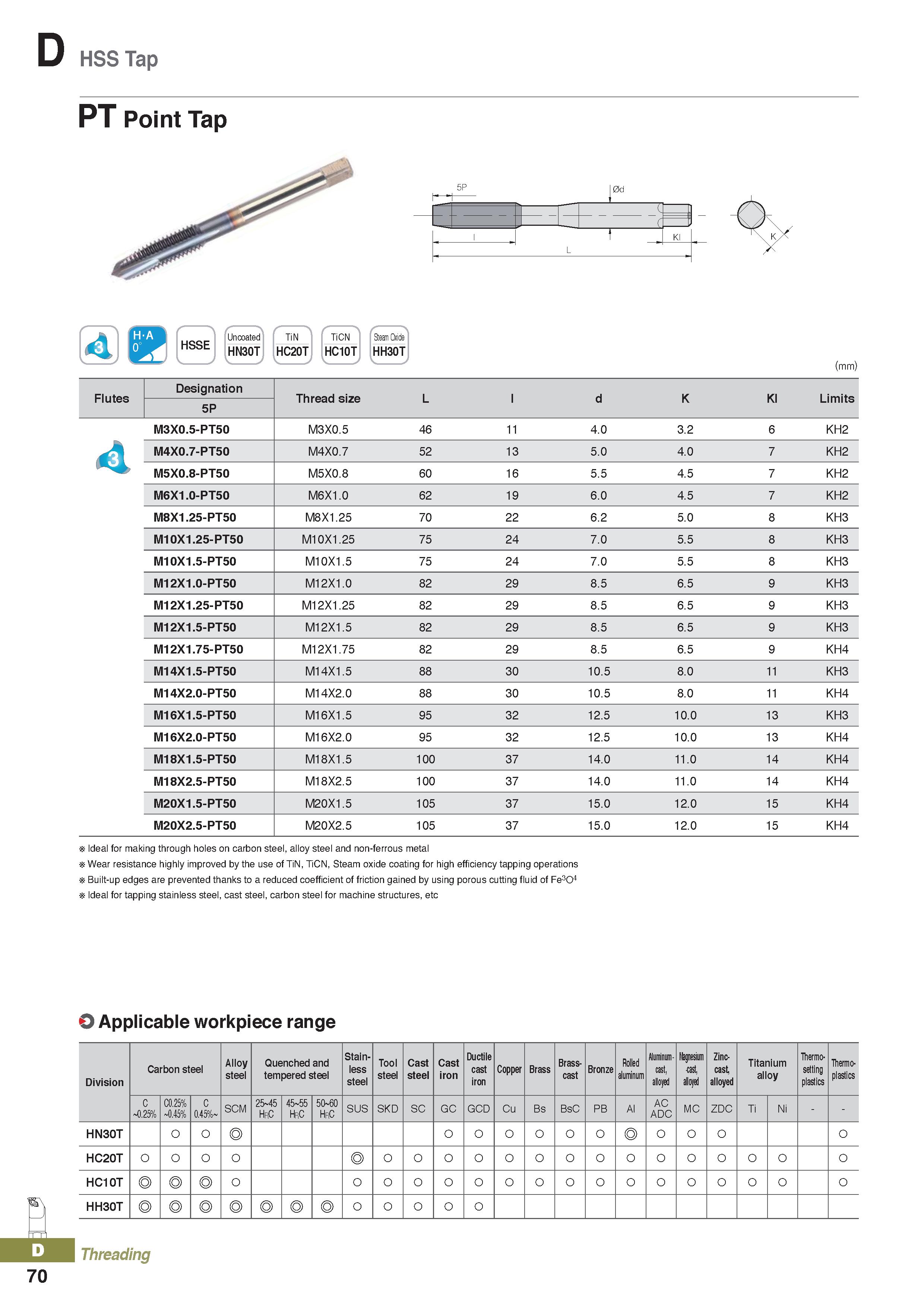

D HSS Tap f-> Steam Oxide HH30T (mm) Flutes Designation Thread size L d K Kl Limits 5P I M3X0.5-PT50 M3X0.5 46 11 4.0 3.2 6 KH2 M4X0.7-PT50 M4X0.7 52 13 5.0 4.0 7 KH2 M5X0.8-PT50 M5X0.8 60 16 5.5 4.5 7 KH2 M6X1.0-PT50 M6X1.0 62 19 6.0 4.5 7 KH2 M8X1.25-PT50 M8X1.25 70 22 6.2 5.0 8 KH3 M10X1.25-PT50 M10X1.25 75 24 7.0 5.5 8 KH3 M10X1.5-PT50 M10X1.5 75 24 7.0 5.5 8 KH3 M12X1.0-PT50 M12X1.0 82 29 8.5 6.5 9 KH3 M12X1.25-PT50 M12X1.25 82 29 8.5 6.5 9 KH3 M12X1.5-PT50 M12X1.5 82 29 8.5 6.5 9 KH3 M12X1.75-PT50 M12X1.75 82 29 8.5 6.5 9 KH4 M14X1.5-PT50 M14X1.5 88 30 10.5 8.0 11 KH3 M14X2.0-PT50 M14X2.0 88 30 10.5 8.0 11 KH4 M16X1.5-PT50 M16X1.5 95 32 12.5 10.0 13 KH3 M16X2.0-PT50 M16X2.0 95 32 12.5 10.0 13 KH4 M18X1.5-PT50 M18X1.5 100 37 14.0 11.0 14 KH4 M18X2.5-PT50 M18X2.5 100 37 14.0 11.0 14 KH4 M20X1.5-PT50 M20X1.5 105 37 15.0 12.0 15 KH4 M20X2.5-PT50 M20X2.5 105 37 15.0 12.0 15 KH4 Ideal for making through holes on carbon steel, alloy steel and non-ferrous metal Wear resistance highly improved bythe use of TiN, TiCN, Steam oxide coating for high efficiencytapping operations Built-up edges are prevented thanks to a reduced coefficient of friction gained by using porous cutting fluid of Fe3O4 Ideal for tapping stainless steel, cast steel, carbon steel for machine structures, etc O Applicable workpiece range Division Carbon steel Alloy steel Quenched and tempered steel Stain- less steel Tool steel Cast steel Cast iron Ductile cast iron Copper Brass Brass- cast Bronze Rolled aluminum Aluminum- cast, alloyed Magnesium -cast, alloyed Zinc- cast, alloyed Titanium alloy Thermo- setting plastics Thermo- plastics C 0.25% C0.25% 0.45% C 0.45% SCM 25 45 HrC 45 55 HrC 50 60 HrC SUS SKD SC GC GCD Cu Bs BsC PB Al AC ADC MC ZDC Ti Ni HN30T ◎ ◎ HC20T ◎ O HC10T ◎ ◎ ◎ O HH30T ◎ ◎ ◎ ◎ ◎ ◎ ◎ O .L Threading 70
