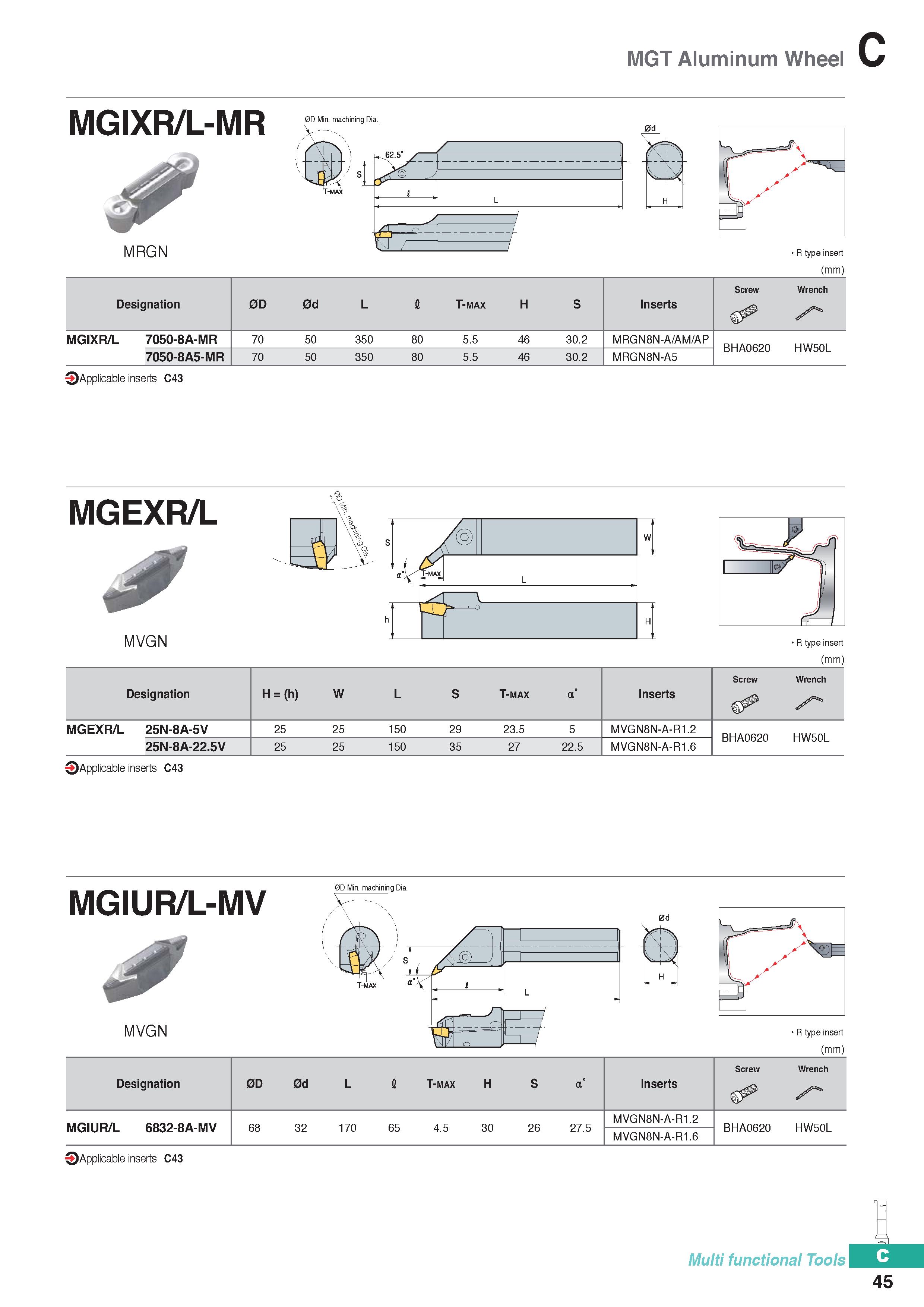

MGT Aluminum Wheel MGIXR/L-MR 0D Min. machining Dia. “1d MRGN (mm) Designation 0D 0d L I T-max H S Inserts Screw Wrench y MGIXR/L 7050-8A-MR 70 50 350 80 5.5 46 30.2 MRGN8N-A/AM/AP BHA0620 HW50L 7050-8A5-MR 70 50 350 80 5.5 46 30.2 MRGN8N-A5 QApplicable inserts C43 MGEXR/L Jf MVGN (mm) Designation H = (h) W L s T-max a" Inserts Screw Wrench y MGEXR/L 25N-8A-5V 25 25 150 29 23.5 5 MVGN8N-A-R1.2 BHA0620 HW50L 25N-8A-22.5V 25 25 150 35 27 22.5 MVGN8N-A-R1.6 0Applicable inserts C43 MGIUR/L-MV 0D Min. machining Dia. MVGN (mm) Screw Wrench Designation 0D 0d L 1 T-max H S a" Inserts MGIUR/L 6832-8A-MV 68 32 170 65 4.5 30 26 27.5 MVGN8N-A-R1.2 BHA0620 HW50L MVGN8N-A-R1.6 QApplicable inserts C43 Multi functional Tools mu 45
