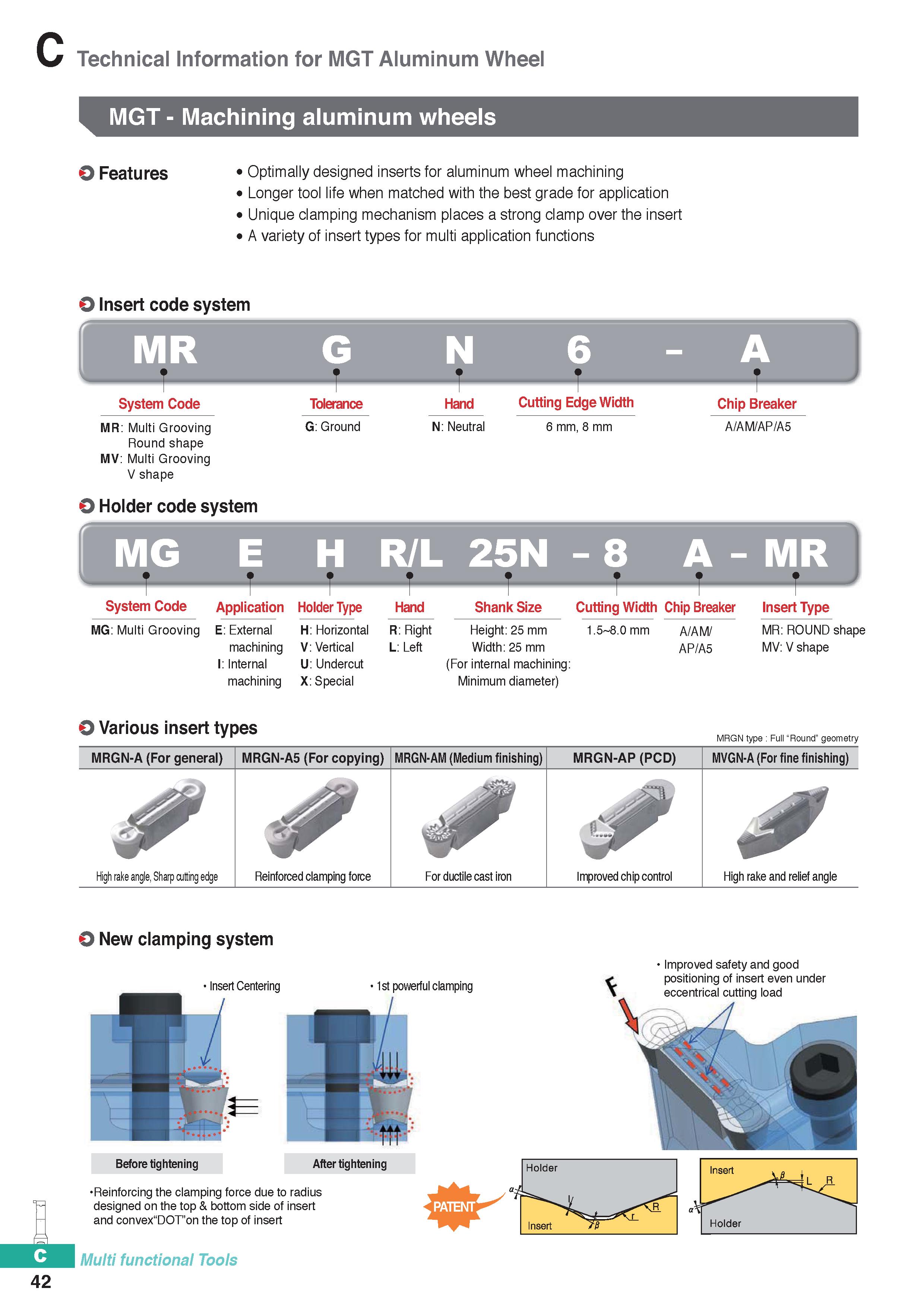

Technical Information for MGT Aluminum Wheel MGT - Machining aluminum wheels Features Optimally designed inserts for aluminum wheel machining Longer tool life when matched with the best grade for application Unique clamping mechanism places a strong clamp over the insert A variety of insert types for multi application functions O Insert code system System Code MR: Multi Grooving Round shape MV: Multi Grooving V shape Tolerance G: Ground Hand N: Neutral Cutting Edge Width 6 mm, 8 mm Chip Breaker A/AM/AP/A5 O Holder code system MG E H R/L 25N - 8 A - MR WA System Code Application Holder Type Hand Shank Size CuttingWidth ChipBreaker Insert Type MG: Multi Grooving E: External machining 1: Internal machining H: Horizontal V: Vertical U: Undercut X: Special R: Right L: Left Height: 25 mm Width: 25 mm (For internal machining: Minimum diameter) 1.5 8.0 mm A/AM/ AP/A5 MR: ROUND shapi MV: V shape O Various insert types MRGN type : Full “Round" geometry MRGN-A (For general) MRGN-A5 (For copying) MRGN-AM (Medium finishing) MRGN-AP (PCD) MVGN-A (For fine finishing) & High rake angle, Sharp cutting edge Reinforced clamping force For ductile cast iron Improved chip control 0 High rake and relief angle O New clamping system Insert Centering 1st powerful clamping Beforetightening Aftertightening mm Reinforcing the clamping force due to radius designed on the top & bottom side of insert and convex“DOT"on the top of insert Multi functional Tools Improved safety and good positioning of insert even under eccentrical cutting load Holder a\ Insert 42
