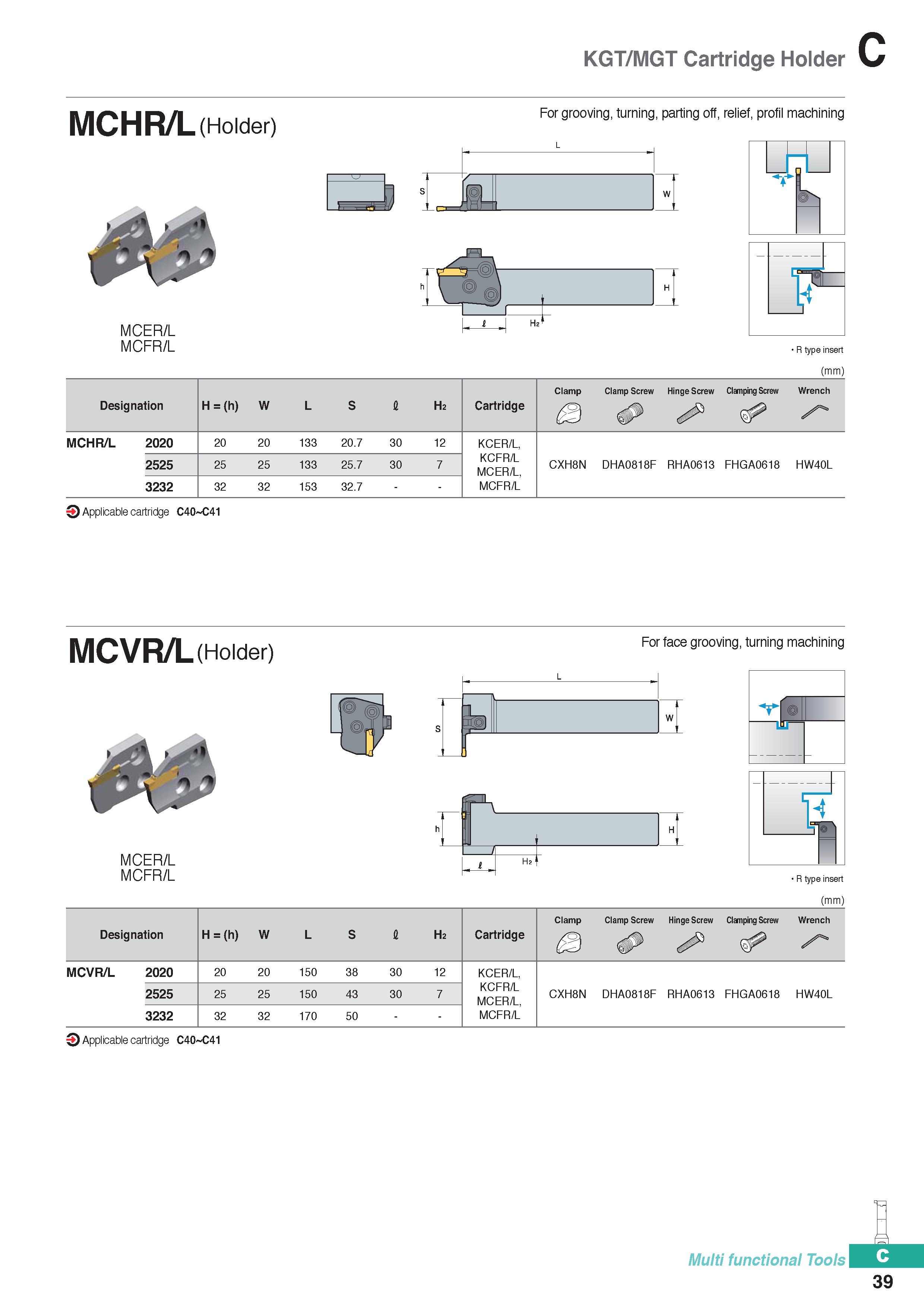

KGT/MGT Cartridge Holder MCHR/L (Holder) MCER/L MCFR/L For grooving, turning, parting off, relief, profil machining JHL J. ))\ (O) i H H (mm) Designation H = (h) W L s I H2 Cartridge Clamp a Clamp Screw Hinge Screw Clamping Screw Wrench MCHR/L 2020 20 20 133 20.7 30 12 KCER/L, 2525 25 25 133 25.7 30 7 KCFR/L MCER/L, MCFR/L CXH8N DHA0818F RHA0613 FHGA0618 HW40L 3232 32 32 153 32.7 Applicable cartridge C40 C41 MCVR/L (Holder) MCER/L MCFR/L r For face grooving, turning machining (mm) Designation H = (h) W L s I H2 Cartridge Clamp Clamp Screw Hinge Screw Clamping Screw Wrench MCVR/L 2020 20 20 150 38 30 12 KCER/L, 2525 25 25 150 43 30 7 KCFR/L MCER/L, MCFR/L CXH8N DHA0818F RHA0613 FHGA0618 HW40L 3232 32 32 170 50 o Applicable cartridge C40 C41 Multi functional Tools mu 39
