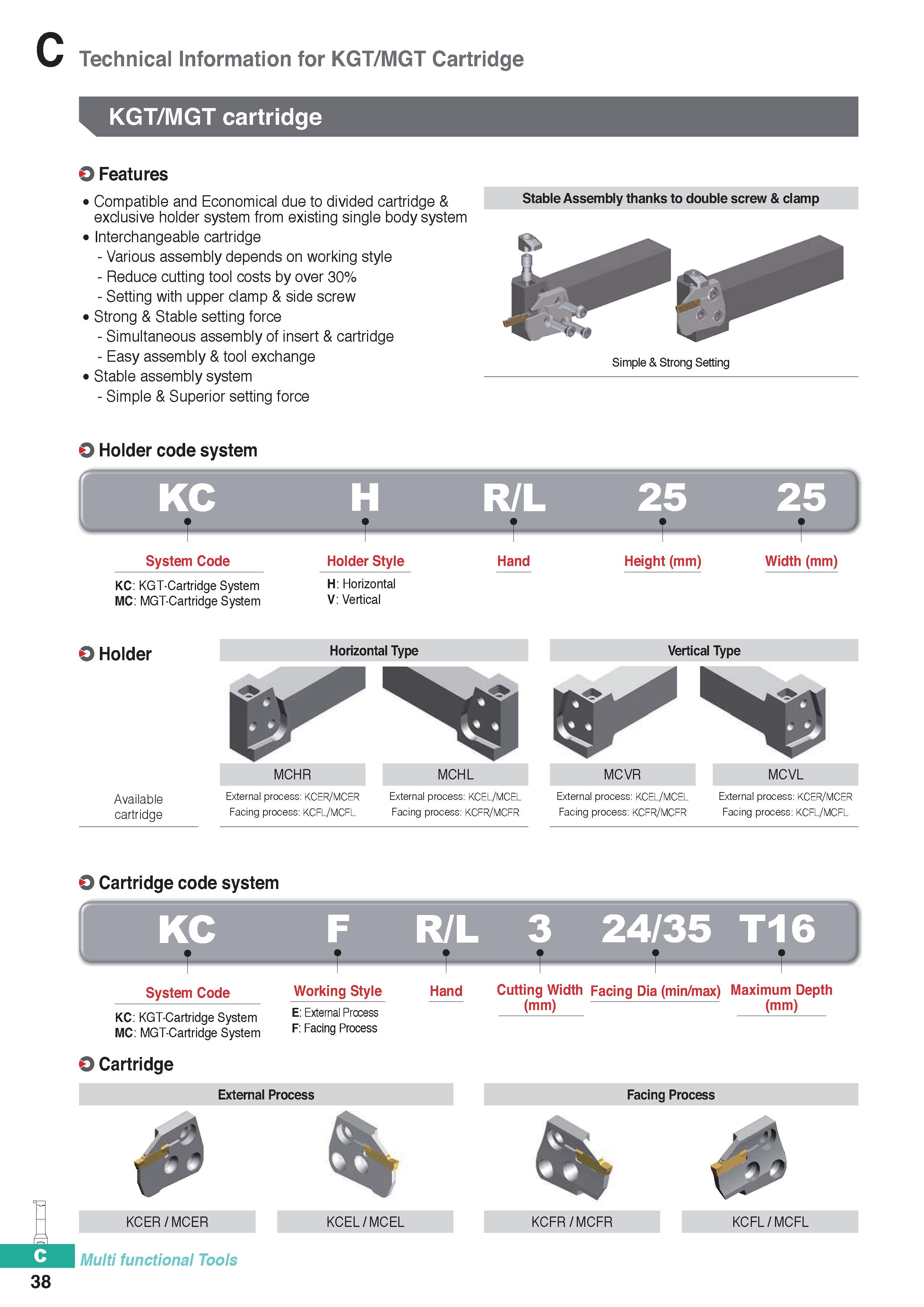

Technical Information for KGT/MGT Cartridge KGT/MGT cartridge O Features Compatible and Economical due to divided cartridge & exclusive holder system from existing single body system Interchangeable cartridge - Various assembly depends on working style - Reduce cutting tool costs by over 30% - Setting with upper clamp & side screw Strong & Stable setting force - Simultaneous assembly of insert & cartridge - Easy assembly & tool exchange Stable assembly system - Simple & Superior setting force Stable Assembly thanks to double screw & clamp Simple & Strong Setting O Holder code system KC R/L 25 25 System Code KC: KGT-Cartridge System MC: MGT-Cartridge System Holder Style H: Horizontal V: Vertical Hand Height (mm) Width (mm) O Holder Horizontal Type Vertical Type MCHR MCHL MCVR MCVL Available cartridge External process: KCER/MCER Facing process: KCFL/MCFL External process: KCEL/MCEL Facing process: KCFR/MCFR External process: KCEL/MCEL Facing process: KCFR/MCFR External process: KCER/MCER Facing process: KCFL/MCFL 0 Cartridge code system KC 1 F R/L 3 24/35 T16 j System Code KC: KGT-Cartridge System MC: MGT-Cartridge System Working Style E: External Process F: Facing Process Hand O Cartridge External Process uCu Multi functional Tools 38 Cutting Width Facing Dia (min/max) Maximum Depth (mm) (mm) Facing Process - KCER/MCER KCEL/MCEL KCFR/MCFR KCFL / MCFL
