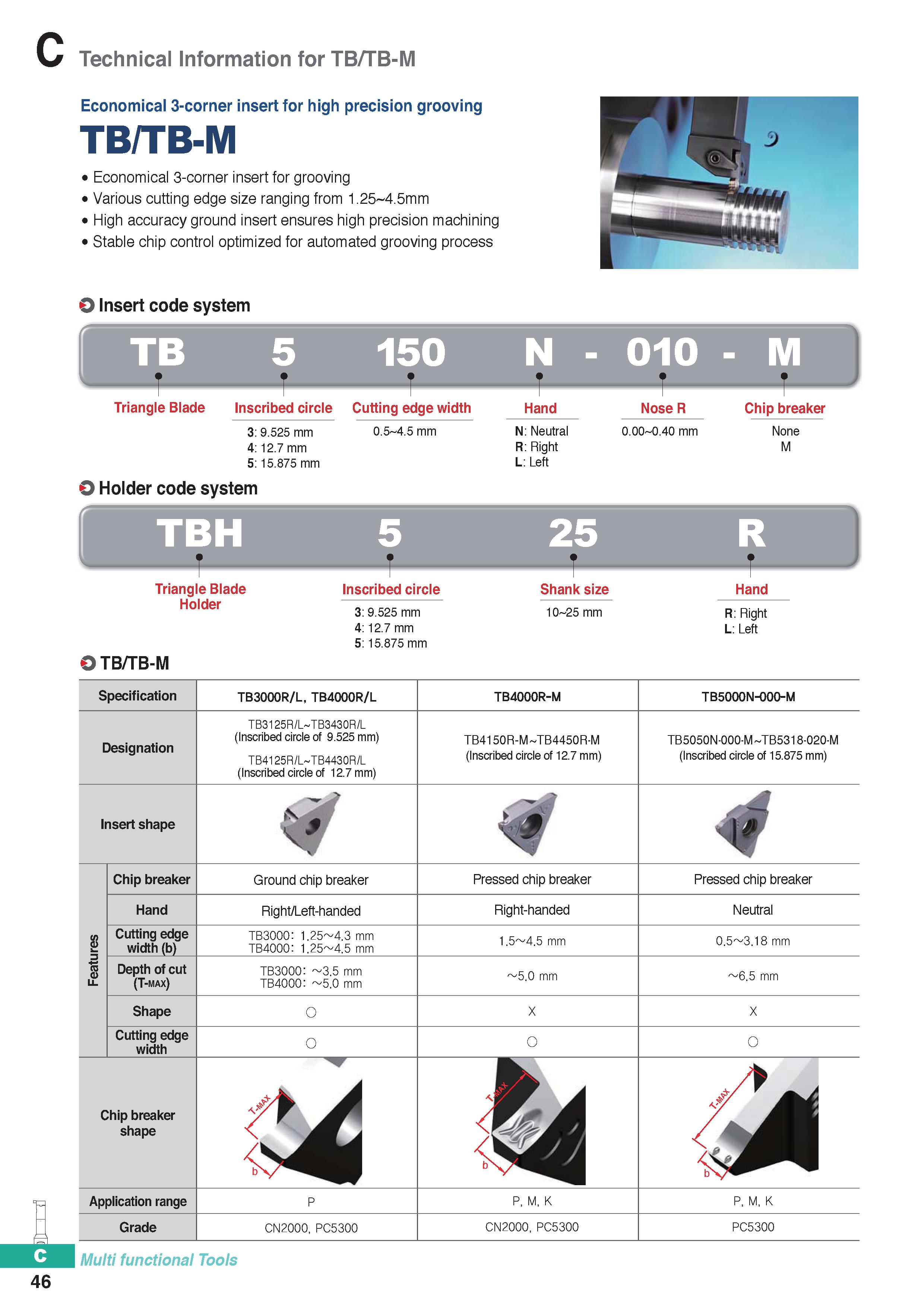

Technical Information for TB/TB-M 46 Economical 3-corner insert for high precision grooving TB/TB-M Economical 3-corner insert for grooving Various cutting edge size ranging from 1.25 4.5mm High accuracy ground insert ensures high precision machining Stable chip control optimized for automated grooving process O Insert code system TB T T 3: 9.525 mm 4: 12.7 mm 5: 15.875 mm O Holder code system TBH 150 Triangle Blade Inscribed circle T Cutting edge width 0.5 4.5 mm N - 010 - Hand N: Neutral R: Right L: Left 25 Nose R 0.00 0.40 mm T Chip breaker None M Triangle Blade Holder O TB/TB-M Inscribed circle 3: 9.525 mm 4: 12.7 mm 5: 15.875 mm Shank size 10 25 mm Hand R: Right L: Left Specification TB3000R/L, TB4000R/L TB4000R-M TB5000N-000-M Designation TB3125R/L TB3430R/L (Inscribed circle of 9.525 mm) TB4125R/L TB4430R/L (Inscribed circle of 12.7 mm) TB4150R-M TB4450R-M (Inscribed circle of 12.7 mm) TB5050N-000-M TB5318-020-M (Inscribed circle of 15.875 mm) Insert shape Chip breaker Ground chip breaker Pressed chip breaker Pressed chip breaker Hand Right/Left-handed Right-handed Neutral Cutting edge width (b) TB3000: 1.25 4.3 mm TB4000: 1.25 4.5 mm 1.5 4.5 mm 0.5 3.18 mm Depth of cut (T-max) TB3000: 3.5 mm TB4000: 5.0 mm 5.0 mm 6.5 mm Shape O Cutting edge width Chip breaker shape O Application range P, M, K P, M, K Grade CN2000, PC5300 CN2000, PC5300 PC5300 Multi functional Tools 5 P
