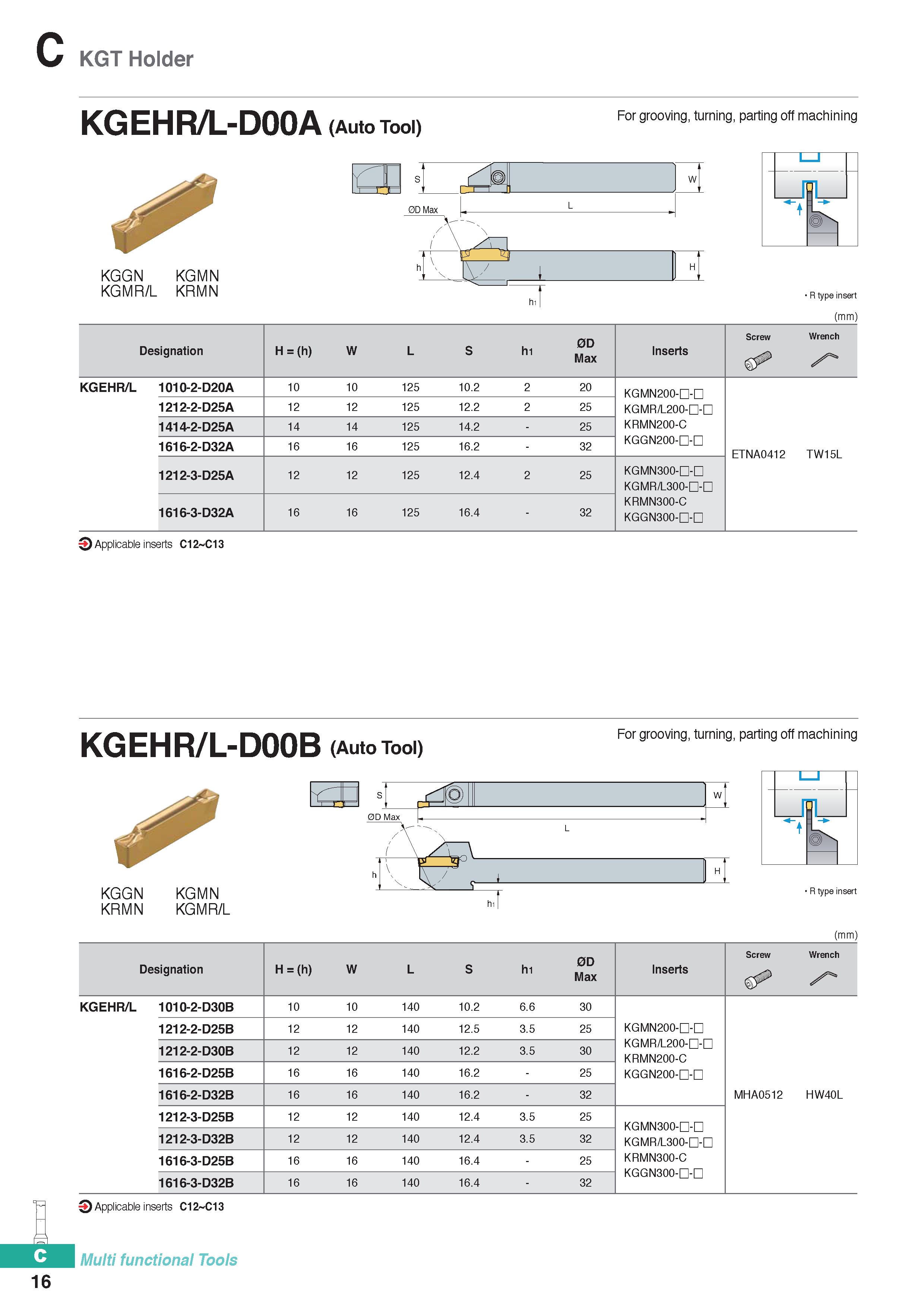

KGT Holder 16 KGEHR/L-DOOA (Auto Tool) For grooving, turning, parting off machining KGGN KGMN KG M R/L KRMN R type insert (mm) 0D Max Screw Wrench Designation H = (h) W L s hi Inserts KGEHR/L 1010-2-D20A 10 10 125 10.2 2 20 KGMN200-QD KGMR/L200-D-D 1212-2-D25A 12 12 125 12.2 2 25 1414-2-D25A 14 14 125 14.2 - 25 KRMN200-C 1616-2-D32A 16 16 125 16.2 - 32 KGGN200-D-D ETNA0412 TW15L 1212-3-D25A 12 12 125 12.4 2 25 KGMN300-D-D KGMR/L300-QD 1616-3-D32A 16 16 125 16.4 - 32 KRMN300-C KGGN300-D-D O Applicable inserts C12 C13 KGEHR/L-DOOB (Auto Tool) For grooving, turning, parting off machining KGGN KGMN KRMN KG M R/L R type insert (mm) 0D Max Screw Wrench Designation H = (h) W L s hi Inserts KGEHR/L 1010-2-D30B 10 10 140 10.2 6.6 30 1212-2-D25B 12 12 140 12.5 3.5 25 KGMN200-D-D 1212-2-D30B 12 12 140 12.2 3.5 30 KGMR/L200-D-D KRMN200-C 1616-2-D25B 16 16 140 16.2 - 25 KGGN200-D-D 1616-2-D32B 16 16 140 16.2 - 32 MHA0512 HW40L 1212-3-D25B 12 12 140 12.4 3.5 25 KGMN300-D-D KGMR/L300-D-D 1212-3-D32B 12 12 140 12.4 3.5 32 1616-3-D25B 16 16 140 16.4 - 25 KRMN300-C KGGN300-D-D 1616-3-D32B 16 16 140 16.4 - 32 9 Applicable inserts C12 C13 Multi functional Tools
